Model
Frigidaire FPBG2278UF6
Refrigartor
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelFrigidaire
FPBG2278UF6Refrigartor
7 diagrams202 parts
Parts Sections (7)
Diagram
FREEZER DRAWER, BASKETS
Parts in FREEZER DRAWER, BASKETS
36 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 5304537408replaces 5304501270 Gasket,freezer drawer ,grey | $47.53 Part Advantage |
| 11 |  | Drawer | - |
| 18 |  | 5304536767replaces 5304501174 Handle Assembly,stainless ,w/set screws | $70.02 Part Advantage |
| 21 |  | Screw,quadrex ,#10-16 Hilo | $6.15 Part Advantage |
| 21A |  | Screw,quad hilo ,#8-18 X 0.380 | $9.89 Part Advantage |
| 21B |  | Screw,8-18 X 1/2 | $11.70 Parts Dr |
| 24 |  | Screw,truss hd quad ,#10-16 x .750 ,zinc | $6.62 Part Advantage |
| 49 |  | 5304526200replaces 5304508740 Basket,freezer drawer ,lower | $103.20 PartSelect |
| 49A | | Basket-frzr,upper | Discontinued |
| 50 |  | Clip,freezer basket | $11.24 Parts Dr |
| 51 |  | Slide Assembly,basket lower ,RH ,w/pinion | $157.29 Part Advantage |
| 51A |  | Slide Assembly,freezer basket ,upper RH | $81.99 Parts Dr |
| 51A |  | Screw,shoulder ,#10-16 type AB ,upper slides,w/was | $9.95 ApplianceParts Pro |
| 52 |  | Slide Assembly,basket lower ,LH ,w/pinion | $157.77 Part Advantage |
| 52A |  | Slide Assembly,freezer basket ,upper LH | $81.84 Parts Dr |
| 53 |  | 5303918801replaces 5304508271 Retainer,basket ,upper | $9.95 ApplianceParts Pro |
| 79 |  | 218755405replaces 218755407 Screw,set ,10-32 x 0.500 | $11.89 Part Advantage |
| 80 |  | Screw,shoulder ,#10-AB ,handle mounting | $7.79 Part Advantage |

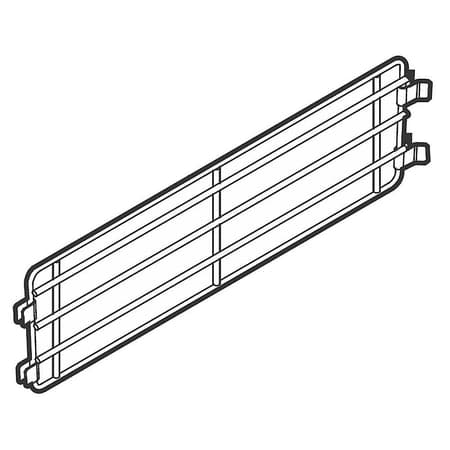

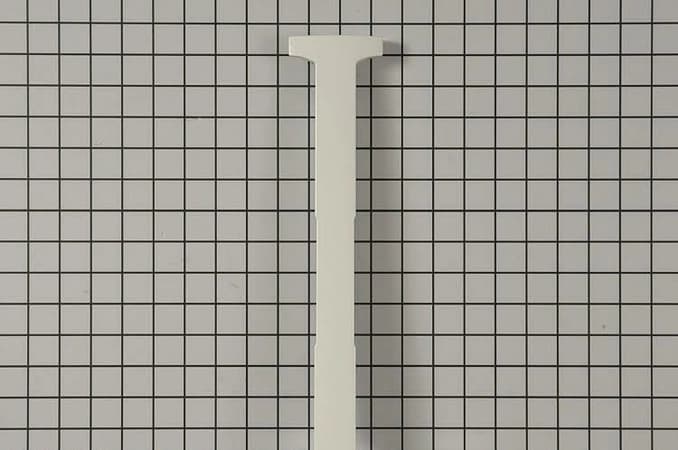

| 82 |  | Divider,lower basket | $72.45 ApplianceParts Pro |
| 84 |  | Divider,basket ,upper | - |
| 85 |  | Divider,basket ,lower | - |
| 85A |  | Beam,support ,divider ,lower basket | $47.69 Parts Dr |
| 86 |  | Trim,drawer ,stabilizer | $30.43 Parts Dr |
| 87 |  | Pinion,gear | $9.24 ApplianceParts Pro |
| 88 |  | Rack-non-tilt out,door | $25.04 Parts Dr |
| 89 |  | Bracket,freezer drawer ,(2) | $41.83 Part Advantage |
| 90 |  | 241770705replaces 241770702 Bar,timing | $32.15 Parts Dr |
| 91 |  | Cap-door rack | - |
| 91A |  | Cap,door rack ,white | - |
| 105 |  | Trim-basket | - |
| NI |  | Screw,shoulder ,#10-16 type AB ,lower slides,w/was | $3.95 ApplianceParts Pro |
| NI | | Wrench,allen ,set screw | $12.95 ApplianceParts Pro |
| NI | | Spring-compression,divider ,lower basket | $7.33 RepairClinic |
| NI |  | Pin-lock | $11.47 ApplianceParts Pro |
| NI |  | Bumper,rubber ,white ,upper basket | $16.95 ApplianceParts Pro |
| NI |  | Screw,ser hex wash hd ,1/4-20 x 5/8 ,(4) | $8.25 Part Advantage |
