Model
Frigidaire FPGF3077QFL
Gas Range
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelFrigidaire
FPGF3077QFLGas Range
5 diagrams183 parts

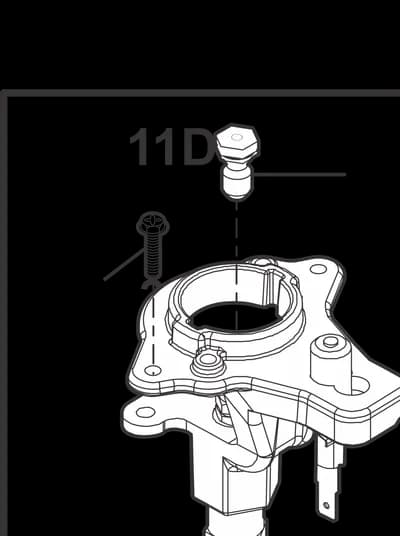

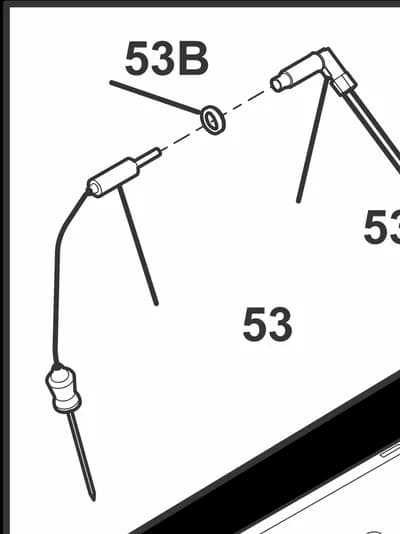

Parts Sections (5)
Diagram
BACKGUARD
Parts in BACKGUARD
21 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | Shield,backguard ,rear wall | - |
| 2 |  | Shield,backguard ,inner | - |
| 10 |  | Potentiometer,oven temp | $84.77 Part Advantage |
| 11 |  | Potentiometer,oven mode | $46.34 Parts Dr |
| 15 |  | Cap,end ,black ,RH | $41.91 Parts Dr |
| 15A |  | Cap,end ,black ,LH | $24.79 RepairClinic |
| 19 |  | Panel,backguard ,stainless | $207.67 PartSelect |
| 35 |  | Shield,heat ,knob | $6.16 Part Advantage |
| 36 |  | Knob,top valve ,stainless | $84.79 Parts Dr |

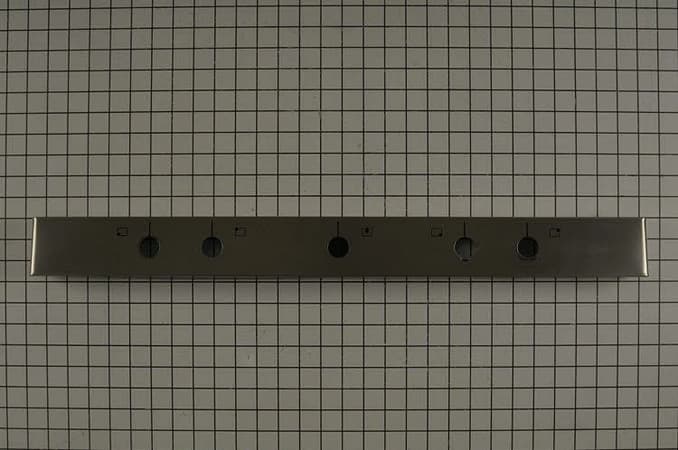

| 40 |  | Panel-manifold,stainless | - |
| 46 |  | Lens-light/lamp,indicator ,clear | $6.04 Part Advantage |
| 47 |  | Light/Lamp,indicator ,blue ,oven | $17.73 Parts Dr |
| 56 |  | Shield,backguard ,inner | $45.67 ApplianceParts Pro |
| 57 | | Deflector,backguard | - |
| 64 | | Knob,oven control ,(2) | $45.36 RepairClinic |
| 100 |  | Control Assembly,complete ,HMI | $247.53 Parts Dr |
| NI | | Harness,backguard | - |
| NI |  | Harness,wiring ,temp probe ,MDL/communicatn | - |
| NI |  | 316021109replaces 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black | $8.20 Part Advantage |
| NI |  | 131243700replaces 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome | $1.96 Part Advantage |
| NI | | Screw,8-18 x 0.5 ,chrome | $8.20 Part Advantage |
