Frigidaire GCRE306CADD
Electric Range
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelFrigidaire
GCRE306CADDElectric Range
4 diagrams135 parts
Parts Sections (4)
Diagram
BACKGUARD
Parts in BACKGUARD
26 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | Shield,backguard ,rear wall | - |
| 13A |  | Switch,infinite ,warmer | $37.45 Parts Dr |
| 14 |  | Light/Lamp,indicator ,black ,125 V | $31.81 Parts Dr |
| 15 |  | Cap,end ,black ,RH | $41.91 Parts Dr |
| 15A |  | Cap,end ,black ,LH | $24.79 RepairClinic |
| 19 |  | Panel,backguard ,black stainless | $87.62 RepairClinic |
| 20 |  | Control,electronic ,voltron | $208.24 Parts Dr |
| 28 |  | Insulation,manifold panel | - |
| 30 |  | Plug,button ,oval ,harness | - |
| 31 |  | Knob,infinite switch ,black stainless | $34.10 ApplianceParts Pro |
| 46 |  | Lens-light/lamp,indicator ,clear | $6.04 Part Advantage |
| 54 |  | Switch,infinite ,small element | $42.55 Part Advantage |
| 54A |  | 140173679014replaces 5304522918 Switch,infinite ,Radiant dual | $18.16 Part Advantage |
| 54B |  | Switch,triple ,infinite | $51.92 Part Advantage |
| 56 |  | Shield,backguard ,black ,inner | - |
| 57 | | Shield,steam | - |
| 69 |  | Screw,truss sqdr ,8-32 x 3/16 ,switch mtg | $2.70 RepairClinic |

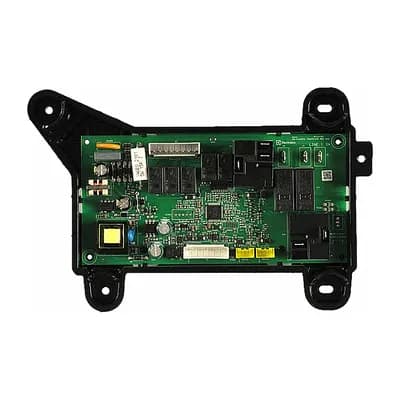

| 97 |  | Board,pc ,oven relay | $187.57 Parts Dr |
| NI | | Harness,communication | $20.18 Parts Dr |
| NI |  | Harness,electrical | - |
| NI | | Retainer,wire ,p-lock ,stick on | - |
| NI |  | 316001017replaces 316001003 Screw,ground wire | $2.77 Parts Dr |
| NI |  | 316021109replaces 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black | $8.20 Part Advantage |
| NI | | Screw,8-18 x 0.5 ,chrome | $8.20 Part Advantage |
| NI |  | Screw,10-16 x .486 | $7.79 Part Advantage |
| NI |  | Screw,truss sqdr ,8A x 1" ,62*^Screw,truss sqdr ,8A x 1" ,62* | $2.24 RepairClinic |
