Model
Electrolux GL30CAEC
Outdoor Leisure, Gas Grill
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
GL30CAECOutdoor Leisure, Gas Grill
1 diagram34 parts
Parts Sections (1)
Diagram

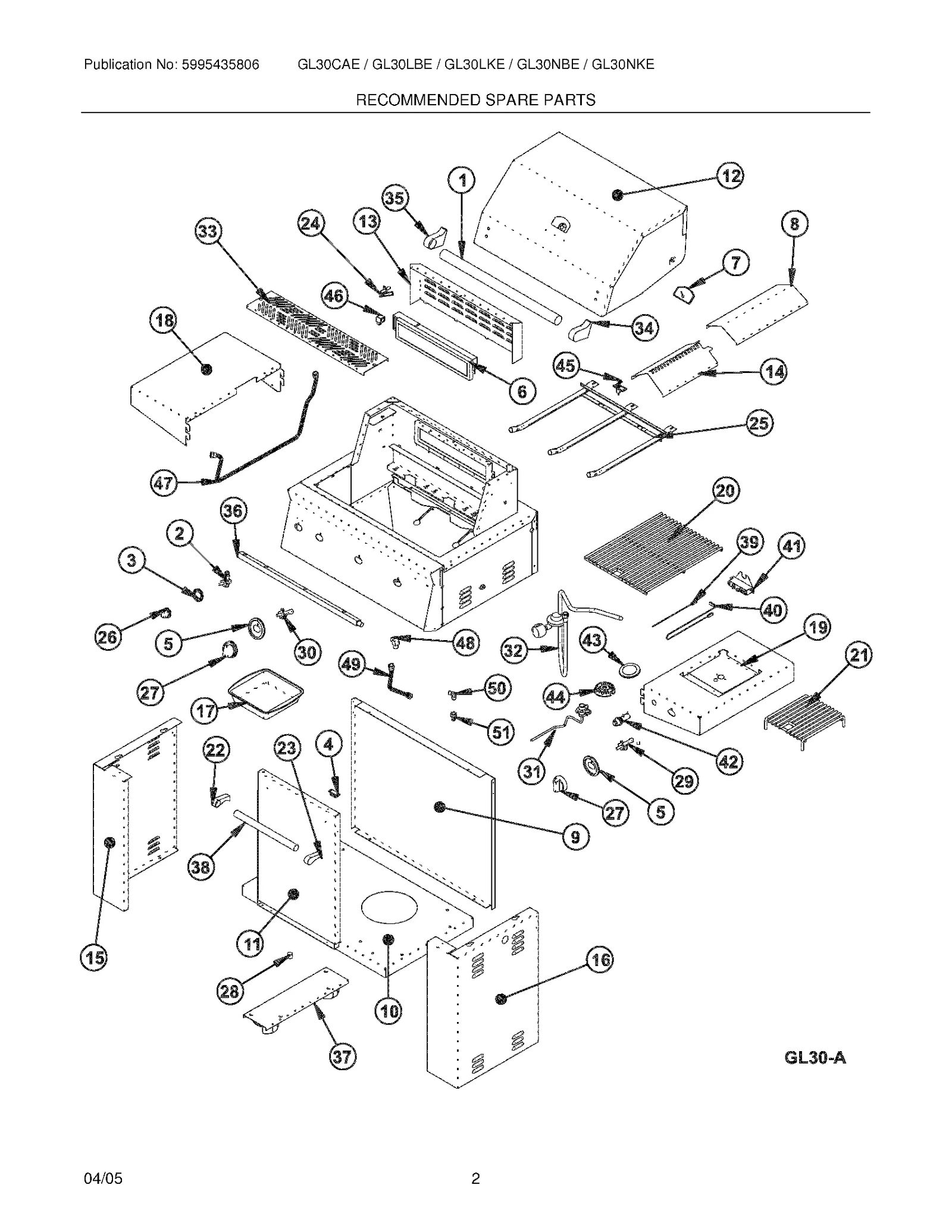

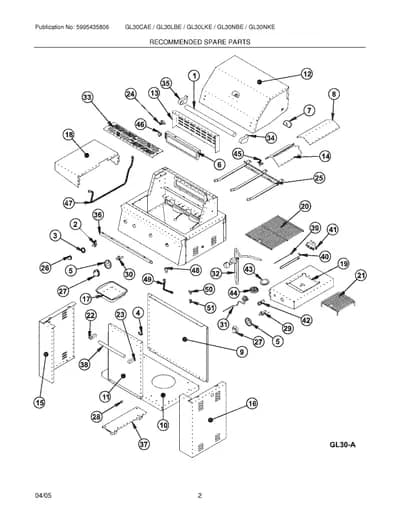

RECOMMENDED SPARE PARTS
Parts in RECOMMENDED SPARE PARTS
34 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 4 |  | 5304444391NLA Magnet,door | Discontinued |
| 5 | – | 5304444406 Bezel,knob | - |
| 9 | | Panel,cart ,back | - |
| 10 | | Base,cart | - |
| 11 | – | 5304444456 Door,cart | - |
| 15 | – | 5304444427 Panel,cart ,left side | - |
| 16 | – | 5304444416 Panel,cart ,right side | - |
| 18 | | Shelf,left side | - |
| 19 | – | 5304444401 Shelf,side burner | - |
| 21 | | Grate,side burner | - |
| 22 | – | 5304444425 Handle End,door ,left | - |
| 23 | – | 5304444426 Handle End,door ,right | - |
| 27 |  | Knob,burner | - |
| 28 | – | 5304444419 Door Stop | - |
| 29 | | Valve,burner ,side ,LP | - |
| 29 | | Valve,burner ,side ,NG | - |
| 31 | | Base,orifice ,side burner ,NG | - |
| 31 | | Base,orifice ,side burner ,LP | - |
| 37 | – | 5304444418 Channel,wheel ,swivel | - |
| 38 | – | 5304444463 Handle,door ,12.525 inch | - |
| 39 |  | Wire,igniter ,positive | - |
| 40 |  | Wire,igniter ,negative | - |
| 41 | | 5304464769replaces 5304444409 Module,ignitor spark | - |
| 42 | | Housing,igniter battery | - |
| 43 | | Cap,side burner | - |
| 44 |  | Burner Head,side burner | Discontinued |
| NI | | Tubing,burner ,side | - |
| NI | – | 5304444442 Bolt,wheel & cart | - |
| NI | | Screw,self-tapping | - |
| NI | – | 5304444446 Screw,hood handle end | - |
| NI | | 5304444695replaces 5304444467 Wire,ignitor ,side burner | - |
| NI | – | 5304444443 Nut,door ,bottom pivot | - |
| NI | – | 5304444445 Screw,bezel to valve | - |
| NI | – | 5304444444 Screw,door ,bottom pivot | - |
