Model
Electrolux GL30NBEC
Outdoor Leisure, Gas Grill
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
GL30NBECOutdoor Leisure, Gas Grill
1 diagram35 parts
Parts Sections (1)
Diagram

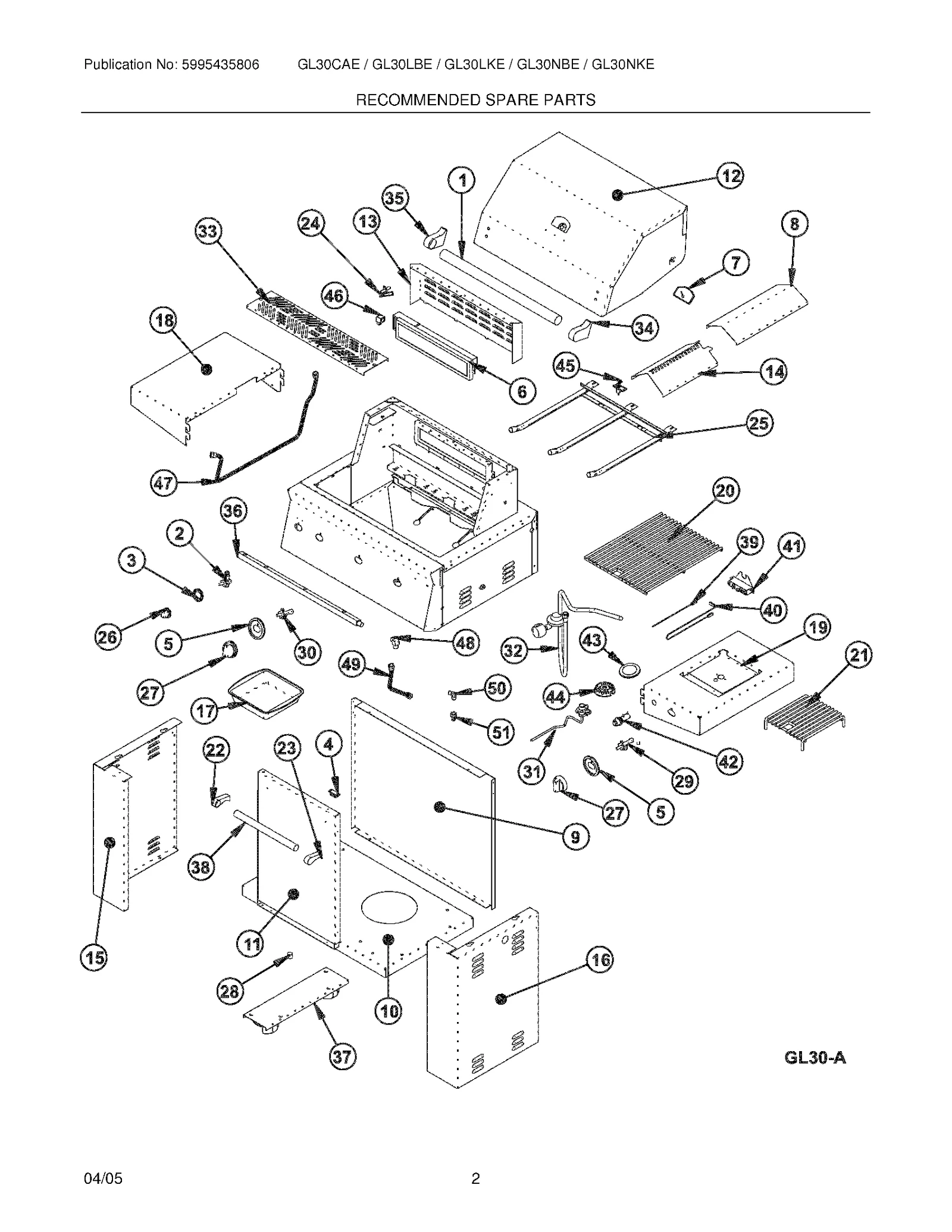

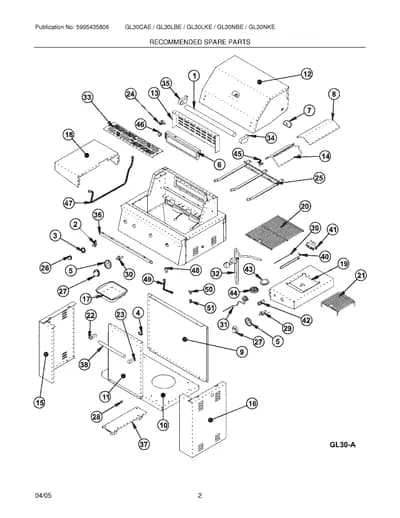

RECOMMENDED SPARE PARTS
Parts in RECOMMENDED SPARE PARTS
35 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 5304444452 Handle,hood | - |
| 2 |  | Valve,IR burner ,back ,NG | - |
| 3 | – | 5304444429 Bezel,infrared knob | - |
| 5 | – | 5304444406 Bezel,knob | - |
| 6 | | Burner,infrared ,back | - |
| 7 | | Guage,temperature | - |
| 8 |  | Flavor Grid,burner cover ,top ,angle | - |
| 12 | | Hood,grill | - |
| 13 | – | 5304444458 Cover,infrared burner | - |
| 14 |  | Flavor Grid,igniter cover ,bottom ,angle | - |
| 17 | | 5304444438NLA Tray,drip pan | Discontinued |
| 20 | | Grate,main burner | - |
| 24 |  | Electrode,infrared burner ,back | - |
| 25 |  | 5304444460NLA Burner,main ,3 cell | Discontinued |
| 26 | | Knob,infrared burner | - |
| 27 |  | Knob,burner | - |
| 30 | | Valve,burner ,main/side ,NG | - |
| 32 | | 5304444424NLA Regulator,NG | Discontinued |
| 33 | – | 5304444461 Shelf,warming rack | - |
| 34 | – | 5304444390 Handle End,hood ,right | - |
| 35 | – | 5304444388 Handle End,hood ,left | - |
| 36 | – | 5304444462 Manifold | - |
| 45 |  | Electrode,main burner | $105.95 ApplianceParts Pro |
| 46 | – | 5304447642 Elbow,NG ,IR burner rear ,with orifice | - |
| 47 | – | 5304447646 Hose,gas ,infrared burner ,rear | - |
| 48 | – | 5304447621 Elbow,gas fitting ,manifold/hose | - |
| 49 | | Hose,gas ,10`` ,main supply | - |
| 50 | | Elbow,main connection | - |
| 51 | | Fitting,main connection | - |
| NI | | 5304444451replaces 5304444465 Wire,ignitor ,LH ,main burner | - |
| NI | – | 5304444441 Bolt,valve/manifold | - |
| NI | | 5304444694replaces 5304444464 Wire,ignitor ,IR valve | - |
| NI | | Screw,self-tapping | - |
| NI | | 5304444451replaces 5304444466 Wire,ignitor ,RH ,main burner | - |
| NI | – | 5304444445 Screw,bezel to valve | - |
