Model
Electrolux GL30NKEC
Outdoor Leisure, Gas Grill
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
GL30NKECOutdoor Leisure, Gas Grill
1 diagram63 parts
Parts Sections (1)

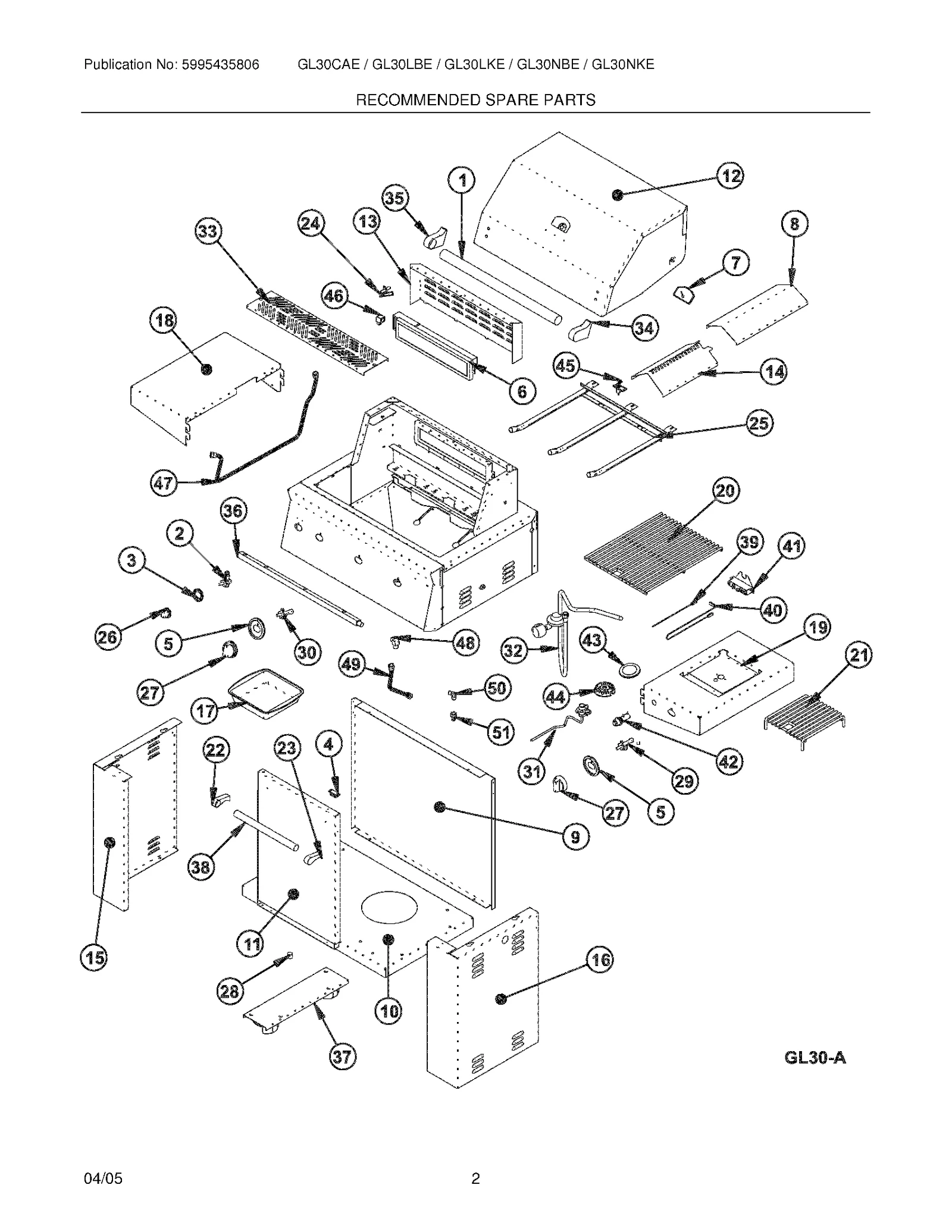

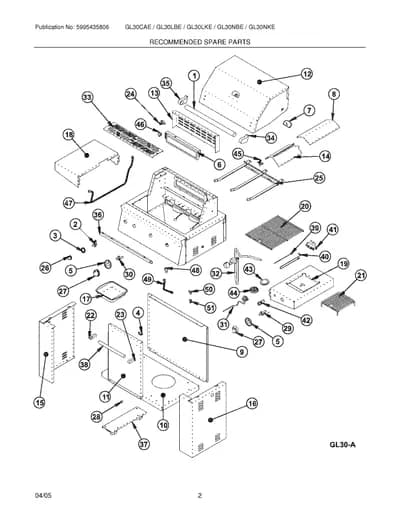

Diagram
RECOMMENDED SPARE PARTS
Parts in RECOMMENDED SPARE PARTS
63 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 5304444452 Handle,hood | - |
| 2 |  | Valve,IR burner ,back ,NG | - |
| 3 | – | 5304444429 Bezel,infrared knob | - |
| 4 | | 5304444391NLA Magnet,door | Discontinued |
| 5 | – | 5304444406 Bezel,knob | - |
| 6 | | Burner,infrared ,back | - |
| 7 | | Guage,temperature | - |
| 8 |  | Flavor Grid,burner cover ,top ,angle | - |
| 9 | | Panel,cart ,back | - |
| 10 | | Base,cart | - |
| 11 | – | 5304444456 Door,cart | - |
| 12 | | Hood,grill | - |
| 13 | – | 5304444458 Cover,infrared burner | - |
| 14 |  | Flavor Grid,igniter cover ,bottom ,angle | - |
| 15 | – | 5304444427 Panel,cart ,left side | - |
| 16 | – | 5304444416 Panel,cart ,right side | - |
| 17 | | 5304444438NLA Tray,drip pan | Discontinued |
| 18 | | Shelf,left side | - |
| 19 | – | 5304444401 Shelf,side burner | - |
| 20 | | Grate,main burner | - |
| 21 | | Grate,side burner | - |
| 22 | – | 5304444425 Handle End,door ,left | - |
| 23 | – | 5304444426 Handle End,door ,right | - |
| 24 |  | Electrode,infrared burner ,back | - |
| 25 |  | 5304444460NLA Burner,main ,3 cell | Discontinued |
| 26 | | Knob,infrared burner | - |
| 27 |  | Knob,burner | - |
| 28 | – | 5304444419 Door Stop | - |
| 29 | | Valve,burner ,side ,NG | - |
| 30 | | Valve,burner ,main/side ,NG | - |
| 31 | | Base,orifice ,side burner ,NG | - |
| 32 | | 5304444424NLA Regulator,NG | Discontinued |
| 33 | – | 5304444461 Shelf,warming rack | - |
| 34 | – | 5304444390 Handle End,hood ,right | - |
| 35 | – | 5304444388 Handle End,hood ,left | - |
| 36 | – | 5304444462 Manifold | - |
| 37 | – | 5304444418 Channel,wheel ,swivel | - |
| 38 | – | 5304444463 Handle,door ,12.525 inch | - |
| 39 |  | Wire,igniter ,positive | - |
| 40 |  | Wire,igniter ,negative | - |
| 41 | | 5304464769replaces 5304444409 Module,ignitor spark | - |
| 42 | | Housing,igniter battery | - |
| 43 | | Cap,side burner | - |
| 44 |  | Burner Head,side burner | Discontinued |
| 45 |  | Electrode,main burner | $105.95 ApplianceParts Pro |
| 46 | – | 5304447642 Elbow,NG ,IR burner rear ,with orifice | - |
| 47 | – | 5304447646 Hose,gas ,infrared burner ,rear | - |
| 48 | – | 5304447621 Elbow,gas fitting ,manifold/hose | - |
| 49 | | Hose,gas ,10`` ,main supply | - |
| 50 | | Elbow,main connection | - |
| 51 | | Fitting,main connection | - |
| NI | | 5304444694replaces 5304444464 Wire,ignitor ,IR valve | - |
| NI | – | 5304444445 Screw,bezel to valve | - |
| NI | – | 5304444443 Nut,door ,bottom pivot | - |
| NI | | Tubing,burner ,side | - |
| NI | | 5304444695replaces 5304444467 Wire,ignitor ,side burner | - |
| NI | – | 5304444442 Bolt,wheel & cart | - |
| NI | | 5304444451replaces 5304444465 Wire,ignitor ,LH ,main burner | - |
| NI | | Screw,self-tapping | - |
| NI | – | 5304444444 Screw,door ,bottom pivot | - |
| NI | | 5304444451replaces 5304444466 Wire,ignitor ,RH ,main burner | - |
| NI | – | 5304444441 Bolt,valve/manifold | - |
| NI | – | 5304444446 Screw,hood handle end | - |
