Model
Universal GTL175BH1
Refrigerator, Top Mount
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelUniversal
GTL175BH1Refrigerator, Top Mount
4 diagrams138 parts
Parts Sections (4)
Diagram

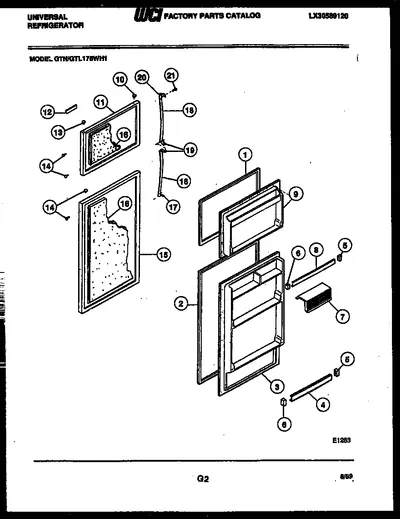

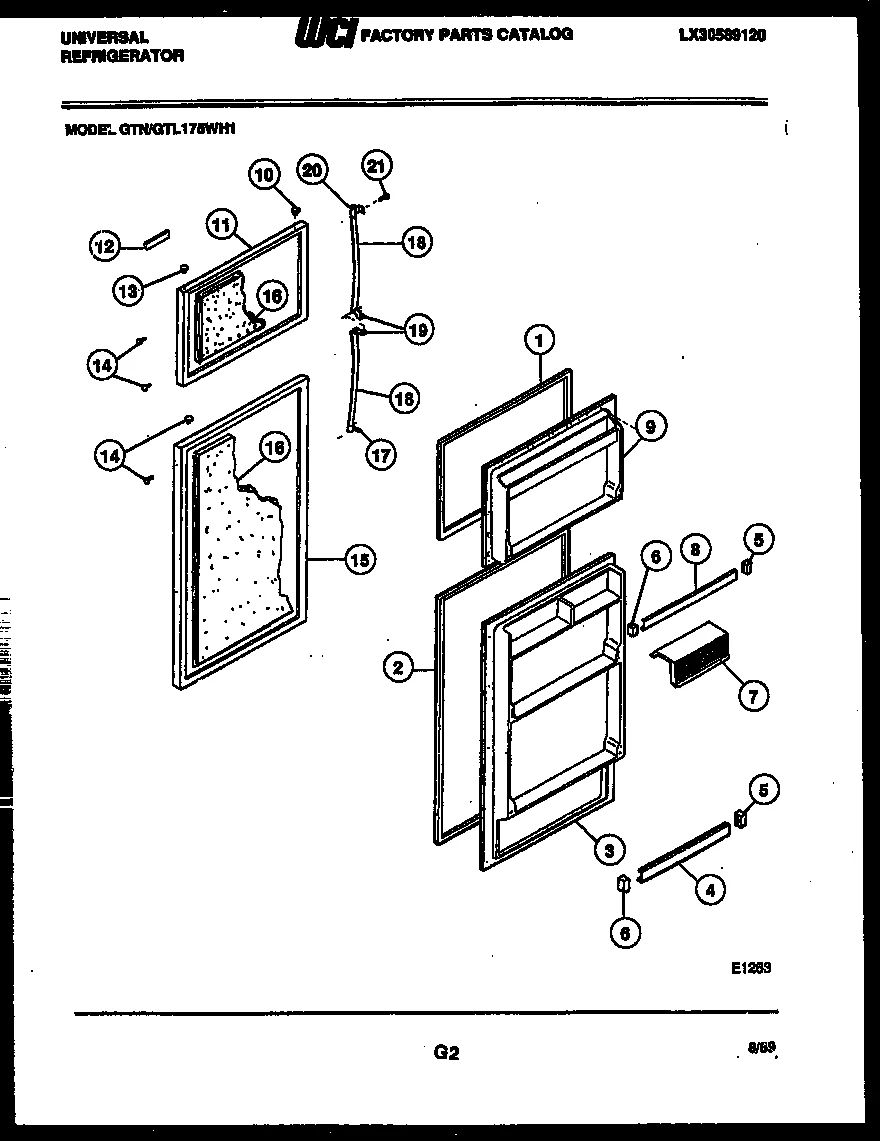

DOOR PARTS
Parts in DOOR PARTS
25 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | GSK. DOOR UPPER (BEIGE) | Discontinued |
| 2 |  | 218730603replaces 3001517 GASKET-REFRIGERATOR | $30.97 Part Advantage |
| 3 | – | 3001516 INNER PANEL REFRIGERATOR | - |
| 3A |  | 218843801replaces 3001001 SCREW-PANEL MOUNTING (34) (NON-ILLUSTRATED) | - |
| 4 | – | 3001515 RACK-REFRIGERATOR DOOR (2) | - |
| 5 | – | 3001410 SUPPORT DOOR RACK RH (4) | - |
| 6 |  | 5303007297replaces 3001411 SUPPORT DOOR RACK LH (4) | $24.36 RepairClinic |
| 7 | – | 3001314 DOOR, BUTTER | - |
| 8 | – | 3001511 RACK-FREEZER DOOR | - |
| 9 | – | 3001512 INNER PANEL-FREEZER | - |
| 9A | | 218843801replaces 3001001 SCREW-PANEL MOUNTING (34) (NON-ILLUSTRATED) | - |
| 10 | – | G169332-11 BUTTON PLUG, ALMOND | - |
| 11 | – | G185599-11 FREEZER DOOR-ALMOND | - |
| 12 | – | G171161-01 FRAME-NAMEPLATE | - |
| 13 |  | HINGE BEARING-LOWER (NON-ILLUSTRATED) | Discontinued |
| 14 | | 240494004replaces G162977-11 BUTTON PLUG-ALMOND | - |
| 15 | – | G185600-11 REFRIGERATOR DOOR-ALMOND | - |
| 15A |  | 5308000255replaces 08000255 STOP-DOOR (2) (NON-ILLUSTRATED) | - |
| 15B | | 5308011745replaces G185566 SCREW | - |
| 16 | | INSULATION-DOOR (BULK) (NON-ILLUSTRATED) | Discontinued |
| 17 | – | G179801 END - REFRIGERATOR HANDLE BOTTOM | - |
| 18 | | HANDLE-DOOR, (2) | - |
| 19 | | 3001296replaces G187329-01 END-FRZR HNDL BTM | - |
| 20 | – | G179800 END - FREEZER HANDLE TOP | - |
| 21 | | 5308011745replaces G185566 SCREW | - |
