Model
Universal GTLI181WL0
Refrigerator, Top Mount W/Ice Maker
Parts Sections (8)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelUniversal
GTLI181WL0Refrigerator, Top Mount W/Ice Maker
8 diagrams192 parts
Parts Sections (8)
Diagram

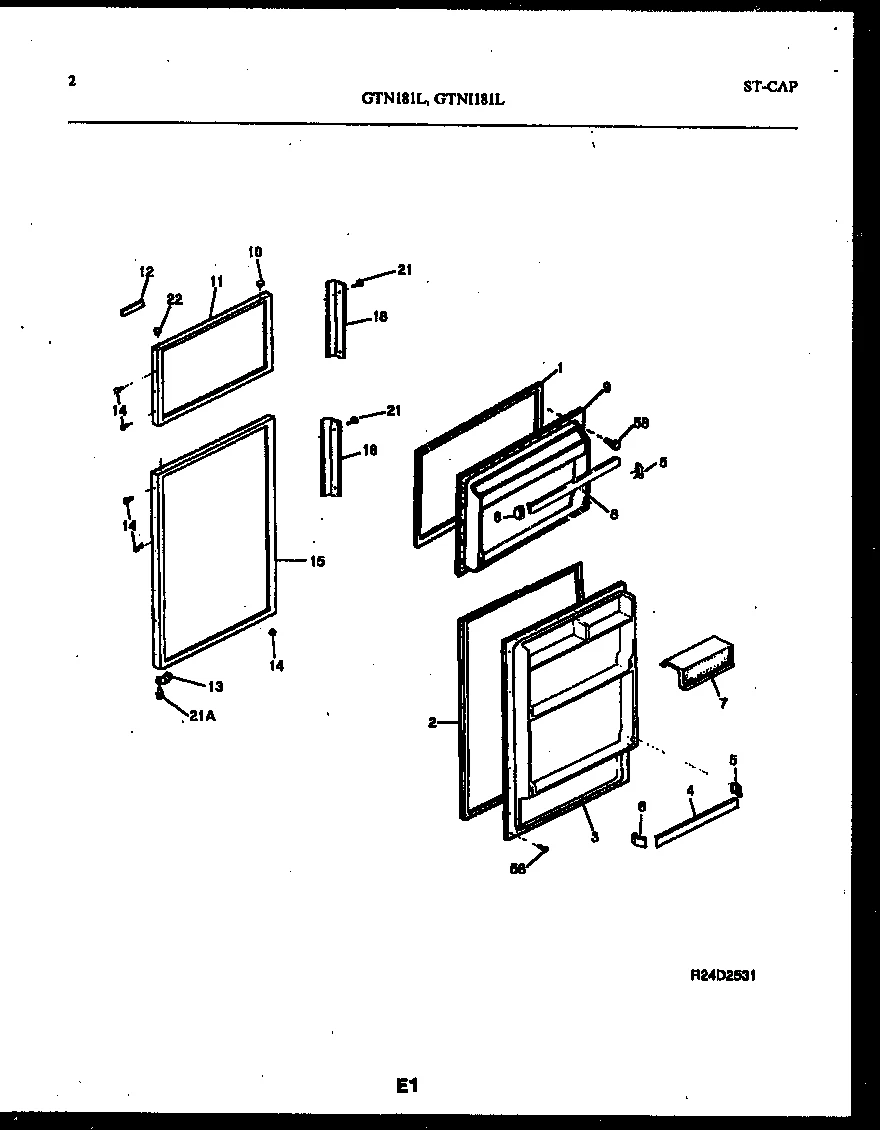

DOOR PARTS
Parts in DOOR PARTS
22 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 5303018791NLA GASKET-FRZR DOOR, MAGNETIC, WHITE | Discontinued |
| 2 |  | 218730609replaces 5303018792 GASKET-REFR DOOR, MAGNETIC, WHITE | - |
| 3 |  | PANEL-INNER DOOR, REFR | - |
| 4 | – | 5303273198 RACK-DOOR, REFR SECTION, (2) | - |
| 5 |  | 5317828701NLA SUPPORT-DOOR RACK, RH, (3) | Discontinued |
| 6 |  | SUPPORT-DOOR RACK, LH, (3) | - |
| 7 | – | 5316177640 DOOR-DAIRY | - |
| 8 | – | 5303273197 RACK-DOOR, FRZR SECTION | - |
| 9 | – | 5318350601 PANEL-INNER DOOR, FRZR | - |
| 10 | | 5308000134NLA PLUG, BUTTON, HINGE BEARING HOLE, WHITE | Discontinued |
| 11 | – | 3916392 PANEL-FRZR DOOR, WHITE | - |
| 12 | – | 5303276130 NAMEPLATE FRAME ASSY, W/ TAPE | - |
| 13 | | STOP-REFRIGERATOR DOOR (1) (NON-ILLUSTRATED) | - |
| 13A |  | DOOR STOP, REFR/FRZR, (2) (NON-ILLUSTRATED) | - |
| 14 |  | 240494001replaces 5308000090 BUTTON-PLUG (8)-WHITE (NON-ILLUSTRATED) | $9.83 Part Advantage |
| 15 | | PANEL-REFR DOOR, WHITE, W/ INSULATION, & CROSS BRACE | - |
| 18 | | 215164904NLA HANDLE - DOOR, 8`` LONG, BLACK VINYL | Discontinued |
| 21 | | SCREW, HANDLE MOUNTING, 8 CR TRUSS HEAD, 10(D) X 1/2 | - |
| 21A | | SCREW | - |
| 22 | | 5308012007NLA HINGE BEARING - LOWER (NON-ILLUSTRATED) | Discontinued |
| 58 |  | 5304455651replaces 5308002748 SCREW | $7.77 Part Advantage |
| *63826 | | INSULATION-DOOR, FIBERGLASS, (BULK) (USE DOOR DYKE INSUL | Discontinued |
