Model
Universal GTN140WGW3-00
Refrigerator, Top Mount
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelUniversal
GTN140WGW3-00Refrigerator, Top Mount
4 diagrams166 parts
Parts Sections (4)
Diagram

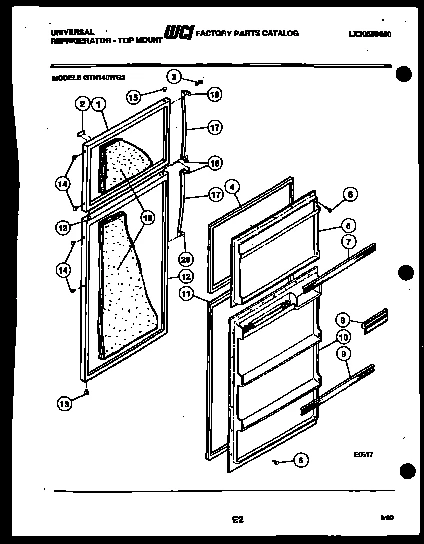

DOOR PARTS
Parts in DOOR PARTS
38 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | G186221-08 FREEZER DOOR-AVOCADO | - |
| 1 | – | G186221 FREEZER DOOR-WHITE | - |
| 1 | – | G186221-09 FREEZER DOOR-WHEAT | - |
| 1 | – | G186221-10 FREEZER DOOR-COFFEE | - |
| 1 | – | G186221-11 FREEZER DOOR-ALMOND | - |
| 2 | – | G171161-01 FRAME-NAMEPLATE | - |
| 2 |  | TAPE-NAMEPLATE MOUNTING (NON-ILLUSTRATED) | Discontinued |
| 3 | | 5308011745replaces G185566 SCREW | - |
| 4 |  | GASKET, FREEZER DOOR | Discontinued |
| 5 | – | 3001528 INNER PANEL-FREEZER | - |
| 6 |  | 5304455651replaces G162585 SCREW | $7.77 Part Advantage |
| 7 | – | 3001511 RACK-FREEZER DOOR | - |
| 8 | – | 3001538 BUTTER DOOR | - |
| 9 | – | 3001539 DOOR RACK-REFRIGERATOR (2) | - |
| 10 | | 5317839402replaces 3001540 INNER PANEL-REFRIGERATOR | - |
| 11 | – | G186932-02 GASKET-REFRIGERATOR DOOR | - |
| 12 | – | G186234 REFRIGERATOR DOOR-WHITE | - |
| 12 | – | G186234-08 REFRIGERATOR DOOR-AVOCADO | - |
| 12 | – | G186234-10 REFRIGERATOR DOOR-COFFEE | - |
| 12 | – | G186234-11 REFRIGERATOR DOOR-ALMOND | - |
| 12 | – | G186234-09 REFRIGERATOR DOOR-WHEAT | - |
| 13 | | HINGE BEARING-LOWER (NON-ILLUSTRATED) | Discontinued |
| 14 | – | G162977-09 BUTTON PLUG-WHEAT | - |
| 14 | – | G162977-10 BUTTON PLUG-COFFEE | - |
| 14 |  | 240494001replaces G162977-01 BUTTON PLUG-WHITE | $9.83 Part Advantage |
| 14 | – | G162977-08 BUTTON PLUG-AVOCADO | - |
| 14 | | 240494004replaces G162977-11 BUTTON PLUG-ALMOND | - |
| 15 | – | G169332-11 BUTTON PLUG, ALMOND | - |
| 15 | – | G169332-10 BUTTON-PLUG, COFFEE | - |
| 15 | | BUTTON PLUG, WHITE | Discontinued |
| 15 | – | G169332-08 BUTTON PLUG-AVOCADO | - |
| 15 | – | G169332-09 BUTTON PLUG, WHEAT | - |
| 16 | | INSULATION-DOOR (BULK) (NON-ILLUSTRATED) | Discontinued |
| 17 | | HANDLE-DOOR, (2) | - |
| 18 |  | 5303001296replaces G187329-01 END-FRZR HNDL BTM | - |
| 19 | – | G179800 END - FREEZER HANDLE TOP | - |
| 20 | – | G179801 END - REFRIGERATOR HANDLE BOTTOM | - |
| *12175 | | 5308011745replaces G185566 SCREW | - |
