Model
Universal GTN142WK3
Refrigerator, Top Mount
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelUniversal
GTN142WK3Refrigerator, Top Mount
7 diagrams138 parts
Parts Sections (7)
Diagram

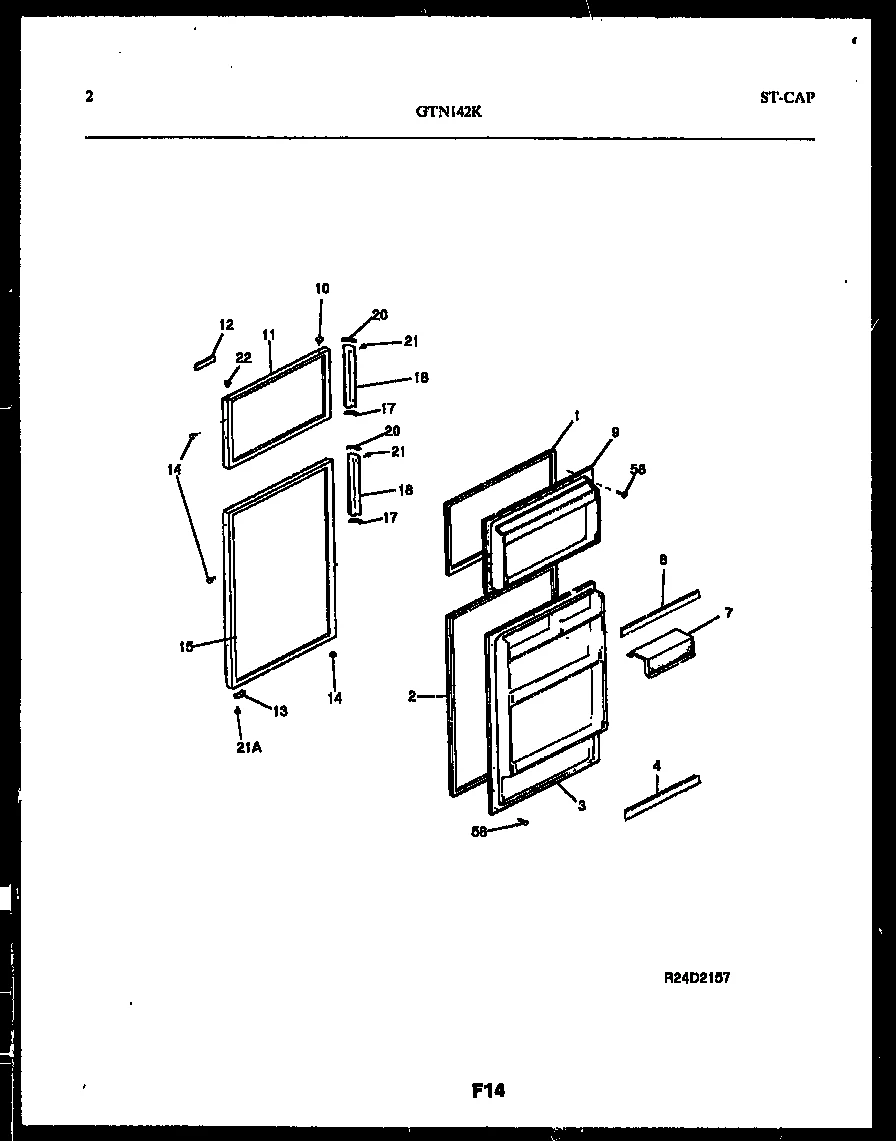

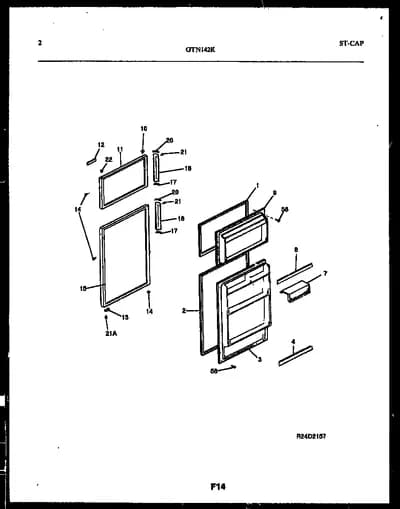

DOOR PARTS
Parts in DOOR PARTS
21 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | GASKET, FRZR DOOR, BROWN, MAGNETIC | Discontinued |
| 2 | – | 5303001317 GASKET-REFR DOOR, MAGNETIC | - |
| 3 |  | PANEL-INNER DOOR, REFR | - |
| 4 | – | 5303276972 RACK-DOOR, (2) | - |
| 7 | – | 5303276909 DOOR-DAIRY | - |
| 8 | – | 5303276971 RACK-DOOR | - |
| 9 | | PANEL-INNER DOOR, FRZR | - |
| 10 | | 5308000134NLA PLUG, BUTTON, HINGE BEARING HOLE, WHITE | Discontinued |
| 11 | – | 3916042 PANEL-FRZR DOOR, WHITE | - |
| 12 | – | 5303276130 NAMEPLATE FRAME ASSY, W/ TAPE | - |
| 13 |  | DOOR STOP, REFR/FRZR, (2) (NON-ILLUSTRATED) | - |
| 14 |  | 240494001replaces 5308000090 BUTTON-PLUG (8)-WHITE (NON-ILLUSTRATED) | $9.83 Part Advantage |
| 15 | – | 3916047 PANEL-REFR DOOR, WHITE | - |
| 17 | | 5308010238NLA END CAP-BOTTOM (2) | Discontinued |
| 18 | | 5308009875NLA HANDLE, DOOR, TEAKWOOD VINYL, REFRIGERATOR/FREEZER (2) | Discontinued |
| 20 | | CAP-HANDLE END (2) | - |
| 21 | | SCREW, HANDLE MOUNTING, 8 CR TRUSS HEAD, 10(D) X 1/2 | - |
| 21A | | SCREW | - |
| 22 | | 5308012007NLA HINGE BEARING - LOWER (NON-ILLUSTRATED) | Discontinued |
| 58 |  | 5304455651replaces 5308002748 SCREW | $7.77 Part Advantage |
| *62503 | | INSULATION-DOOR, FIBERGLASS, (BULK) (USE DOOR DYKE INSUL | Discontinued |
