Model
Universal GTN155BH1
Refrigerator, Top Mount
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelUniversal
GTN155BH1Refrigerator, Top Mount
4 diagrams133 parts
Parts Sections (4)
Diagram

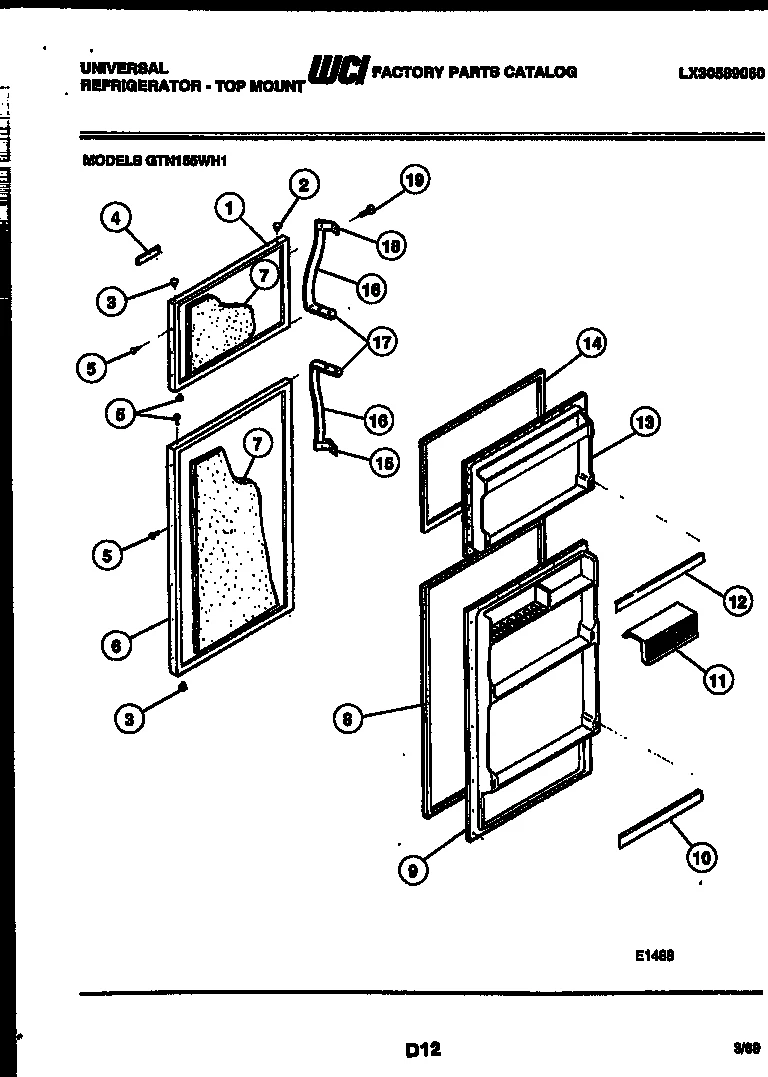

DOOR PARTS
Parts in DOOR PARTS
22 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | G186221-11 FREEZER DOOR-ALMOND | - |
| 2 | – | G169332-11 BUTTON PLUG, ALMOND | - |
| 3 |  | HINGE BEARING-LOWER (NON-ILLUSTRATED) | Discontinued |
| 4 | – | G171161-01 FRAME-NAMEPLATE | - |
| 4A | | TAPE-NAMEPLATE MOUNTING (NON-ILLUSTRATED) | Discontinued |
| 5 | | 240494004replaces G162977-11 BUTTON PLUG-ALMOND | - |
| 6 | – | G186234-11 REFRIGERATOR DOOR-ALMOND | - |
| 7 | | INSULATION-DOOR (BULK) (NON-ILLUSTRATED) | Discontinued |
| 8 | – | G186932-02 GASKET-REFRIGERATOR DOOR | - |
| 9 | | 5318664801replaces G186648-02 INNER PANEL-REFR | - |
| 9A |  | 5304455651replaces G162585 SCREW | $7.77 Part Advantage |
| 10 | – | G164698-46 RACK-REFR DOOR (2) | - |
| 11 | – | G161776-44 BUTTER DOOR | - |
| 12 | – | G164698-27 DOOR RACK-REFRIGERATOR | - |
| 13 | – | G186692-02 INNER PANEL-FREEZER | - |
| 13A | | 5304455651replaces G162585 SCREW | $7.77 Part Advantage |
| 14 |  | GASKET, FREEZER DOOR | Discontinued |
| 15 | – | G179801 END - REFRIGERATOR HANDLE BOTTOM | - |
| 16 | – | G170495-28 GRIP-HANDLE (2) | - |
| 17 | | 3001296replaces G187329-01 END-FRZR HNDL BTM | - |
| 18 | – | G179800 END - FREEZER HANDLE TOP | - |
| 19 | | 5308011745replaces G185566 SCREW | - |
