Model
Universal GTN198WH1-66
Refrigerator, Top Mount
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelUniversal
GTN198WH1-66Refrigerator, Top Mount
4 diagrams187 parts
Parts Sections (4)
Diagram

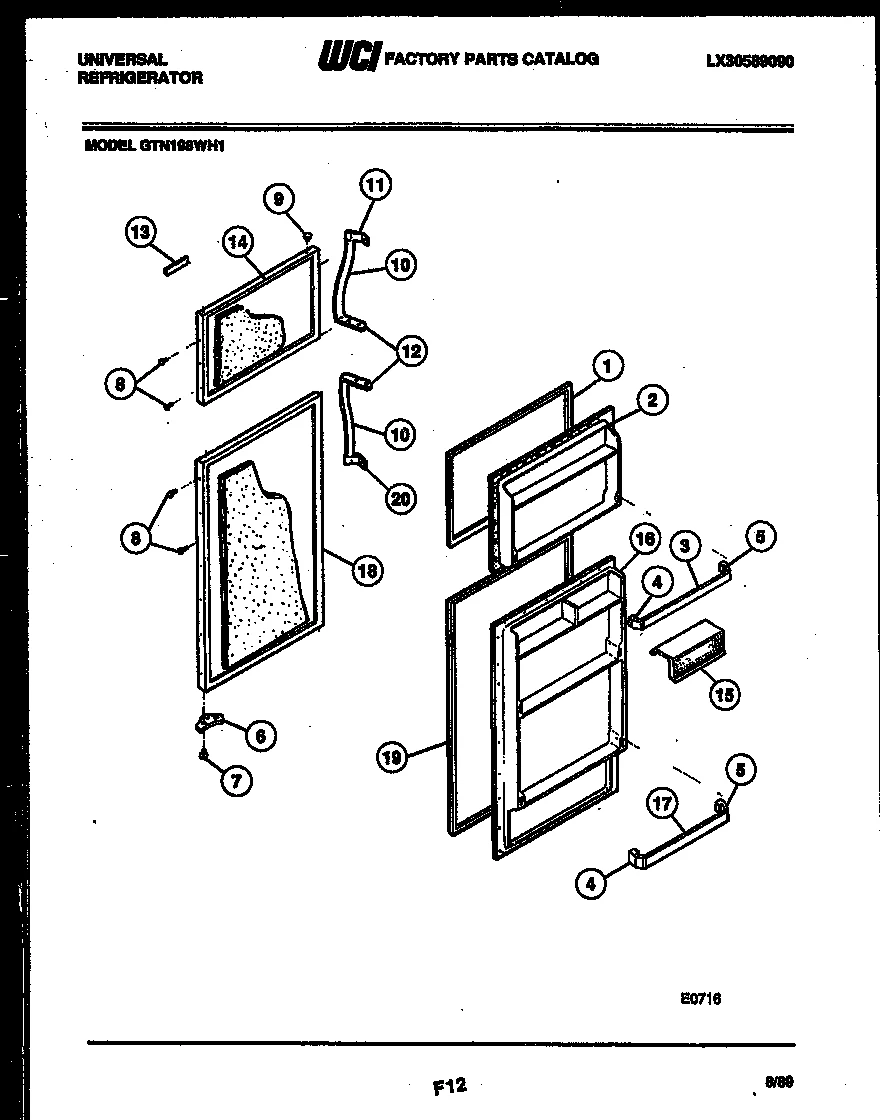

DOOR PARTS
Parts in DOOR PARTS
41 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | GASKET-DOOR FREEZER | Discontinued |
| 2 | – | 3001485 PANEL-INNER DOOR, FRZR | - |
| 2 |  | 5304455651replaces 08002748 SCREW | $7.77 Part Advantage |
| 3 | – | 3001484 RACK-DOOR (2) | - |
| 4 |  | 5303007297replaces 3001411 SUPPORT DOOR RACK LH (4) | $24.36 RepairClinic |
| 5 | – | 3001410 SUPPORT DOOR RACK RH (4) | - |
| 6 |  | 5308000255replaces G155072 DOOR STOP UPPER-LOWER (NON-ILLUSTRATED) | - |
| 7 | | 5308011745replaces G185566 SCREW | - |
| 8 | – | G162977-08 BUTTON PLUG-AVOCADO | - |
| 8 | – | G162977-10 BUTTON PLUG-COFFEE | - |
| 8 |  | 240494001replaces G162977-01 BUTTON PLUG-WHITE | $9.83 Part Advantage |
| 8 | | 240494004replaces G162977-11 BUTTON PLUG-ALMOND | - |
| 8 | – | G162977-09 BUTTON PLUG-WHEAT | - |
| 9 | – | G169332-10 BUTTON-PLUG, COFFEE | - |
| 9 | – | G169332-09 BUTTON PLUG, WHEAT | - |
| 9 | | BUTTON PLUG, WHITE | Discontinued |
| 9 | – | G169332-11 BUTTON PLUG, ALMOND | - |
| 9 | – | G169332-08 BUTTON PLUG-AVOCADO | - |
| 10 | – | G170495-29 GRIP-HANDLE (2) | - |
| 11 | – | G179800 END - FREEZER HANDLE TOP | - |
| 12 |  | 5303001296replaces G187329-01 END-FRZR HNDL BTM | - |
| 12 | | 5308011745replaces G185566 SCREW | - |
| 13 | – | G171161-01 FRAME-NAMEPLATE | - |
| 14 | – | G178690-08 PANEL-FREEZER-AVOCADO | - |
| 14 | | HINGE BEARING-LOWER (NON-ILLUSTRATED) | Discontinued |
| 14 | – | G178690 PANEL, EXTERIOR DOOR, TEXTURED (NOT ILLUSTRATED) | - |
| 14 | – | G178690-11 PANEL-FREEZER, ALMOND | - |
| 14 | – | G178690-09 PANEL-FREEZER-WHEAT | - |
| 14 | – | G178690-10 PANEL-OUTER FRZR (COFFEE) | - |
| 15 | – | G178500-14 DOOR COMPARTMENT (2) | - |
| 16 | | 5304455651replaces 08002748 SCREW | $7.77 Part Advantage |
| 16 | – | 3001489 PANEL-INNER DOOR, REFR | - |
| 17 | – | 3001418 DOOR RACK-BOTTOM | - |
| 18 | – | G178694-10 PANEL REFRIGERATOR-COFFEE | - |
| 18 | – | G178694-09 PANEL REFRIGERATOR-WHEAT | - |
| 18 | | 5300178694replaces G178694 PANEL, EXTERIOR DOOR, TEXTURED (NOT ILLUSTRATED) | - |
| 18 | – | G178694-11 PANEL REFRIGERATOR-ALMOND | - |
| 18 | – | G178694-08 PANEL REFRIGERATOR-AVOCADO | - |
| 18 | | HINGE BEARING-LOWER (NON-ILLUSTRATED) | Discontinued |
| 19 |  | 218730609replaces 08015544 GASKET-REFRIGERATOR | - |
| 20 | – | G179801 END - REFRIGERATOR HANDLE BOTTOM | - |
