ModelUniversal
GTN217BH4Refrigerator, Top Mount
6 diagrams210 parts
Parts Sections (6)
Diagram

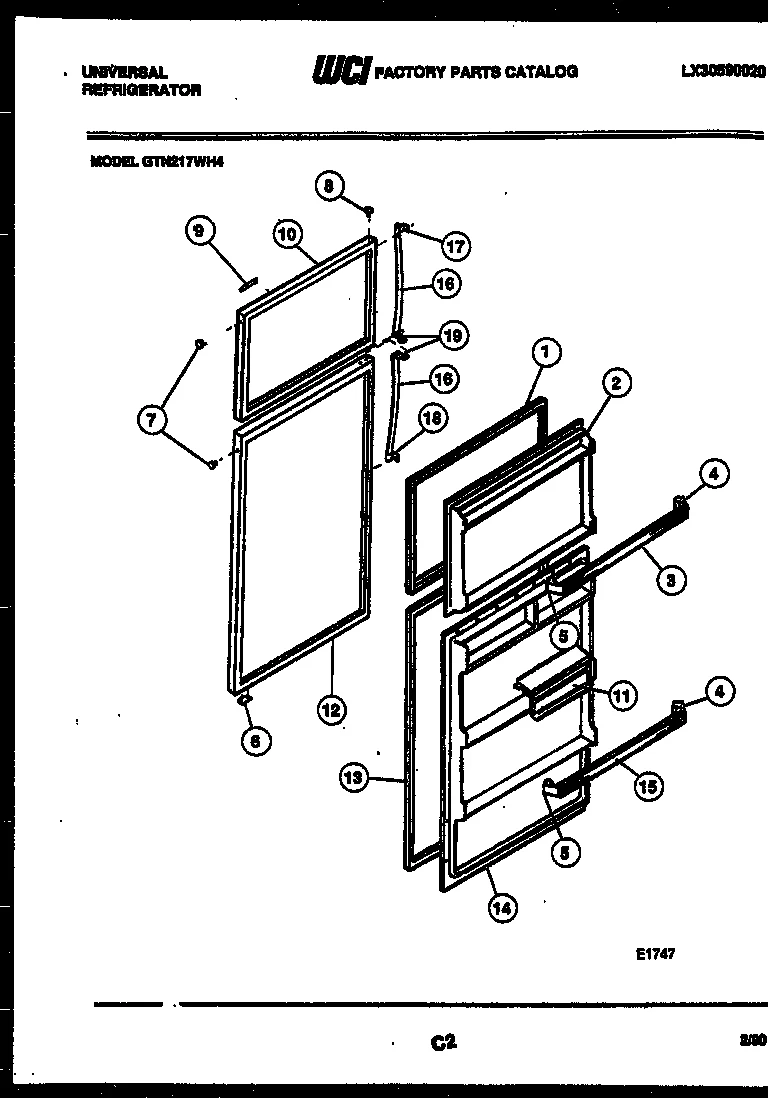

DOOR PARTS
Parts in DOOR PARTS
27 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 5308016617 GASKET-FRZR DOOR, BEIGE, MAGNETIC | - |
| 2 | – | 3001408 PANEL-INNER DOOR, REFR | - |
| 2A |  | 218843801replaces 5303001001 Screw,hx wshr hd sems ,8-15A x 0.625 | - |
| 3 | – | 3001409 RACK-FREEZER DOOR (2) | - |
| 4 | – | 5303001410 SUPPORT-DOOR RACK, RH, (4) | - |
| 5 |  | 5303007297replaces 5303001411 SUPPORT-DOOR RACK, LH, (4) | $24.36 RepairClinic |
| 6 |  | DOOR STOP, REFR/FRZR, (2) (NON-ILLUSTRATED) | - |
| 6A |  | SCREW | - |
| 7 | | 240494004replaces 5308000181 PLUG, BUTTON, HANDLE/DOOR STOP, ALMOND | - |
| 8 | | 5303001308NLA PLUG, BUTTON, HINGE BEARING HOLE, ALMOND | Discontinued |
| 9 | – | 5317116101 FRAME-NAMEPLATE | - |
| 10 | – | G188158-11 FREEZER PANEL-OUTER (ALMOND) | - |
| 10A | | 5308012007NLA HINGE BEARING - LOWER (NON-ILLUSTRATED) | Discontinued |
| 11 | – | 5303001415 DOOR COMPARTMENT (2) | - |
| 12 | | REFRIGERATOR PANEL - ALMOND | - |
| 12A | | 5308012007NLA HINGE BEARING - LOWER (NON-ILLUSTRATED) | Discontinued |
| 13 | | 5308015544NLA GASKET-REFR DOOR, BEIGE, MAGNETIC | Discontinued |
| 14 | – | 3001417 PANEL-INNER DOOR, FRZR | - |
| 14A | | 218843801replaces 5303001001 Screw,hx wshr hd sems ,8-15A x 0.625 | - |
| 15 | – | 5303001418 RACK-REFR DOOR-TOP | - |
| 15A | – | G161019-67 RACK-REFR DOOR-BOTTOM (NON-ILLUSTRATED) | - |
| 16 | – | 5317049529 GRIP-HANDLE (2) | - |
| 17 |  | HANDLE END TOP | - |
| 18 | – | 5300179801 HANDLE-END BOTTOM | - |
| 19 |  | END-HANDLE BOTTOM | - |
| *26733 | | SCREW | - |
| *26733 | | INSULATION-DOOR, FIBERGLASS, (BULK) (USE DOOR DYKE INSUL | Discontinued |
