Model
Universal MDB125RHD0
Dishwasher, Built-In, 24 Inch
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelUniversal
MDB125RHD0Dishwasher, Built-In, 24 Inch
6 diagrams95 parts
Parts Sections (6)
Diagram

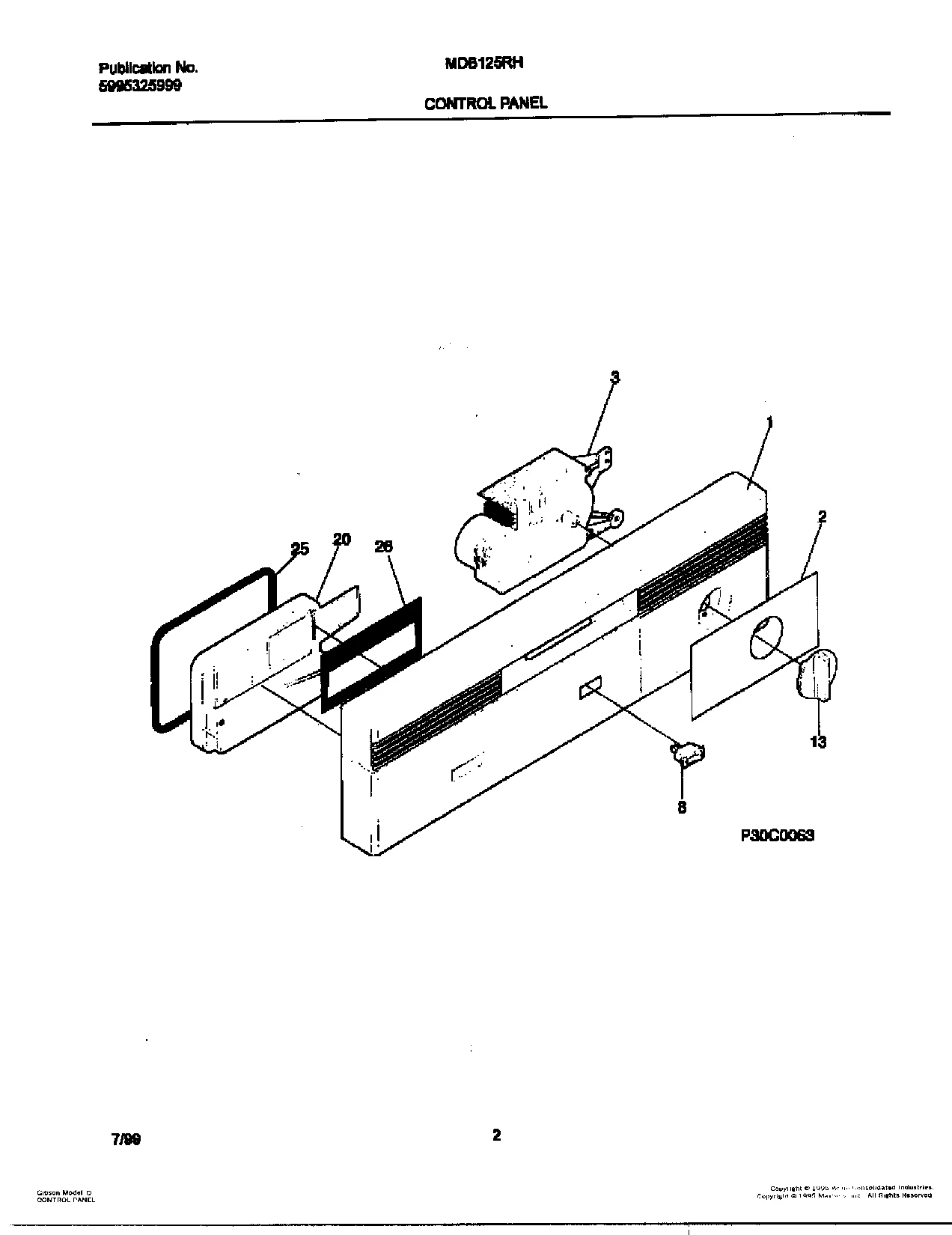

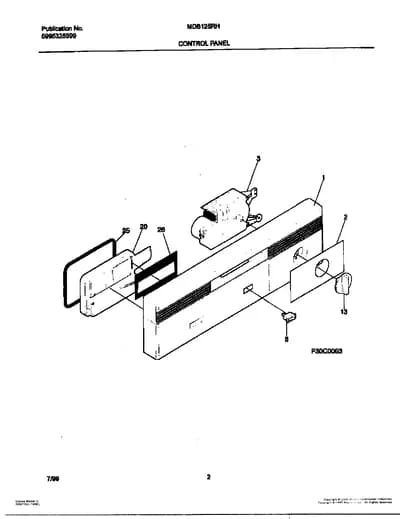

CONTROL PANEL
Parts in CONTROL PANEL
11 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 154350003 PANEL-CONTROL,PRINTED ,PLASTIC ,BLACK | - |
| 2 |  | INSERT-CONTROL PNL,BLACK | - |
| 3 | | 154347701NLA TIMER | Discontinued |
| 8 |  | SWITCH, ROCKER/SELECTOR (BLACK) | - |
| 13 |  | KNOB, TIMER (BLACK) | $54.24 PartSelect |
| 20 | | 154327301NLA VAPOR CHAMBER ASSY | Discontinued |
| 25 | | 154303901NLA GASKET-VENT | Discontinued |
| 26 |  | 154229201NLA SEAL-CHAMBER | Discontinued |
| *86200 |  | 154779601replaces 5303318719 SCREW,(3) ,TIMER MTG. | $1.95 ApplianceParts Pro |
| *86201 | | Screw,No.8-10 ,3/8 phillips | - |
| *86202 | – | 154347902 HARNESS-WIRING | - |
