Model
Universal MEF303PCDB
Range/Oven, Electric, Freestanding, 30 Inch
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelUniversal
MEF303PCDBRange/Oven, Electric, Freestanding, 30 Inch
4 diagrams93 parts
Parts Sections (4)
Diagram

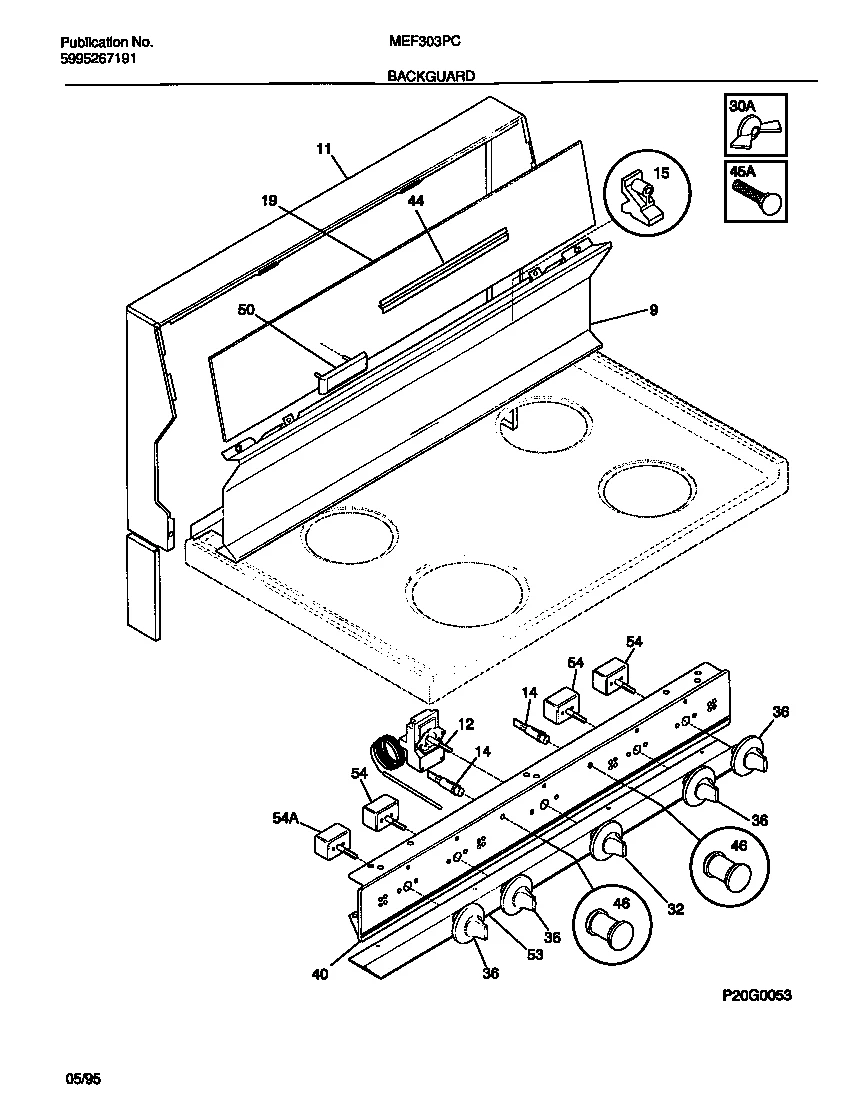

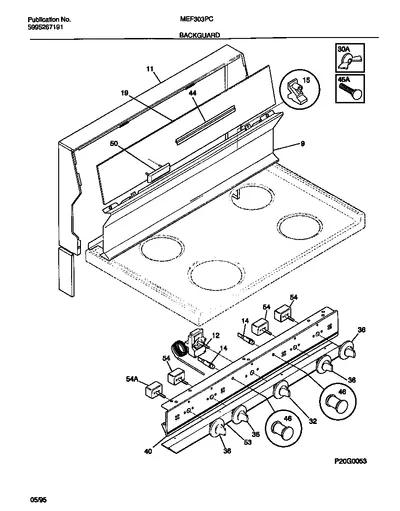

BACKGUARD
Parts in BACKGUARD
19 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 9 | – | 316043609 TRIM-SPLASHER, ALMOND, (3) | - |
| 11 |  | Trim,wrapper ,black | - |
| 12 | | 316114600replaces 5303210266 THERMOSTAT-OVEN | - |
| 14 | | LIGHT/LAMP, INDICATOR, RED, 250 V, (2) | - |
| 15 | | 5303131237NLA LIGHT/LAMP, INDICATOR, RED, LOCK | Discontinued |
| 19 | | PANEL, CONTROL, METAL | - |
| 30 | – | 316064300 Nut,nylon | - |
| 32 |  | KNOB-THERMOSTAT | Discontinued |
| 36 |  | KNOB-CONTROL, INFINITE SWITCH | Discontinued |
| 40 | – | 316009221 PANEL-MANIFOLD | - |
| 44 | – | 3131468 BACKET - BACKGUARD (NON-ILLUSTRATED) | - |
| 45 | | Bolt,fastener ,nylon ,black | - |
| 46 | – | 316040200 LENS-LIGHT/LAMP, INDICATOR, AMBER | - |
| 50 |  | 316096900replaces 316067000 BEZEL, NAMEPLATE, BLACK | - |
| 53 | | SHIELD-HEAT, EXTRUSION | - |
| 54 |  | 5303935086replaces 5303051540 SWITCH, SURFACE UNIT, SMALL (2) | $25.83 Part Advantage |
| 54 | | 5303935086replaces 5301313767 SWITCH, SURFACE UNIT, LARGE (2) | $25.83 Part Advantage |
| *81680 | | SCREW, TRUSS HEAD, 8-18 X 1/2 10-16 X 1/2 (NON-ILLUSTRATED) | - |
| *81681 |  | 316021109replaces 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black | $8.20 Part Advantage |
