Model
Universal MEF322WGSC
Range/Oven, Electric, Freestanding, 30 Inch
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelUniversal
MEF322WGSCRange/Oven, Electric, Freestanding, 30 Inch
4 diagrams93 parts
Parts Sections (4)
Diagram

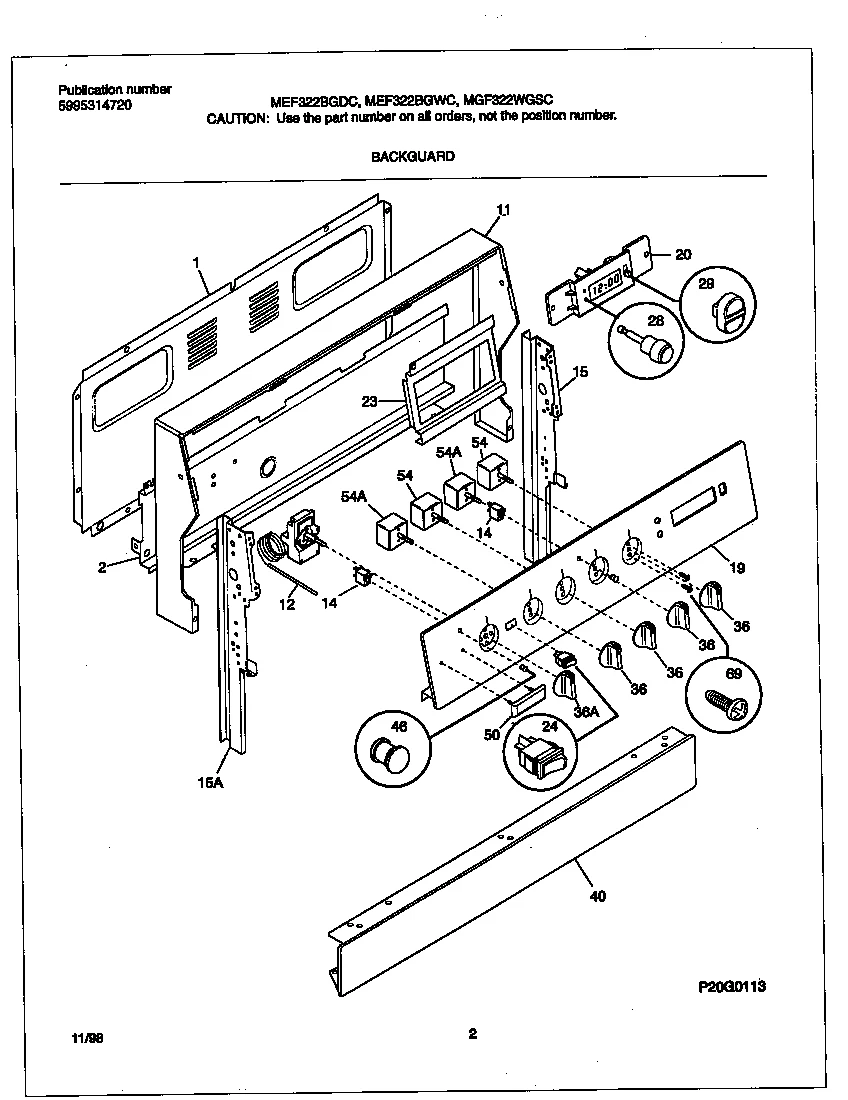

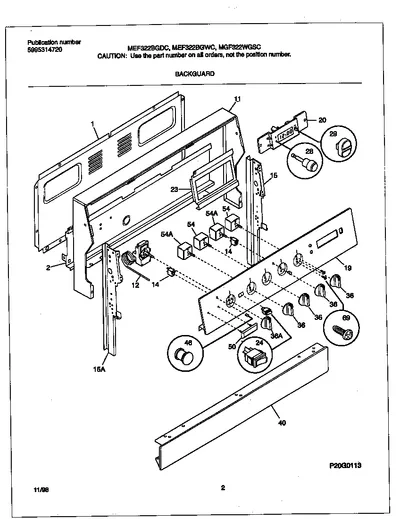

BACKGUARD
Parts in BACKGUARD
25 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 316081600replaces 316081601 Shield-backguard,painted ,black ,rear wall | - |
| 2 | – | 316015907 Shield,backguard ,black ,inner | - |
| 11 | – | 316061852 TRIM-WRAPPER, TEXTURED, WHITE,WHITE | - |
| 12 | | THERMOSTAT-OVEN | - |
| 14 |  | Light/Lamp,indicator ,black ,125 V | $31.81 Parts Dr |
| 14 |  | 316022503replaces 316022504 LIGHT-INDICATOR,250V | $45.42 Parts Dr |
| 15 | | SUPPORT-BACKGUARD, RH | - |
| 15 | | Support,backguard ,LH | - |
| 19 | – | 316076588 PANEL-CONTROL,METAL ,WHITE | - |
| 20 | | 316113200NLA CLOCK-TIMER | Discontinued |
| 23 | – | 316079002 BRACKET-CLOCK MTG | - |
| 24 |  | 5304527842replaces 316005607 SWITCH-ROCKER, OVEN LIGHT, WHITE | $6.16 Part Advantage |
| 28 | | BUTTON-CLOCK,WHITE , CLOCK SET | - |
| 29 | | 316028402NLA BUTTON-SELECTOR, CLOCK/TIMER, WHITE | Discontinued |
| 36 |  | KNOB-CONTROL, INFINITE SW, WHITE, (4) | $36.54 Parts Dr |
| 36 | | 316109601NLA Knob-thermostat,white | Discontinued |
| 40 | | PANEL-MANIFOLD,WHITE | - |
| 46 |  | 318228310replaces 316040201 LENS-LIGHT/LAMP, INDICATOR, RED, (4) | $6.54 Part Advantage |
| 50 | | BEZEL-NAMEPLATE, WHITE | - |
| 54 |  | 316436000replaces 316021500 Switch,infinite ,small element | $42.55 Part Advantage |
| 54 |  | 316436001replaces 316021501 Switch,infinite ,large element | $22.25 Part Advantage |
| 69 | | 5304501948replaces 5303292005 SCREW-SWITCH MTG, 8-32 X 5/32, (2) (NOT ILLUSTRATED) | - |
| *60360 |  | 131243700replaces 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome | $1.96 Part Advantage |
| *60361 |  | 316021109replaces 316021110 Screw,8-18 x 0.5 ,black | $8.20 Part Advantage |
| *60362 |  | Template, Anti-tip bracket | - |
