Model
Universal MGF334BGWA
Range/Oven, Gas, Freestanding, 30 Inch
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelUniversal
MGF334BGWARange/Oven, Gas, Freestanding, 30 Inch
5 diagrams123 parts
Parts Sections (5)
Diagram

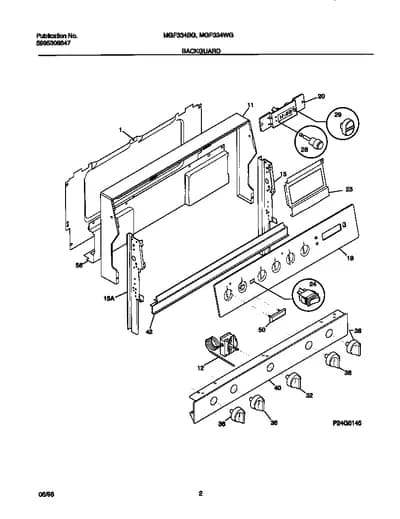

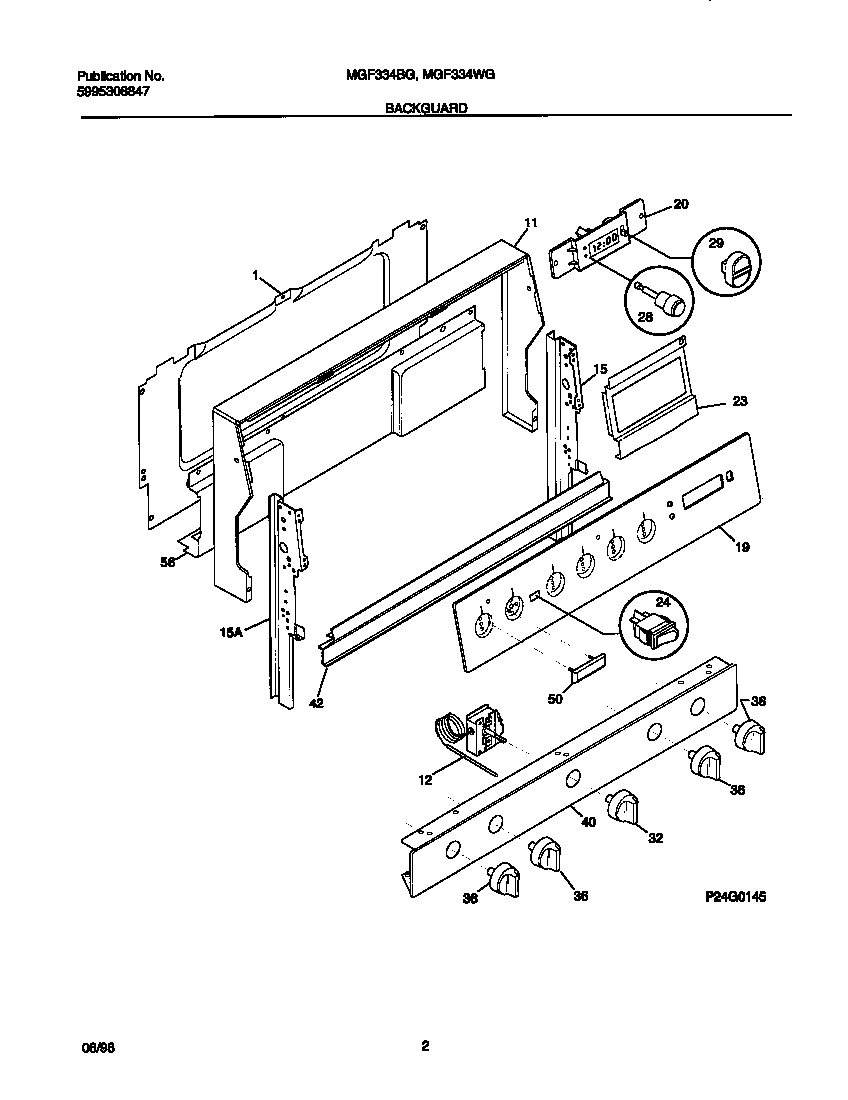

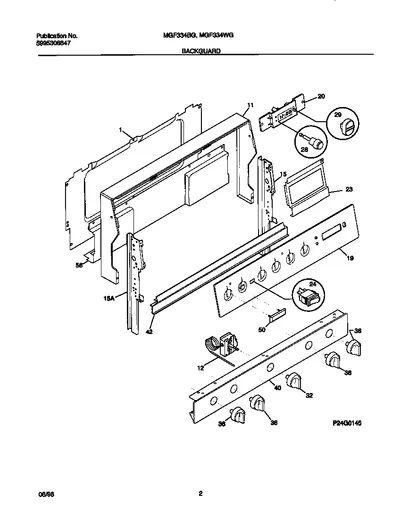

BACKGUARD
Parts in BACKGUARD
21 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 316028701 SHIELD, REAR WALL, BACKGUARD | - |
| 11 | – | 316061856 TRIM-WRAPPER,TEXTURED ,BLACK | - |
| 12 |  | 316032411replaces 5303271464 THERMOSTAT-OVEN | $59.24 Part Advantage |
| 15 |  | SUPPORT-BACKGUARD, RH | - |
| 15 | | Support,backguard ,LH | - |
| 19 | – | 316082652 Panel,control ,black ,19 | - |
| 20 | – | 316096001 CLOCK/TIMER | - |
| 23 | – | 316079002 BRACKET-CLOCK MTG | - |
| 24 |  | 5304527841replaces 316005602 SWITCH-LIGHT/LAMP, ROCKER TYPE, BLACK, (2) | $6.16 Part Advantage |
| 28 | | Push Button,clock set ,black ,(2) | - |
| 29 | | BUTTON-SELECTOR, CLOCK/TIMER, BLACK | - |
| 32 | – | 316053602 KNOB-THERMOSTAT,BLACK | - |
| 36 | | KNOB-TOP VALVE BLACK,BLACK | Discontinued |
| 40 | – | 316062324 PANEL, MANIFOLD | - |
| 42 | – | 316083300 Trim,vent ,black | - |
| 50 |  | Bezel,nameplate ,black | - |
| 56 | – | 316074907 DEFLECTOR-FLUE, BLACK | - |
| *01800 | – | 316002989 INSTRUCTIONS,INSTALLATION | - |
| *01801 |  | 316021109replaces 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black | $8.20 Part Advantage |
| *01802 |  | 131243700replaces 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome | $1.96 Part Advantage |
| *01803 | | 316021109replaces 316021110 Screw,8-18 x 0.5 ,black | $8.20 Part Advantage |
