Model
Universal MPF311PCWA
Range/Oven, Gas, Freestanding, 30 Inch
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelUniversal
MPF311PCWARange/Oven, Gas, Freestanding, 30 Inch
5 diagrams99 parts
Parts Sections (5)
Diagram

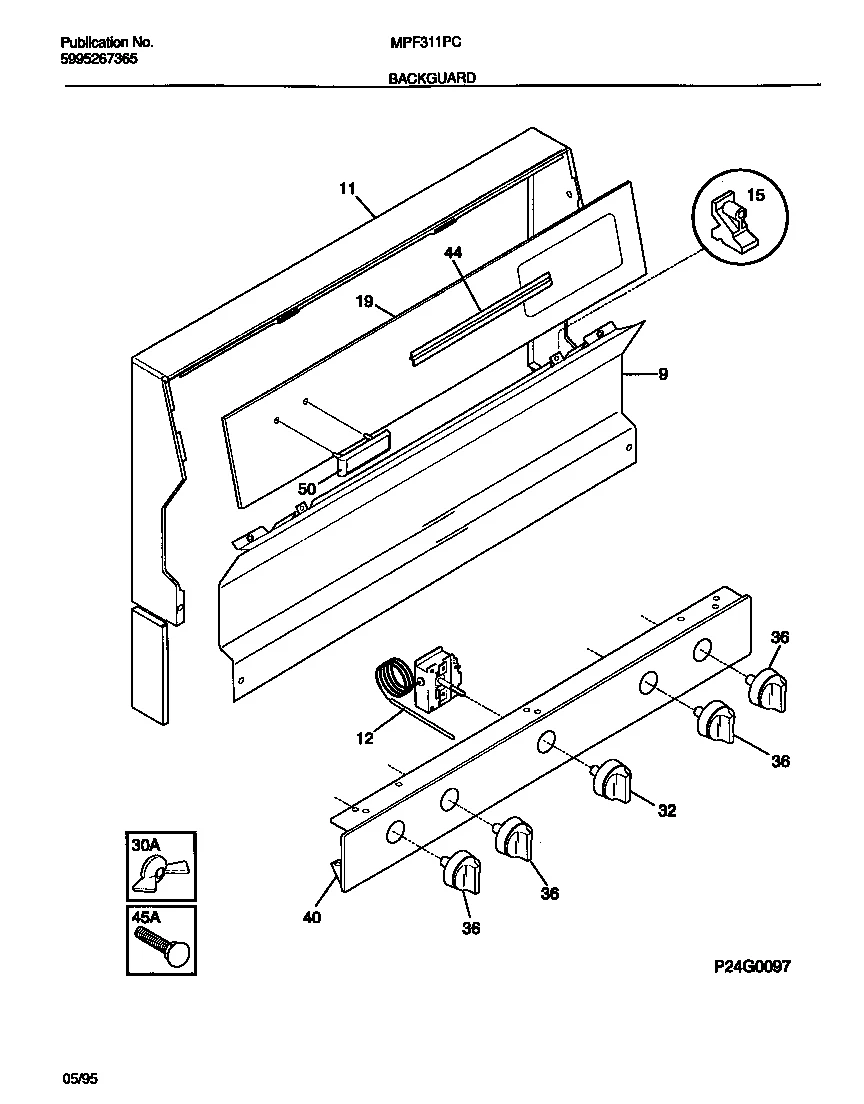

BACKGUARD
Parts in BACKGUARD
15 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 9 |  | TRIM-LOWER SPLASHER-WHITE | - |
| 11 | | Trim,wrapper ,black | - |
| 12A | | Thermostat,oven ,w/screws | - |
| 12B | – | 5303280590 SCREW-THERMOSTAT, (2) (NOT ILLUSTRATED) | - |
| 15 | | 5303131237NLA LIGHT/LAMP, INDICATOR, RED, LOCK | Discontinued |
| 19 | | PANEL, CONTROL, METAL | - |
| 30 | – | 316064300 Nut,nylon | - |
| 32 | | KNOB-THERMOSTAT | Discontinued |
| 36 | | 5303288187NLA KNOB-TOP VALVE, (4) | Discontinued |
| 40 | – | 319009214 PANEL-MANIFOLD | - |
| 44 | – | 3131468 BACKET - BACKGUARD (NON-ILLUSTRATED) | - |
| 45 | | Bolt,fastener ,nylon ,black | - |
| 50 |  | 316096900replaces 316067000 BEZEL, NAMEPLATE, BLACK | - |
| *18040 |  | 316021109replaces 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black | $8.20 Part Advantage |
| *18041 | | SCREW, TRUSS HEAD, 8-18 X 1/2 10-16 X 1/2 (NON-ILLUSTRATED) | - |
