Model
Universal MRS22WNCD0
Refrigerator, Side-By-Side, W/Dispenser
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelUniversal
MRS22WNCD0Refrigerator, Side-By-Side, W/Dispenser
9 diagrams305 parts
Parts Sections (9)

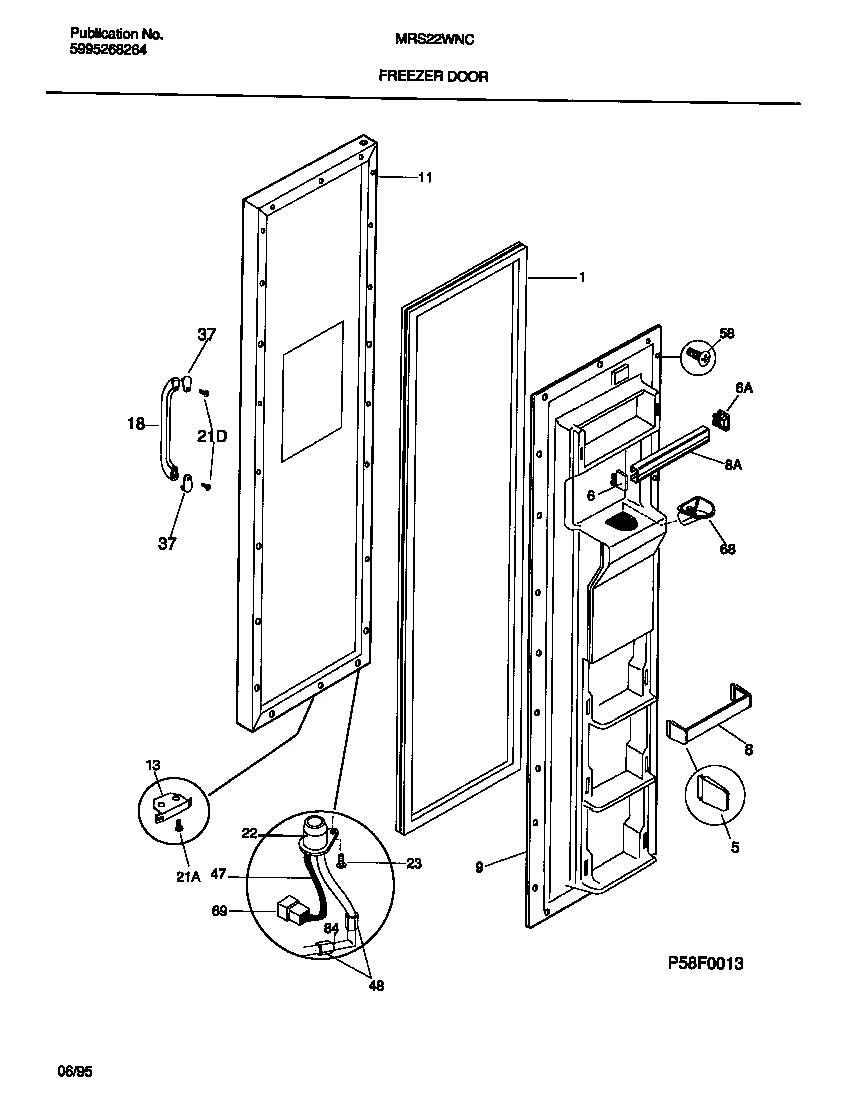

Diagram
FREEZER DOOR
Parts in FREEZER DOOR
24 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 215734303NLA GASKET-FRZR DOOR, ALMOND, MAGNETIC | Discontinued |
| 5 |  | SUPPPORT, DOOR RACK, ``2, LITER``, RH/LH | $2.21 Part Advantage |
| 6 |  | SUPPORT-DOOR RACK, EXTENDS 1.06``, RH | $4.42 Part Advantage |
| 6 |  | SUPPORT-DOOR RACK, EXTENDS 1.06``, LH | $5.72 Part Advantage |
| 8 | | RACK, DOOR, W/END CAPS, (3) | - |
| 8 | | 5303300032NLA RACK, DOOR | Discontinued |
| 9 | – | 215201501 PANEL-INNER DOOR, FRZR | - |
| 11 | – | 215655811 PANEL, FRZR DOOR, ALMOND, W/FOAM INSULATN | - |
| 13 | | DOOR STOP, REFR DOOR | - |
| 18 | | 215339618NLA HANDLE-DOOR, BLACK | Discontinued |
| 21 |  | SCREW-DOOR STOP MTG, PHL TRUSS HD, 10-16 X 3/4, BUMPER M | - |
| 21 | – | 215659600 SCREW-HANDLE MTG,HEX HEAD ,10-32 X 0.500 | - |
| 22 | | 215615300NLA BRUSHING-DOOR, BRONZE | Discontinued |
| 23 |  | SCREW-DOOR CLOSER MTG, CR FLAT HEAD, 8-32(D) X 1/2 | - |
| 37 | – | 215361418 TRIM-HANDLE, BLACK | - |
| 47 | – | 218485300 HARNESS-WIRING, FRZR DOOR | - |
| 48 |  | 218731600replaces 5308000200 NUT-INLET/WTR VALVE, 7/16 X 20, NYLON | $43.95 ApplianceParts Pro |
| 58 |  | 5304455651replaces 5308002748 SCREW | $7.77 Part Advantage |
| 68 | | 218667900replaces 218036400 CHUTE-ICE | - |
| 69 | | CONNECTOR-DOOR HARNESS | - |
| 84 | | ELBOW-WATER TUBE | - |
| *29160 | | 215598900NLA WASHER-FLAT, .691 X 1 X .05, ZINC, I & W HINGE BRKT (NON-ILLUSTRATED) | Discontinued |
| *29161 | – | 215361200 FOAM STRIP, HANDLE MTG HOLE | - |
| *29162 | | 5303917276NLA INSULATION-DOOR, FIBERGLASS, (BULK) (IF POSSIBEL, USE DO | Discontinued |
