Model
Universal MRT11CRBY0
Refrigerator, Top Mount
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelUniversal
MRT11CRBY0Refrigerator, Top Mount
4 diagrams126 parts
Parts Sections (4)
Diagram

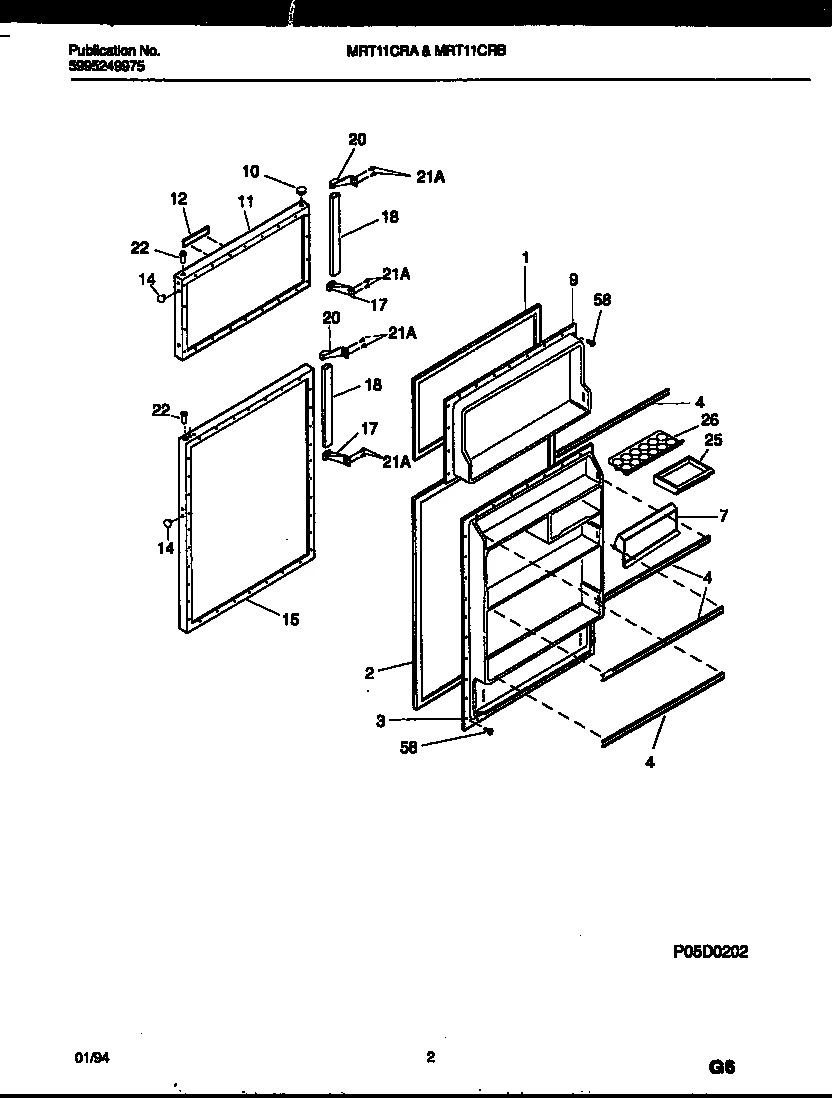

DOOR PARTS
Parts in DOOR PARTS
20 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 215740411 GASKET-FRZR DOOR, MAGNETIC, ALMOND | - |
| 2 |  | GASKET-REFR DOOR, MAGNETIC, ALMOND | - |
| 3 | – | 215438701 PANEL-INNER DOOR, REFR | - |
| 4 | | RACK-DOOR, (4) | - |
| 7 | – | 215787302 DOOR-DAIRY | - |
| 9 | – | 215438501 PANEL-INNER DOOR, FRZR | - |
| 10 | | 5303001308NLA PLUG, BUTTON, HINGE BEARING HOLE, ALMOND | Discontinued |
| 11 | – | 5303917340 PANEL-FRZR DOOR, ALMOND, W/ INSULATION | - |
| 12 | – | 215503711 NAMEPLATE/FRAME, ALMOND, W/ MTG TAPE | - |
| 14 | | 240494004replaces 5308000181 PLUG, BUTTON, HANDLE/DOOR STOP, ALMOND | - |
| 15 | – | 5303917338 PANEL-REFR DOOR, ALMOND, W/ INSULATION | - |
| 17 | | 5303001015NLA END - HANDLE BOTTOM | Discontinued |
| 18 | | 5303302991NLA HANDLE DOOR, ALMOND | Discontinued |
| 20 | | END - HANDLE TOP | - |
| 21A | | SCREW | - |
| 22 | | 5308012007NLA HINGE BEARING - LOWER (NON-ILLUSTRATED) | Discontinued |
| 25 |  | DISH-BUTTER OPTIONAL ACCESSORY | - |
| 26 |  | TRAY-EGG ACCESSORY - NOT ORIGINAL EQUIPMENT | $10.02 Parts Dr |
| 58 |  | 5304455651replaces 5308002748 SCREW | $7.77 Part Advantage |
| *91715 | | 5303917276NLA INSULATION-DOOR, FIBERGLASS, (BULK) (IF POSSIBEL, USE DO | Discontinued |
