Model
Universal MRT13BSCD0
Refrigerator, Top Mount
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelUniversal
MRT13BSCD0Refrigerator, Top Mount
4 diagrams129 parts
Parts Sections (4)
Diagram

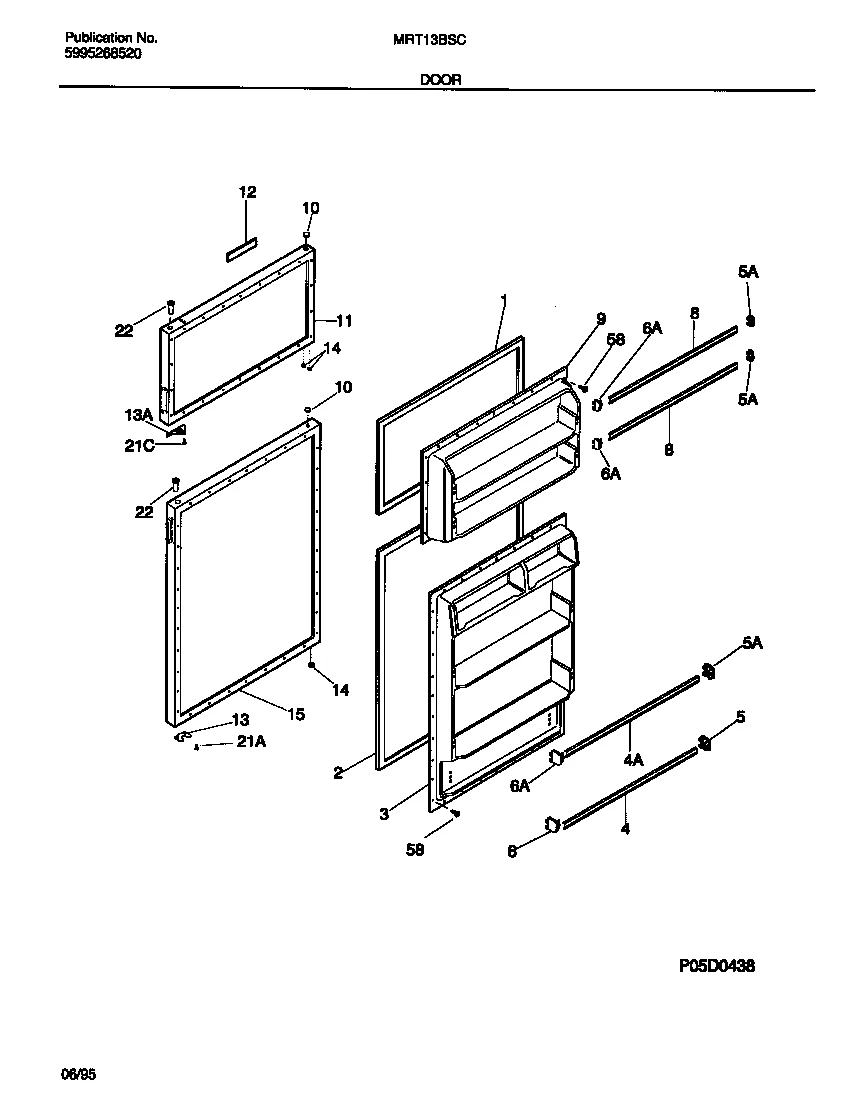

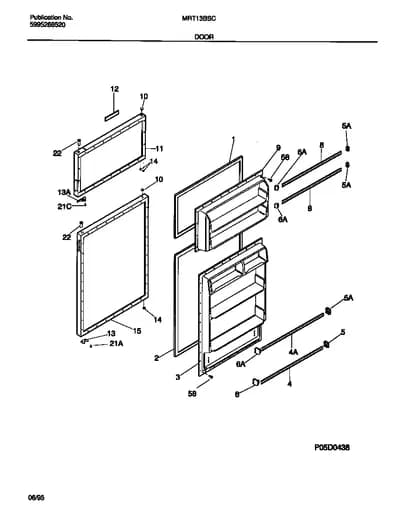

DOOR
Parts in DOOR
23 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | GASKET-FRZR DOOR, ALMOND, MAGNETIC | Discontinued |
| 2 |  | GASKET-REFR DOOR, ALMOND, MAGNETIC | Discontinued |
| 3 | – | 218473001 PANEL-INNER DOOR, REFR | - |
| 4 |  | 215366002replaces 5303280367 RACK-DOOR, 23.00`` X 1.62`` | $30.97 Part Advantage |
| 4 |  | RACK-DOOR, 23.16`` X 1.12`` | Discontinued |
| 5 |  | SUPPORT-DOOR RACK, EXTENDS 1.06``, RH | $4.42 Part Advantage |
| 5 |  | SUPPORT-DOOR RACK, EXTENDS 1/81``, RH | - |
| 6 |  | SUPPORT-DOOR RACK, EXTENDS 1.06``, LH | $5.72 Part Advantage |
| 6 | | 3206151NLA SUPPORT-DOOR RACK, EXTENDS 1.81``, LH | Discontinued |
| 8 | | RACK-DOOR, 22.59`` X 1.12`` | Discontinued |
| 9 | | PANEL-INNER DOOR, FRZR | - |
| 10 | | 5303001308NLA PLUG, BUTTON, HINGE BEARING HOLE, ALMOND | Discontinued |
| 11 | – | 218497402 PANEL-FRZR DOOR, ALMOND, WITH HANDLES &, FOAM INSULATION | - |
| 12 | – | 215503711 NAMEPLATE/FRAME, ALMOND, W/ MTG TAPE | - |
| 13 |  | DOOR STOP, REFR/FRZR, (2) (NON-ILLUSTRATED) | - |
| 13 |  | DOOR STOP, ALMOND, FRZR SECTION | - |
| 14 | | 240494004replaces 5308000181 PLUG, BUTTON, HANDLE/DOOR STOP, ALMOND | - |
| 15 | – | 218629302 PANEL-REFR DOOR, ALMOND, WITH HANDLES, AND INSULATION | - |
| 21 | | SCREW, NO. 8 OVAL HEAD, 10-32(CA) X 5/8, CROSSED RECESSED | - |
| 21 |  | 218252201replaces 218252200 Screw,#8 truss hd ,10-32CA x 0.500 | $10.30 Parts Dr |
| 22 | | 3206153NLA BEARING-HINGE, REFR | Discontinued |
| 58 |  | 5304455651replaces 5308002748 SCREW | $7.77 Part Advantage |
| *67960 | | 5303917276NLA INSULATION-DOOR, FIBERGLASS, (BULK) (IF POSSIBEL, USE DO | Discontinued |
