Model
Universal MRT13CREZ3
Refrigerator, Top Mount
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelUniversal
MRT13CREZ3Refrigerator, Top Mount
4 diagrams138 parts
Parts Sections (4)
Diagram

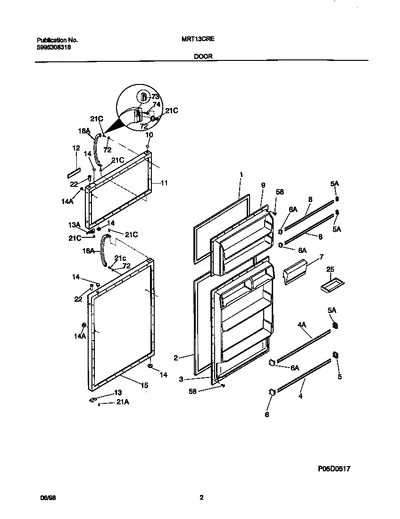

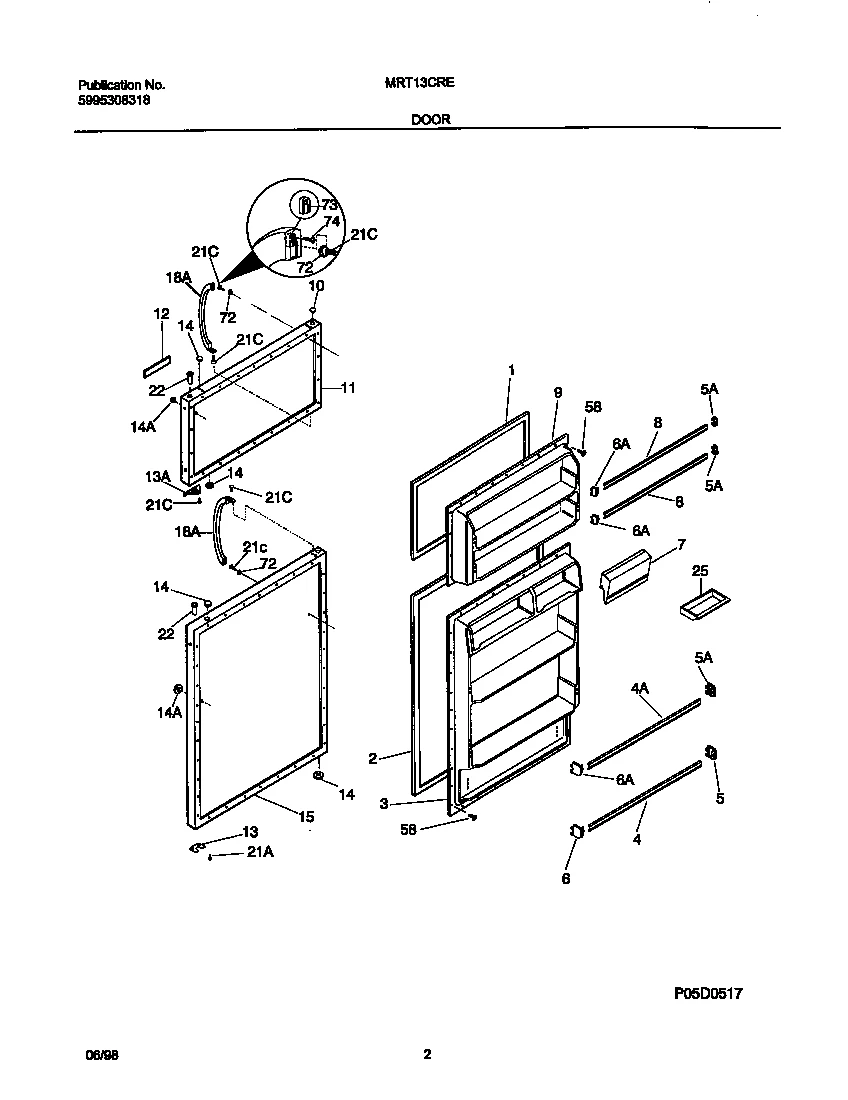

DOOR
Parts in DOOR
31 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | GASKET-FRZR DOOR, ALMOND, MAGNETIC | Discontinued |
| 2 |  | GASKET-REFR DOOR, WHITE, MAGNETIC | - |
| 3 |  | PANEL-INNER DOOR, REFR | - |
| 4 |  | RACK-DOOR, 23.16`` X 1.12`` | Discontinued |
| 4 |  | 215366002replaces 5303280367 RACK-DOOR, 23.00`` X 1.62`` | $30.97 Part Advantage |
| 5 |  | 3206166replaces 5303324303 SUPPORT-DOOR RACK, LH | $5.72 Part Advantage |
| 5 |  | 3206150replaces 5303324320 SUPPORT-DOOR RACK, RH | - |
| 6 |  | 3206165replaces 5303324321 SUPPORT-DOOR RACK, RH | $4.42 Part Advantage |
| 6 |  | SUPPORT-DOOR RACK, LH | - |
| 7 | | 5303291495NLA DAIRY DOOR | Discontinued |
| 8 | | RACK-DOOR, 22.59`` X 1.12`` | Discontinued |
| 9 | | PANEL-INNER DOOR, FRZR | - |
| 10 | | 5308000134NLA PLUG, BUTTON, HINGE BEARING HOLE, WHITE | Discontinued |
| 11 | | PANEL-FRZR DOOR, WHITE, W/INSULATION | - |
| 12 | – | 218428201 FRAME-NAMEPLATE, WHITE | - |
| 13 | | 218249001NLA DOOR STOP, WHITE, FRZR SECTION | Discontinued |
| 13 | | DOOR STOP,PLATED | - |
| 14 |  | 240494001replaces 218110901 PLUG-BUTTON, WHITE, REFR DOOR FRONT, UPPER | $9.83 Part Advantage |
| 14 | | 240494001replaces 5308000090 BUTTON-PLUG (8)-WHITE (NON-ILLUSTRATED) | $9.83 Part Advantage |
| 15 | | PANEL-REFR DOOR, WHITE, W/INSULATION | - |
| 18 |  | HANDLE-DOOR W/BLOCK AND SCREW, WHITE | $12.30 Part Advantage |
| 21 | | SCREW, NO. 8 OVAL HEAD, 10-32(CA) X 5/8, CROSSED RECESSED | - |
| 21 |  | 218252201replaces 218252200 Screw,#8 truss hd ,10-32CA x 0.500 | $10.30 Parts Dr |
| 22 | | 218519300NLA BEARING-HINGE | Discontinued |
| 25 |  | DISH-BUTTER OPTIONAL ACCESSORY | - |
| 58 |  | 216858001replaces 218699800 SCREW, TRUSS HEAD, 8-15A X 0.500 | $9.94 ApplianceParts Pro |
| 72 |  | BUTTON-HANDLE MTG, DOVETAIL | - |
| 73 |  | BLOCK-HANDLE MTG, DOVETAIL | $26.24 Part Advantage |
| 74 |  | 215503203replaces 215503200 SCREW, CR PAN HEAD, 10, 16 X 1/2, SPECIAL/HI, LO | $4.09 Part Advantage |
| *48280 | | MAGNET-NAMEPLATE (NOT ILLUSTRATED) | - |
| *48281 | | 5303917276NLA INSULATION-DOOR, FIBERGLASS, (BULK) (IF POSSIBEL, USE DO | Discontinued |
