Model
Universal MRT15CRBZ1
Refrigerator, Top Mount
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelUniversal
MRT15CRBZ1Refrigerator, Top Mount
4 diagrams142 parts
Parts Sections (4)
Diagram

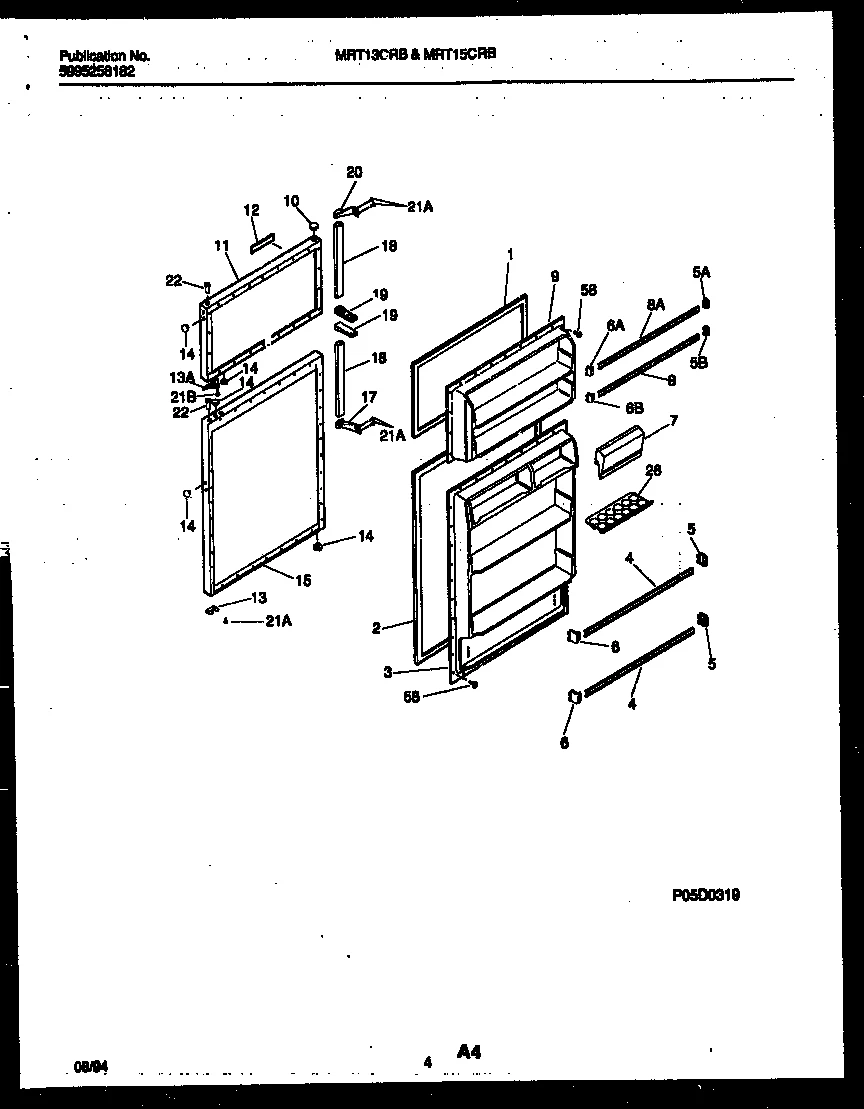

DOOR PARTS
Parts in DOOR PARTS
31 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 235608911 GASKET-FRZR DOOR, WHITE, MAGNETIC | - |
| 2 |  | 218730603replaces 5318680311 GASKET-REFR DOOR, MAGNETIC, WHITE | $30.97 Part Advantage |
| 3 | – | 5303281227 PANEL-INNER DOOR, REFR | - |
| 4 |  | 215366002replaces 5303280367 RACK-DOOR, 23.00`` X 1.62`` | $30.97 Part Advantage |
| 5 |  | SUPPORT-DOOR RACK, EXTENDS 1/81``, RH | - |
| 5A |  | SUPPORT-DOOR RACK, EXTENDS 1.06``, RH | $4.42 Part Advantage |
| 5B |  | 3206161NLA SUPPORT-DOOR RACK,EXTENDS 1.06`` ,RH ,W/MTG HOOKS | Discontinued |
| 6 | | 3206151NLA SUPPORT-DOOR RACK, EXTENDS 1.81``, LH | Discontinued |
| 6A |  | SUPPORT-DOOR RACK, EXTENDS 1.06``, LH | $5.72 Part Advantage |
| 6B | | 3206162NLA SUPPORT-DOOR RACK,EXTENDS 1.06`` ,LH ,W/MTG HOOKS | Discontinued |
| 7 | | 5303291495NLA DAIRY DOOR | Discontinued |
| 8 | | 215366002replaces 5303280621 RACK-DOOR, 22.62`` X 1.62`` | $30.97 Part Advantage |
| 8A |  | RACK-DOOR, 22.59`` X 1.12`` | Discontinued |
| 9 | | PANEL-INNER DOOR, FRZR | - |
| 10 | | 5308000134NLA PLUG, BUTTON, HINGE BEARING HOLE, WHITE | Discontinued |
| 11 | – | 5303917457 PANEL-FRZR DOOR, WHITE, W/INSULATION | - |
| 12 | | NAMEPLATE/FRAME, WHITE, W/ MTG TAPE | - |
| 13 |  | DOOR STOP, REFR/FRZR, (2) (NON-ILLUSTRATED) | - |
| 13A | | 218249001NLA DOOR STOP, WHITE, FRZR SECTION | Discontinued |
| 14 |  | 240494001replaces 5308000090 BUTTON-PLUG (8)-WHITE (NON-ILLUSTRATED) | $9.83 Part Advantage |
| 15 | – | 5303917453 PANEL-REFR DOOR, WHITE, W/INSULATION | - |
| 17 | | 5303001015NLA END - HANDLE BOTTOM | Discontinued |
| 18 |  | HANDLE-DOOR, WHITE | - |
| 19 | | HANDLE END, (2) | - |
| 20 | | END - HANDLE TOP | - |
| 21A | | SCREW, NO. 8 OVAL HEAD, 10-32(CA) X 5/8, CROSSED RECESSED | - |
| 21B |  | 218252201replaces 218252200 Screw,#8 truss hd ,10-32CA x 0.500 | $10.30 Parts Dr |
| 22 | | 3206153NLA BEARING-HINGE, REFR | Discontinued |
| 26 |  | TRAY-EGG ACCESSORY - NOT ORIGINAL EQUIPMENT | $10.02 Parts Dr |
| 58 |  | 5304455651replaces 5308002748 SCREW | $7.77 Part Advantage |
| *11126 | | 5303917276NLA INSULATION-DOOR, FIBERGLASS, (BULK) (IF POSSIBEL, USE DO | Discontinued |
