ModelUniversal
MRT16CGEZ8Refrigerator, Top Mount
4 diagrams148 parts
Parts Sections (4)
Diagram

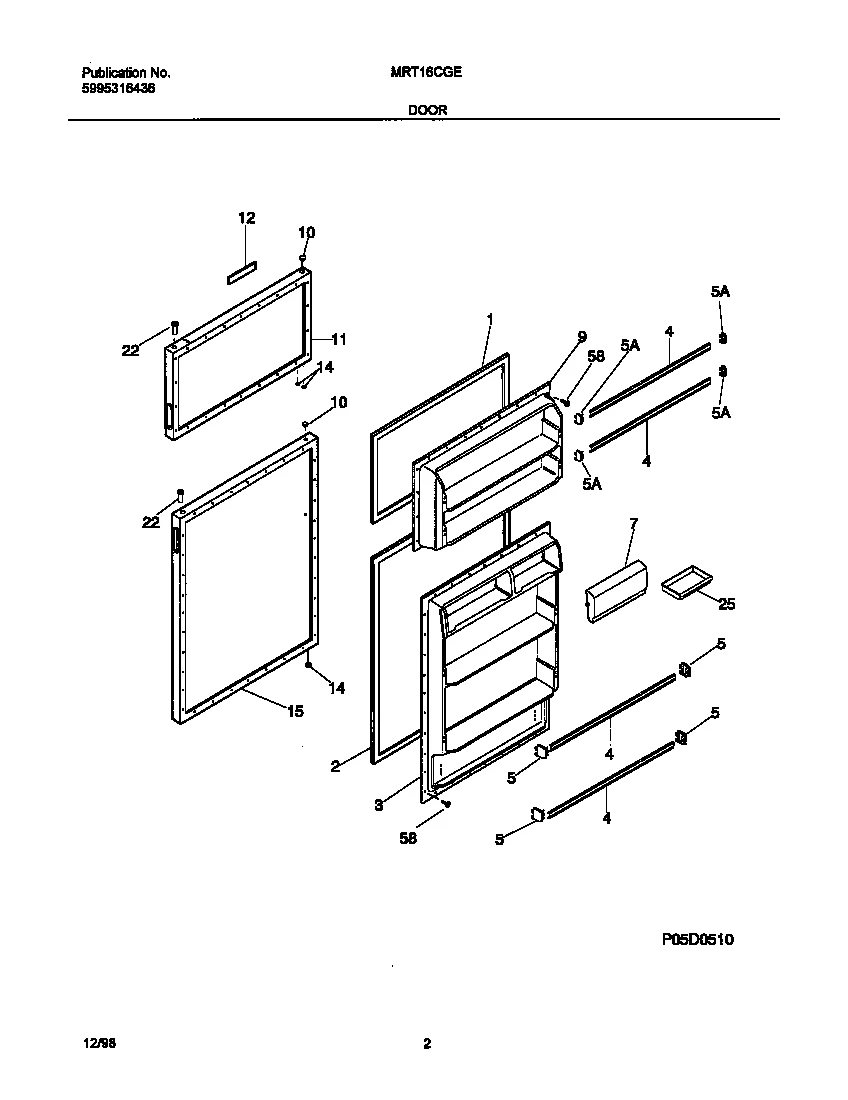

DOOR
Parts in DOOR
18 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | GASKET-FRZR DOOR, ALMOND, MAGNETIC | Discontinued |
| 2 |  | 218730603replaces 5318680311 GASKET-REFR DOOR, MAGNETIC, WHITE | $30.97 Part Advantage |
| 3 |  | 218359001NLA PANEL-INNER DOOR, REFR | Discontinued |
| 4 |  | 215366002replaces 218027017 RACK-DOOR,22.20`` X 1.62`` | $30.97 Part Advantage |
| 5 |  | 215473602replaces 215473601 SUPPORT-DOOR RACK, RH/LH | $2.57 Part Advantage |
| 5 |  | SUPPPORT, DOOR RACK, ``2, LITER``, RH/LH | $2.21 Part Advantage |
| 7 |  | 218287801NLA DOOR-DAIRY, 10.71`` WIDE, WHITE, NO GRAPHICS | Discontinued |
| 9 | | PANEL-INNER DOOR, FRZR | - |
| 10 | | 5308000134NLA PLUG, BUTTON, HINGE BEARING HOLE, WHITE | Discontinued |
| 11 | | 5303917899replaces 218615701 PANEL-FRZR DOOR, WHITE, WITH HANDLES &, FOAM INSULATION | - |
| 12 | – | 218504703 NAMEPLATE ASSY, WHITE, W/MTG TAPE | - |
| 14 |  | 240494001replaces 5308000090 BUTTON-PLUG (8)-WHITE (NON-ILLUSTRATED) | $9.83 Part Advantage |
| 15 | – | 218615801 PANEL-REFR DOOR, WHITE, WITH HANDLES, INSUL, & BRACE | - |
| 22 | | 218519300NLA BEARING-HINGE | Discontinued |
| 25 |  | DISH-BUTTER OPTIONAL ACCESSORY | - |
| 58 | | SCREW, 10 PAN HEAD, 8-18 X 0.500 | - |
| *94200 | | 5315340712NLA TAPE, ADHESIVE, 12`` LG, FOAM, DOUBLE-FACED, (NON-ILLUSTRED, (NON-ILLUSTRATED) | Discontinued |
| *94201 | | 5303917276NLA INSULATION-DOOR, FIBERGLASS, (BULK) (IF POSSIBEL, USE DO | Discontinued |
