Model
Universal MRT18CHAA0-23
Refrigerator, Top Mount
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelUniversal
MRT18CHAA0-23Refrigerator, Top Mount
6 diagrams150 parts
Parts Sections (6)
Diagram

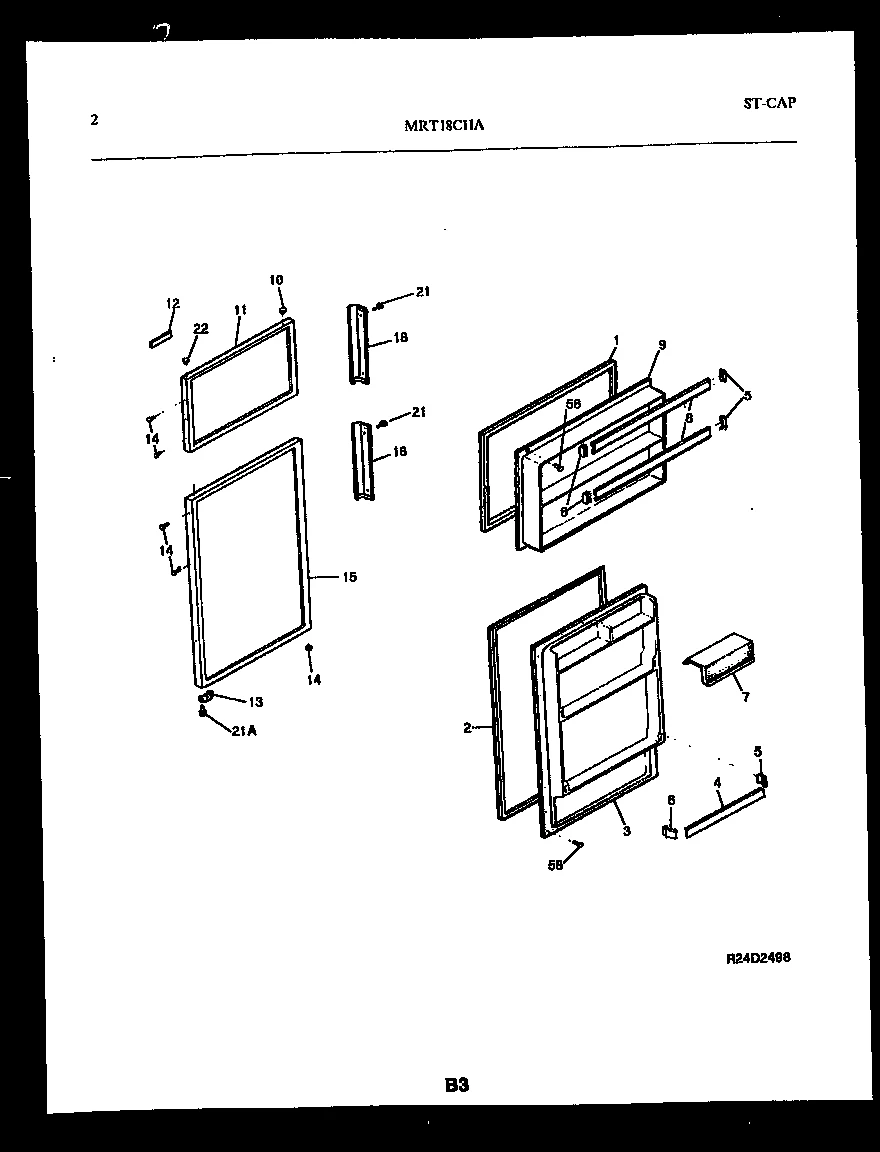

DOOR PARTS
Parts in DOOR PARTS
25 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | GASKET-FRZR DOOR, MAGNETIC, WHITE | - |
| 2 |  | GASKET-REFR DOOR, WHITE, MAGNETIC | $100.84 Part Advantage |
| 3 | | PANEL-INNER DOOR, REFR | - |
| 4 |  | RACK-DOOR, (2) | - |
| 5 |  | 5303207230NLA SUPPORT-DOOR RACK, RH, (4) | Discontinued |
| 6 |  | SUPPORT-DOOR RACK, LH, (4) | $15.76 ApplianceParts Pro |
| 7 | | 5303299996replaces 5303290741 DOOR - DAIRY | - |
| 8 | | 5303281481replaces 5303281482 RACK-DOOR, (2) | - |
| 9 | – | 5303207343 PANEL-INNER DOOR, FRZR | - |
| 10 | | 5303001308NLA PLUG, BUTTON, HINGE BEARING HOLE, ALMOND | Discontinued |
| 10 | | 5308000134NLA PLUG, BUTTON, HINGE BEARING HOLE, WHITE | Discontinued |
| 11 | – | 5303917167 PANEL, FRZR DOOR, WHITE | - |
| 11 | – | 5303917168 PANEL, FRZR DOOR, ALMOND | - |
| 12 | – | 5303276130 NAMEPLATE FRAME ASSY, W/ TAPE | - |
| 13 |  | DOOR STOP, REFR/FRZR, (2) (NON-ILLUSTRATED) | - |
| 14 | | 240494004replaces 5308000181 PLUG, BUTTON, HANDLE/DOOR STOP, ALMOND | - |
| 14 |  | 240494001replaces 5308000090 BUTTON-PLUG (8)-WHITE (NON-ILLUSTRATED) | $9.83 Part Advantage |
| 15 | – | 5303917170 PANEL, REFR DOOR, ALMOND | - |
| 15 | – | 5303917169 PANEL, REFR DOOR, WHITE | - |
| 18 | | 215164904NLA HANDLE - DOOR, 8`` LONG, BLACK VINYL | Discontinued |
| 21 | | SCREW | - |
| 21 | | SCREW, HANDLE MOUNTING, 8 CR TRUSS HEAD, 10(D) X 1/2 | - |
| 22 | | 3206153NLA BEARING-HINGE, REFR | Discontinued |
| 58 |  | 5304455651replaces 5308002748 SCREW | $7.77 Part Advantage |
| *66203 | | INSULATION-DOOR, FIBERGLASS, (BULK) (USE DOOR DYKE INSUL | Discontinued |
