Model
Universal MRT18JZBY0
Refrigerator, Top Mount
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelUniversal
MRT18JZBY0Refrigerator, Top Mount
5 diagrams159 parts
Parts Sections (5)
Diagram

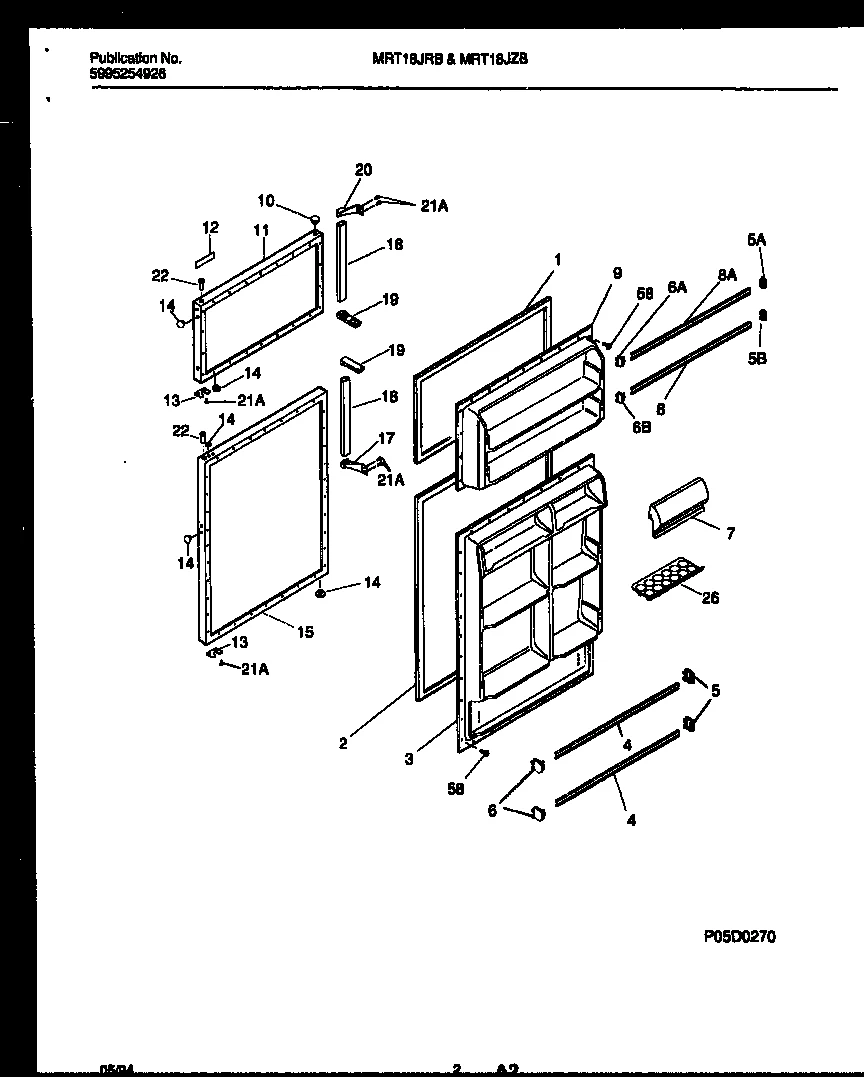

DOOR PARTS
Parts in DOOR PARTS
29 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | GASKET-FRZR DOOR, ALMOND, MAGNETIC | Discontinued |
| 2 |  | 5303207345replaces 5303288239 GASKET-REFR DOOR, ALMOND, MAGNETIC | $100.84 Part Advantage |
| 3 | | PANEL-INNER DOOR, REFR | - |
| 4 |  | 215366002replaces 215366021 RACK-DOOR, 24.38`` X 1.62`` | $30.97 Part Advantage |
| 5 |  | SUPPORT-DOOR RACK, EXTENDS 1/81``, RH | - |
| 5A |  | SUPPORT-DOOR RACK, EXTENDS 1.06``, RH | $4.42 Part Advantage |
| 5B | | 3206161NLA SUPPORT-DOOR RACK,EXTENDS 1.06`` ,RH ,W/MTG HOOKS | Discontinued |
| 6 | | 3206151NLA SUPPORT-DOOR RACK, EXTENDS 1.81``, LH | Discontinued |
| 6A |  | SUPPORT-DOOR RACK, EXTENDS 1.06``, LH | $5.72 Part Advantage |
| 6B | | 3206162NLA SUPPORT-DOOR RACK,EXTENDS 1.06`` ,LH ,W/MTG HOOKS | Discontinued |
| 7 | – | 5303305166 DOOR-DAIRY | - |
| 8 | | 215366002replaces 215366020 RACK-DOOR, 24.00`` X 1.62`` | $30.97 Part Advantage |
| 8A |  | 5303300237NLA RACK-DOOR, 23.97`` X 1.12`` | Discontinued |
| 9 | – | 5303295730 PANEL-INNER DOOR, FRZR | - |
| 10 | | 5303001308NLA PLUG, BUTTON, HINGE BEARING HOLE, ALMOND | Discontinued |
| 11 | – | 5303917426 PANEL-FRZR DOOR, ALMOND, W/ INSULATION | - |
| 12 | – | 215503711 NAMEPLATE/FRAME, ALMOND, W/ MTG TAPE | - |
| 13 |  | DOOR STOP, REFR/FRZR, (2) (NON-ILLUSTRATED) | - |
| 14 | | 240494004replaces 5308000181 PLUG, BUTTON, HANDLE/DOOR STOP, ALMOND | - |
| 15 | – | 5303917428 PANEL-REFR DOOR, ALMOND, W/ INSULATION | - |
| 17 | | 5303001015NLA END - HANDLE BOTTOM | Discontinued |
| 18 | – | 5303290367 HANDLE-DOOR, BLACK VINYL | - |
| 19 |  | END-HANDLE BOTTOM | - |
| 20 | | END - HANDLE TOP | - |
| 21A | | SCREW | - |
| 22 | | 3206153NLA BEARING-HINGE, REFR | Discontinued |
| 26 |  | TRAY-EGG ACCESSORY - NOT ORIGINAL EQUIPMENT | $10.02 Parts Dr |
| 58 |  | 5304455651replaces 5308002748 SCREW | $7.77 Part Advantage |
| *10185 | | 5303917276NLA INSULATION-DOOR, FIBERGLASS, (BULK) (IF POSSIBEL, USE DO | Discontinued |
