Model
Universal MRT19TNBZ1
Refrigerator, Top Mount
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelUniversal
MRT19TNBZ1Refrigerator, Top Mount
7 diagrams219 parts
Parts Sections (7)
Diagram

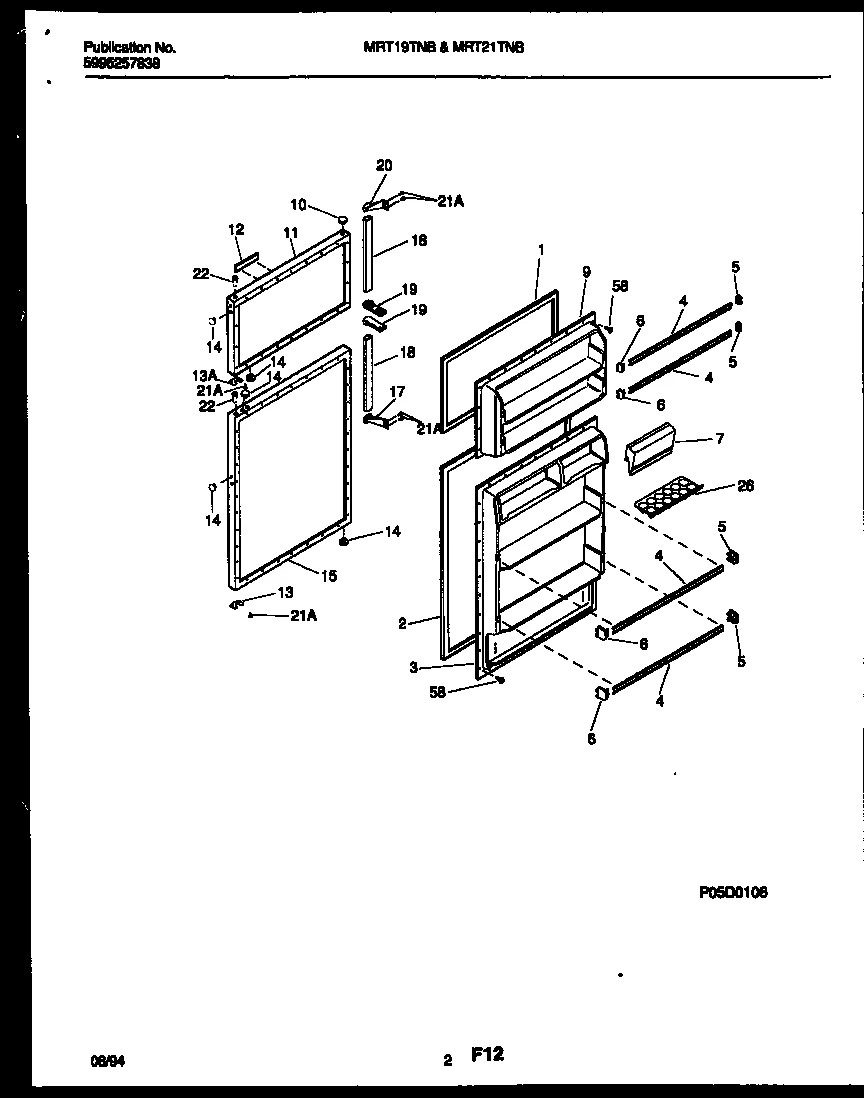

DOOR PARTS
Parts in DOOR PARTS
26 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | GASKET-FRZR DOOR,WHITE,MAGNETIC | Discontinued |
| 2 |  | 218730609replaces 215732413 GASKET-REFR DOOR, WHITE, MAGNETIC | - |
| 3 | – | 5303206569 INNER PANEL-REFRIGERATOR | - |
| 4 |  | 5303281388NLA RACK-DOOR, REFR SECTION, (2) | Discontinued |
| 5 | | SUPPORT-DOOR RACK, RH, (3) | $27.17 RepairClinic |
| 6 |  | SUPPORT-DOOR RACK, LH, (3) | $24.36 RepairClinic |
| 7 | | 5303304564replaces 5303303599 DOOR DAIRY | - |
| 9 | – | 5303206550 PANEL-INNER DOOR, REFR | - |
| 10 | | 5308000134NLA PLUG, BUTTON, HINGE BEARING HOLE, WHITE | Discontinued |
| 11 | – | 5303917421 PANEL-FRZR DOOR, WHITE, W/ INSULATION | - |
| 12 | | NAMEPLATE/FRAME, WHITE, W/ MTG TAPE | - |
| 12A | | 5315340712NLA TAPE, ADHESIVE, 12`` LG, FOAM, DOUBLE-FACED, (NON-ILLUSTRED, (NON-ILLUSTRATED) | Discontinued |
| 12B | | TAPE, ADHESIVE, 60`` LG, FOAM, TRIM / NAMEPLATE, DOUBLE FACED (NON-ILLUSTRATED) | - |
| 13 | | STOP-REFRIGERATOR DOOR (1) (NON-ILLUSTRATED) | - |
| 13A |  | DOOR STOP, REFR/FRZR, (2) (NON-ILLUSTRATED) | - |
| 14 |  | 240494001replaces 5308000090 BUTTON-PLUG (8)-WHITE (NON-ILLUSTRATED) | $9.83 Part Advantage |
| 15 | – | 3916425 PANEL-REFR DOOR, WHITE, WITH INSULATION, & CROSS BRACES | - |
| 17 | | 5303001015NLA END - HANDLE BOTTOM | Discontinued |
| 18 |  | HANDLE-DOOR, WHITE | - |
| 19 |  | END-HANDLE BOTTOM | - |
| 20 | | END - HANDLE TOP | - |
| 21A | | SCREW | - |
| 22 | | 3206153NLA BEARING-HINGE, REFR | Discontinued |
| 26 |  | TRAY-EGG ACCESSORY - NOT ORIGINAL EQUIPMENT | $10.02 Parts Dr |
| 58 |  | 5304455651replaces 5308002748 SCREW | $7.77 Part Advantage |
| *11017 | | 5303917276NLA INSULATION-DOOR, FIBERGLASS, (BULK) (IF POSSIBEL, USE DO | Discontinued |
