Model
Universal MRT21PNBY0
Refrigerator, Top Mount
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelUniversal
MRT21PNBY0Refrigerator, Top Mount
6 diagrams173 parts
Parts Sections (6)
Diagram

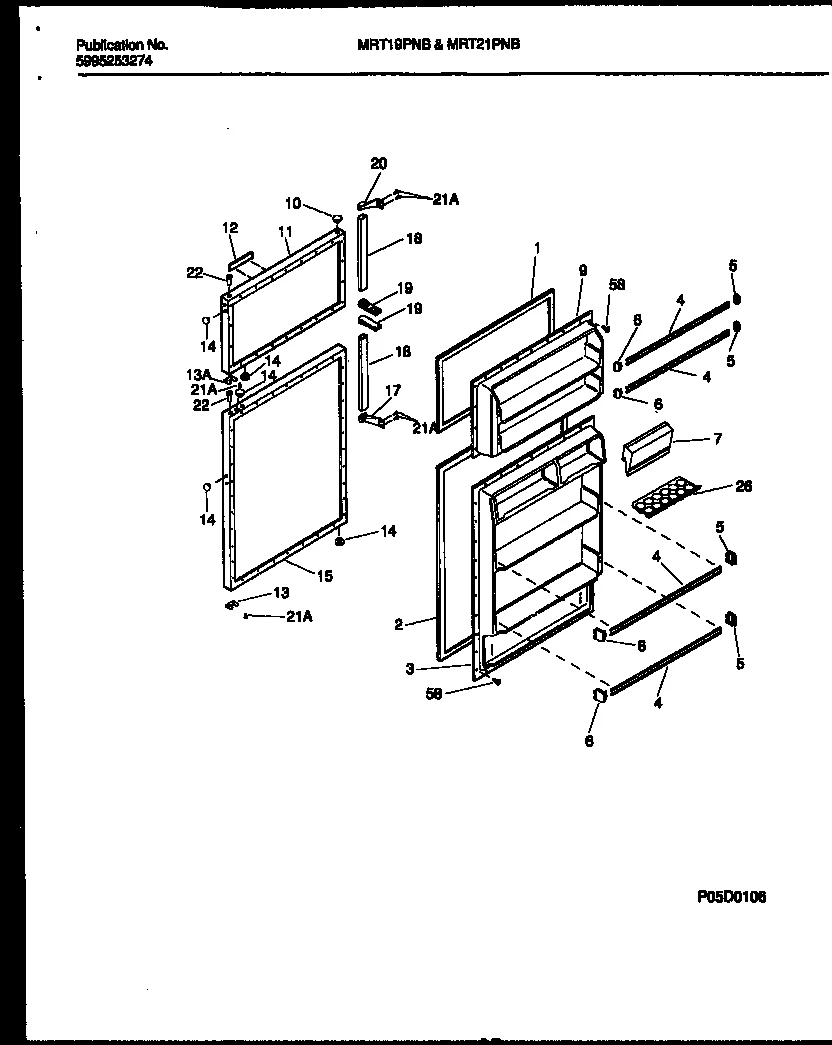

DOOR PARTS
Parts in DOOR PARTS
24 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | GASKET-FRZR DOOR, MAGNETIC, ALMOND | - |
| 2 | | 5303275772NLA GASKET-REFR DOOR, MAGNETIC, ALMOND | Discontinued |
| 3 | | PANEL-INNER DOOR, REFR | - |
| 4 | | 5303281388NLA RACK-DOOR, REFR SECTION, (2) | Discontinued |
| 5 | | SUPPORT-DOOR RACK, RH, (3) | $27.17 RepairClinic |
| 6 |  | SUPPORT-DOOR RACK, LH, (3) | $24.36 RepairClinic |
| 7 | | 5303304564replaces 5303303599 DOOR DAIRY | - |
| 9 | | PANEL-INNER DOOR, FRZR | - |
| 10 | | 5303001308NLA PLUG, BUTTON, HINGE BEARING HOLE, ALMOND | Discontinued |
| 11 | – | 5303917424 PANEL-FRZR DOOR, ALMOND, W/INSULATION | - |
| 12 | – | 215503711 NAMEPLATE/FRAME, ALMOND, W/ MTG TAPE | - |
| 13 | | STOP-REFRIGERATOR DOOR (1) (NON-ILLUSTRATED) | - |
| 13A |  | DOOR STOP, REFR/FRZR, (2) (NON-ILLUSTRATED) | - |
| 14 | | 240494004replaces 5308000181 PLUG, BUTTON, HANDLE/DOOR STOP, ALMOND | - |
| 15 | – | 3916428 PANEL-REFR DOOR, ALMOND, WITH INSULATION, & CROSS BRACES | - |
| 17 | | 5303001015NLA END - HANDLE BOTTOM | Discontinued |
| 18 | | 5303302991NLA HANDLE DOOR, ALMOND | Discontinued |
| 19 |  | END-HANDLE BOTTOM | - |
| 20 | | END - HANDLE TOP | - |
| 21A | | SCREW | - |
| 22 | | 5308012007NLA HINGE BEARING - LOWER (NON-ILLUSTRATED) | Discontinued |
| 26 |  | TRAY-EGG ACCESSORY - NOT ORIGINAL EQUIPMENT | $10.02 Parts Dr |
| 58 |  | 5304455651replaces 5308002748 SCREW | $7.77 Part Advantage |
| *10281 | | 5303917276NLA INSULATION-DOOR, FIBERGLASS, (BULK) (IF POSSIBEL, USE DO | Discontinued |
