Model
Universal MRT24NRCD0
Refrigerator, Top Mount
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelUniversal
MRT24NRCD0Refrigerator, Top Mount
4 diagrams183 parts
Parts Sections (4)
Diagram

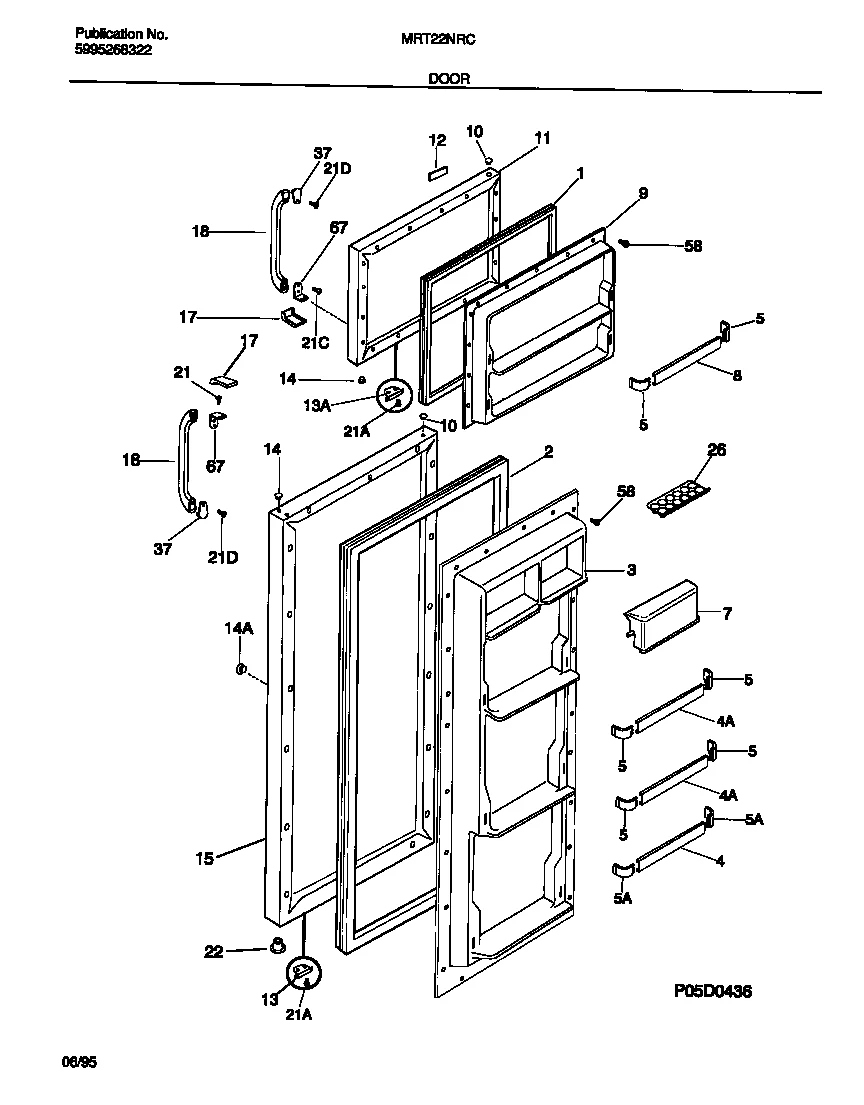

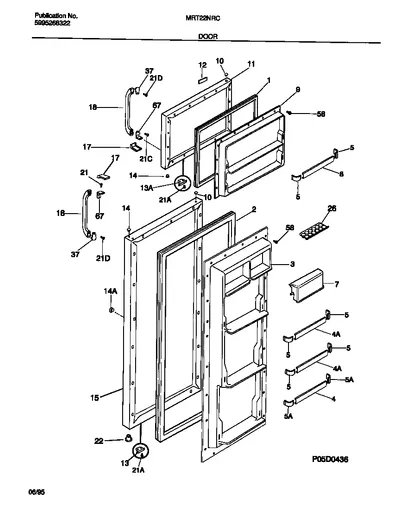

DOOR
Parts in DOOR
31 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 215776704 GASKET-FRZR DOOR, ALMOND, MAGNETIC | - |
| 2 | – | 215732408 GSKET, REFR DOOR, ALMOND, MAGNETIC | - |
| 3 | – | 218499001 PANEL-INNER DOOR, REFR | - |
| 4 |  | 215366002replaces 215366003 RACK-DOOR, (2) | $30.97 Part Advantage |
| 4 | | RACK-DOOR | $30.97 Part Advantage |
| 5 |  | SUPPPORT, DOOR RACK, ``2, LITER``, RH/LH | $2.21 Part Advantage |
| 5 |  | SUPPORT-DOOR RACK, ``GALLON``, RH/LH | - |
| 7 | – | 215002809 DOOR-DAIRY | - |
| 8 | | 215366002replaces 215366004 RACK-DOOR, (2) | $30.97 Part Advantage |
| 9 | – | 215252001 PANEL-INNER DOOR, FRZR | - |
| 10 | | PLUG-BUTTON, ALMOND, HINGE BRG HOLE | - |
| 11 | – | 215674811 PANEL-FRZR DOOR, ALMOND, W/FOAM INSULATN | - |
| 12 | – | 215220211 FRAME-NAMEPLATE, ALMOND | - |
| 12 | | MAGNET-NAMEPLATE (NOT ILLUSTRATED) | - |
| 13 | – | 215030011 DOOR STOP, ALMOND, FRZR | - |
| 13 | | DOOR STOP, REFR DOOR | - |
| 14 | – | 215562111 PLUG-BUTTON, ALMOND, REFR DOOR FRONT (NON-ILLUSTRATED) | - |
| 14 | – | 215352111 PLUG-BUTTON, ALMOND, HANDLE MTG | - |
| 15 | – | 215674911 PANEL-REFR DOOR, ALMOND, W/ FOAM INSULATN | - |
| 17 | – | 215361311 HANDLE END, ALMOND | - |
| 18 | – | 215339611 HANDLE-DOOR, ALMOND | - |
| 21 | – | 215659600 SCREW-HANDLE MTG,HEX HEAD ,10-32 X 0.500 | - |
| 21 | – | 215416100 SCREW-HANDLE/BRKT, FLAT HEAD, CR, 10-32 X 7/16 | - |
| 21 | – | 215201400 SCREW-HANDLE MTG, FLAT HEAD, TORX, 8-18(AB) X 5/8, (8) | - |
| 21 |  | SCREW-DOOR STOP MTG, PHL TRUSS HD, 10-16 X 3/4, BUMPER M | - |
| 22 |  | 5303289320NLA BEARING-HINGE | Discontinued |
| 26 |  | TRAY-EGG ACCESSORY - NOT ORIGINAL EQUIPMENT | $10.02 Parts Dr |
| 37 | – | 215361411 TRIM, HANDLE, ALMOND | - |
| 58 |  | 5304455651replaces 5308002748 SCREW | $7.77 Part Advantage |
| 67 | | BRACKET-HANDLE MTG,(2) | - |
| *92686 | | 5303917276NLA INSULATION-DOOR, FIBERGLASS, (BULK) (IF POSSIBEL, USE DO | Discontinued |
