Model
Universal MRT26NNBZ0
Refrigerator, Top Mount
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelUniversal
MRT26NNBZ0Refrigerator, Top Mount
6 diagrams190 parts
Parts Sections (6)
Diagram

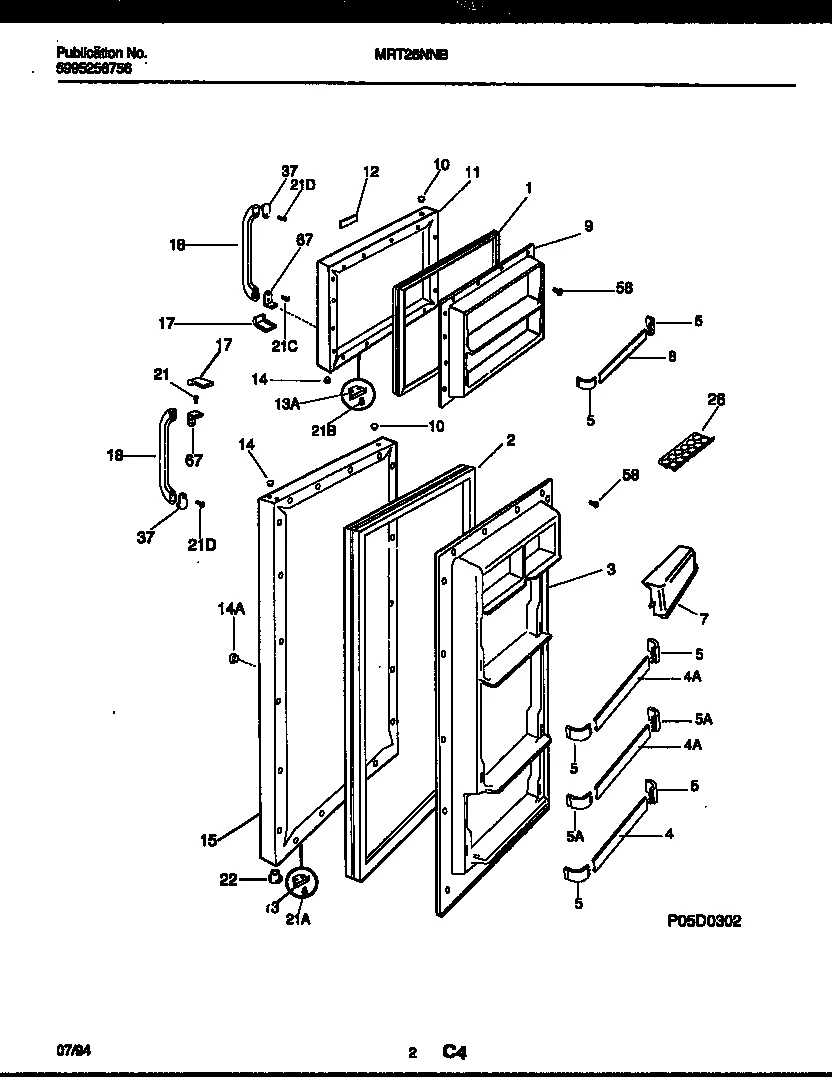

DOOR PARTS
Parts in DOOR PARTS
32 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 215776714 GASKET-FRZR DOOR, WHITE, MAGNETIC | - |
| 2 |  | 218730617replaces 215732418 GASKET-REFR DOOR, WHITE, MAGNETIC | - |
| 3 | – | 215389601 PANEL-INNER DOOR, REFR | - |
| 4 |  | RACK-DOOR | $30.97 Part Advantage |
| 4A | | 215366002replaces 215366003 RACK-DOOR, (2) | $30.97 Part Advantage |
| 5 |  | SUPPPORT, DOOR RACK, ``2, LITER``, RH/LH | $2.21 Part Advantage |
| 5A | | SUPPORT-DOOR RACK, ``GALLON``, RH/LH | - |
| 7 | – | 215002809 DOOR-DAIRY | - |
| 8 | | 215366002replaces 215366004 RACK-DOOR, (2) | $30.97 Part Advantage |
| 9 | – | 215252001 PANEL-INNER DOOR, FRZR | - |
| 10 | | PLUG-BUTTON, WHITE, HINGE BRG HOLE | - |
| 11 | – | 215674801 PANEL-FRZR DOOR, WHITE, W/FOAM INSULATN | - |
| 12 | – | 215220201 FRAME-NAMEPLATE, WHITE | - |
| 12A | | MAGNET-NAMEPLATE (NOT ILLUSTRATED) | - |
| 13 | | DOOR STOP, REFR DOOR | - |
| 13A | | DOOR STOP, WHITE, FRZR | - |
| 14 |  | PLUG-BUTTON, WHITE, HANDLE MTG | Discontinued |
| 14A | – | 215562101 PLUG-BUTTON, WHITE, REFR DOOR FRONT (NON-ILLUSTRATED) | - |
| 15 | – | 215674901 PANEL-REFR DOOR, WHITE, W/ FOAM INSULATN | - |
| 17 | | HANDLE END, WHITE | - |
| 18 | | HANDLE-DOOR, WHITE | - |
| 21 | – | 215201400 SCREW-HANDLE MTG, FLAT HEAD, TORX, 8-18(AB) X 5/8, (8) | - |
| 21A | | 215218600NLA SCREW-DOOR STOP MTG, FLAT HEAD TORX, 10-16 X 3/4 | Discontinued |
| 21B | | SCREW-DOOR STOP MTG, TORX FLAT HEAD, 10-16 X 3/4 | - |
| 21C | – | 215416100 SCREW-HANDLE/BRKT, FLAT HEAD, CR, 10-32 X 7/16 | - |
| 21D | – | 215659600 SCREW-HANDLE MTG,HEX HEAD ,10-32 X 0.500 | - |
| 22 |  | 5303289320NLA BEARING-HINGE | Discontinued |
| 26 |  | TRAY-EGG ACCESSORY - NOT ORIGINAL EQUIPMENT | $10.02 Parts Dr |
| 37 | | TRIM, HANDLE, WHITE | - |
| 58 |  | 5304455651replaces 5308002748 SCREW | $7.77 Part Advantage |
| 67 | | BRACKET-HANDLE MTG,(2) | - |
| *10693 | | 5303917276NLA INSULATION-DOOR, FIBERGLASS, (BULK) (IF POSSIBEL, USE DO | Discontinued |
