Model
Electrolux SFRRSRKIT
Freezer Accessory, Trim Kit
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelElectrolux
SFRRSRKITFreezer Accessory, Trim Kit
1 diagram13 parts
Parts Sections (1)
Diagram

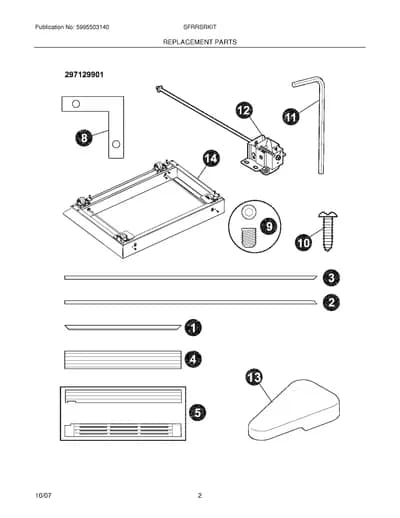

REPLACEMENT PARTS
Parts in REPLACEMENT PARTS
13 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 297032603 Trim,collar ,top | - |
| 2 | – | 297032702 Trim,collar ,tall ,RH | - |
| 3 | – | 297032703 Trim,collar ,tall ,LH | - |
| 4 | – | 297032803 Grill,top | - |
| 5 | – | 297126200 Kickplate Assembly,bottom | - |
| 8 |  | Bracket,corner ,(2) | - |
| 9 | | Screw,set ,No.10-32 x .25 ,(4) | - |
| 10 |  | 131420300replaces 5303302714 SCREW, 8-18 X 3/4, ACCESS PANEL, (2) | $8.78 Parts Dr |
| 11 |  | Key,hex ,3/32`` x 2-3/32`` | Discontinued |
| 12 | | Roller,adjustable ,front ,(2) | - |
| 13 | | Cover,hinge ,top | Discontinued |
| 14 | – | 297112700 Riser,assembly | - |
| NI | | Instructions,installation | - |
