Model
Tappan TDB210RFB5
Dishwasher, Built-In, 24 Inch
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TDB210RFB5Dishwasher, Built-In, 24 Inch
6 diagrams88 parts
Parts Sections (6)
Diagram

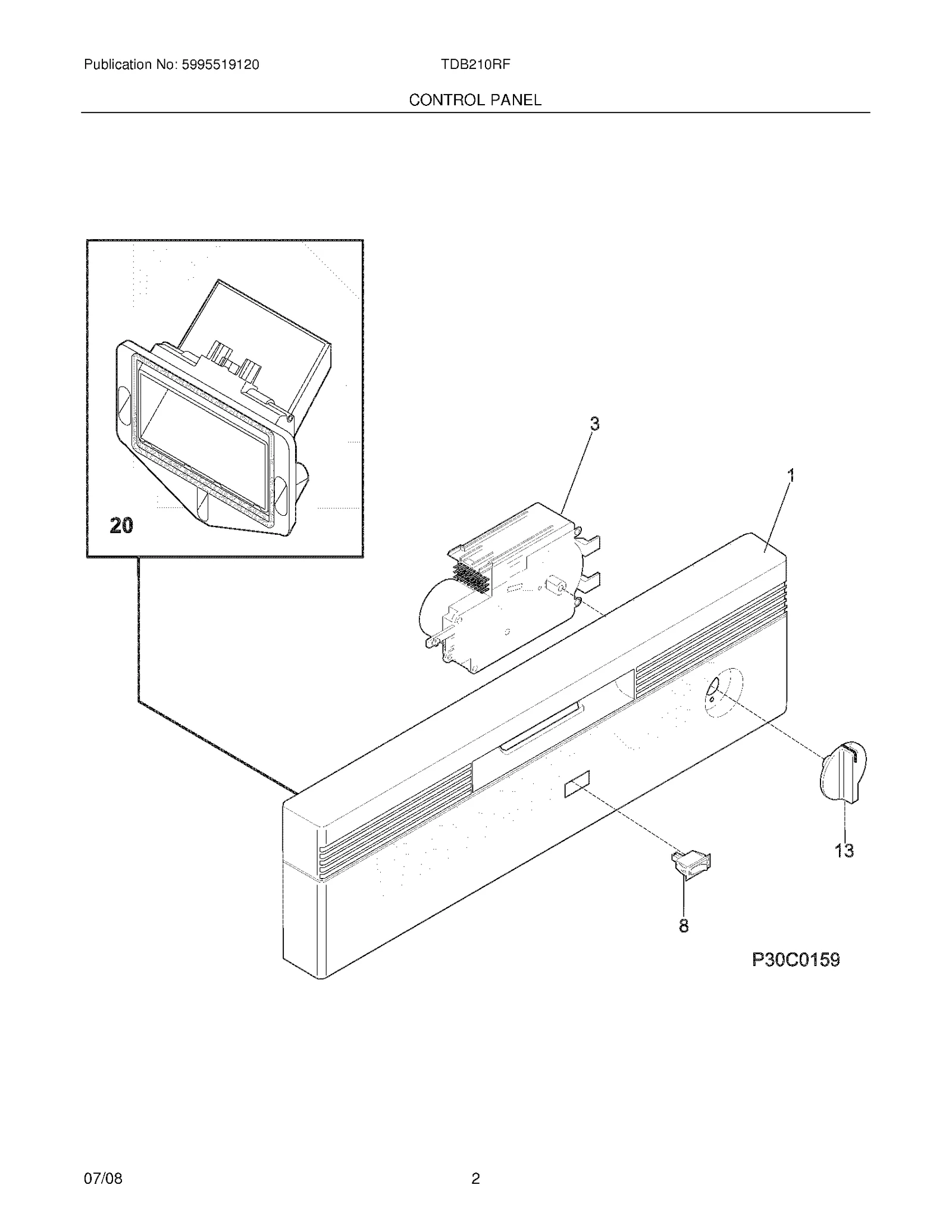

CONTROL PANEL
Parts in CONTROL PANEL
11 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 154667303 Panel,control ,black ,w/graphics | - |
| 3 |  | Timer | - |
| 8 |  | SWITCH, ROCKER/SELECTOR (BLACK) | - |
| 13 |  | KNOB, TIMER (BLACK) | $54.24 PartSelect |
| 20 | | 154433001NLA VENT ASSY, STATIC DRY | Discontinued |
| NI |  | 154793401replaces 154436201 SCREW, DRY DUCT, (3) | - |
| NI | | SCREW-TIMER, THREAD ROLLING, (2) (NOT ILLUSTRATED) | - |
| NI | – | 154678501 Energy guide label | - |
| NI | | 154131204NLA SHIELD-TIMER (NON-ILLUSTRATED) | Discontinued |
| NI |  | 154779601replaces 5303318719 SCREW,(3) ,TIMER MTG. | $1.95 ApplianceParts Pro |
| NI | – | 154645901 Harness,wiring ,main | - |
