Model
Tappan TDB210RFS1
Dishwasher, Built-In, 24 Inch
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TDB210RFS1Dishwasher, Built-In, 24 Inch
6 diagrams87 parts
Parts Sections (6)
Diagram

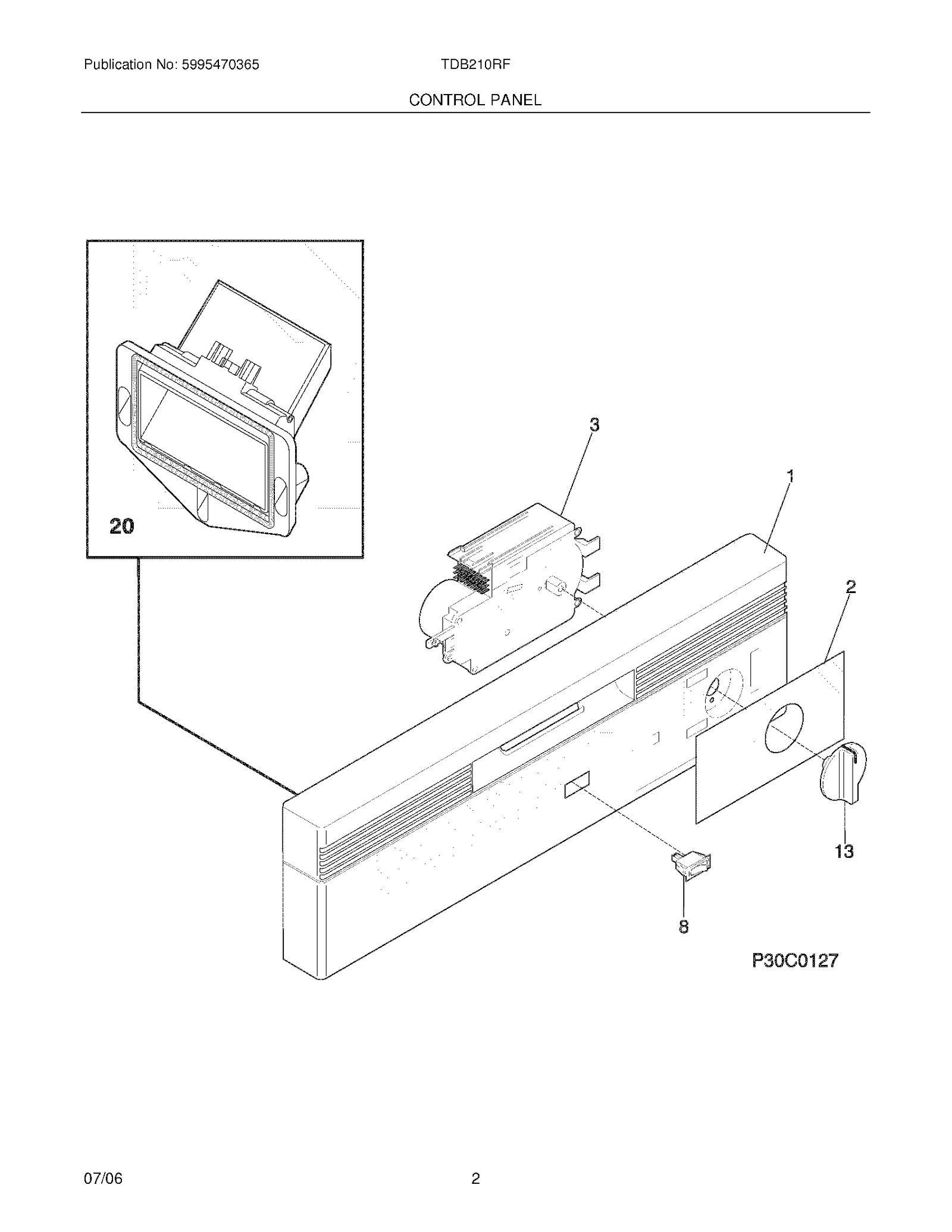

CONTROL PANEL
Parts in CONTROL PANEL
11 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 154587801NLA Panel,control ,white | Discontinued |
| 2 | | Insert,control panel ,white | - |
| 3 | | Timer | - |
| 8 |  | SWITCH, ROCKER/SELECTOR (WHITE) | - |
| 13 |  | 154338301NLA KNOB, TIMER (WHITE) | Discontinued |
| 20 | | 154433001NLA VENT ASSY, STATIC DRY | Discontinued |
| NI | | 154131204NLA SHIELD-TIMER (NON-ILLUSTRATED) | Discontinued |
| NI | | SCREW-TIMER, THREAD ROLLING, (2) (NOT ILLUSTRATED) | - |
| NI |  | 154793401replaces 154436201 SCREW, DRY DUCT, (3) | - |
| NI | – | 154474901 Wiring Harness,main | - |
| NI | – | 154540001 Energy guide label | - |
