Model
Tappan TDB232RBR0
Dishwasher, Built-In, 24 Inch
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TDB232RBR0Dishwasher, Built-In, 24 Inch
7 diagrams130 parts

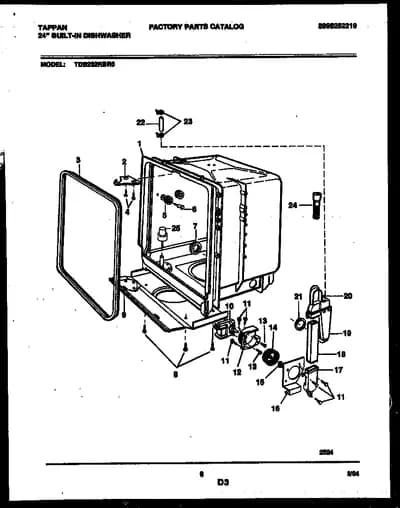

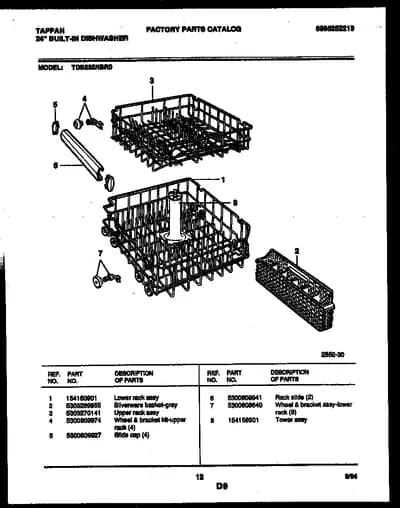

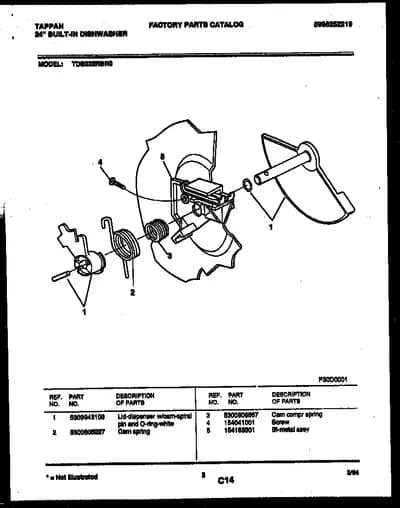

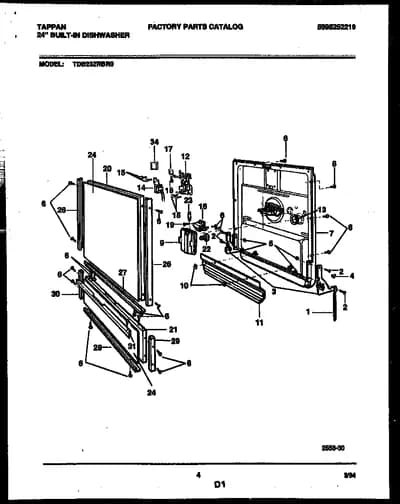

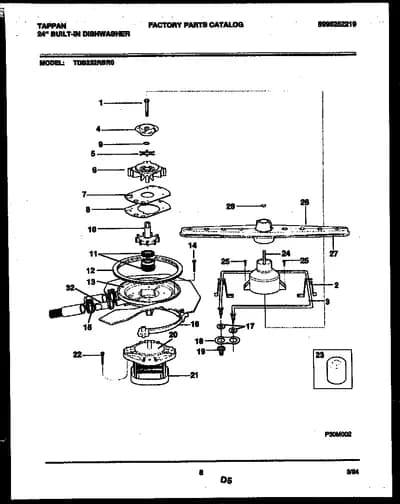

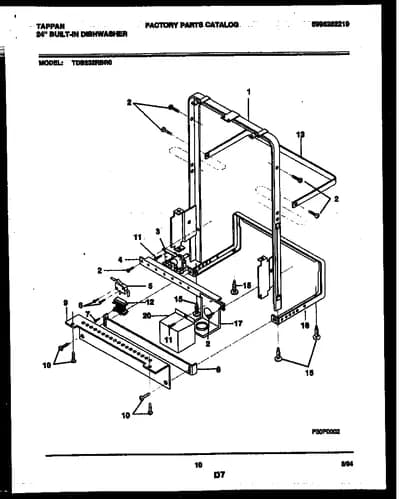

Parts Sections (7)
Diagram

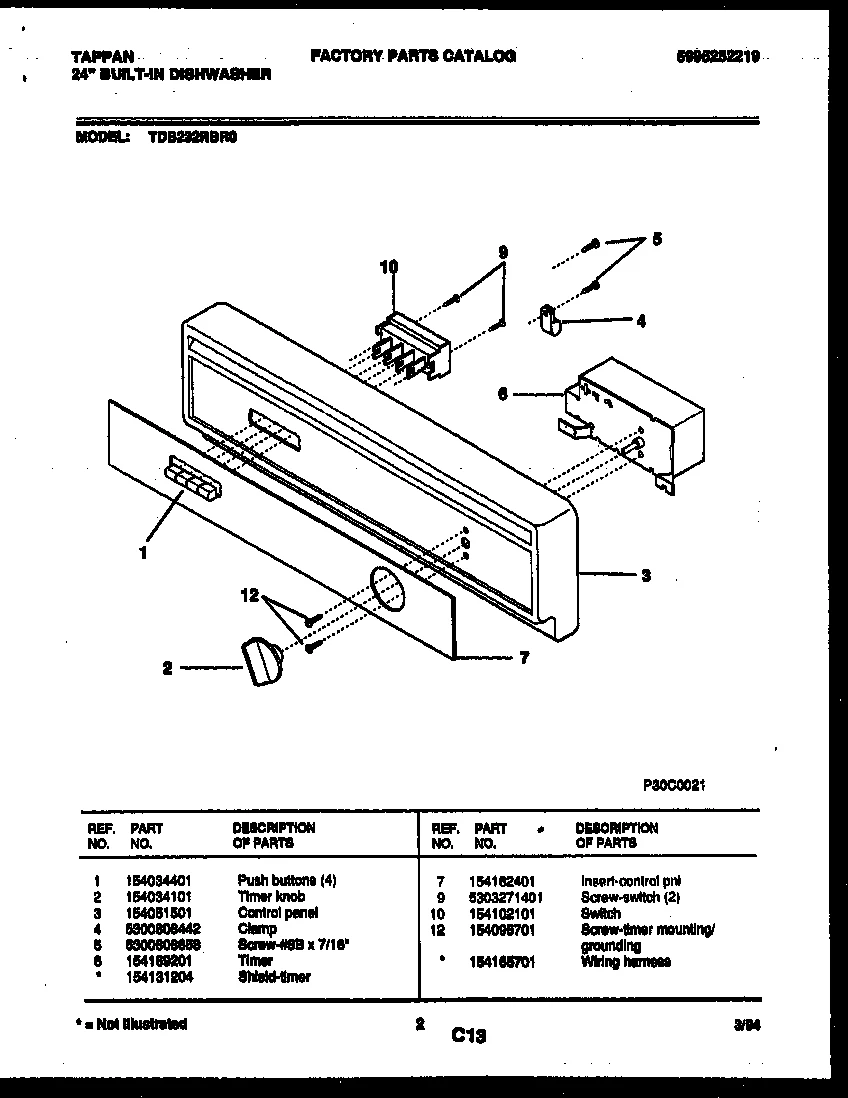

CONSOLE AND CONTROL PARTS
Parts in CONSOLE AND CONTROL PARTS
12 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | PUSH BUTTONS-BLACK (8) | - |
| 2 | | 154034101NLA TIMER KNOB-BLACK | Discontinued |
| 3 | – | 154051501 CONTROL PANEL-BLACK | - |
| 4 |  | 240396801replaces 5300808442 CLAMP (2) (NON-ILLUSTRATED) | $14.76 ApplianceParts Pro |
| 5 |  | 154419403replaces 5300808658 SCREW NO. 8 X 3/8`` LG. C.R. HEX WASHER HD., BLACK | $9.69 ApplianceParts Pro |
| 6 | | TIMER | - |
| 6A | | 154131204NLA SHIELD-TIMER (NON-ILLUSTRATED) | Discontinued |
| 7 | – | 154162401 INSERT-CONTROL PNL | - |
| 9 | | 154095701replaces 5303271401 SCREW-TIMER GROUND (NON-ILLUSTRATED) | - |
| 10 | – | 154102101 SWITCH | - |
| 12 | | SCREW-TIMER, THREAD ROLLING, (2) (NOT ILLUSTRATED) | - |
| *97230 | – | 154165701 WIRING HARNESS | - |
