Model
Tappan TDB647RHB0
Dishwasher, Built-In, 24 Inch
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TDB647RHB0Dishwasher, Built-In, 24 Inch
6 diagrams132 parts

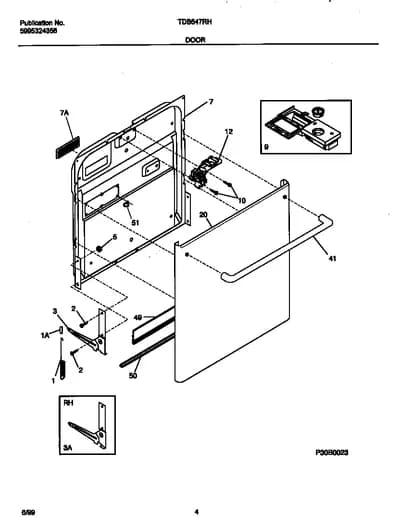

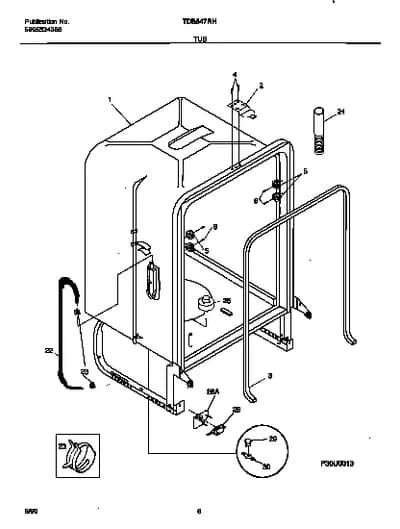

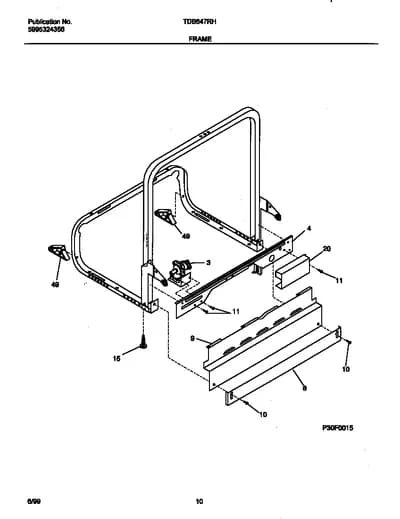

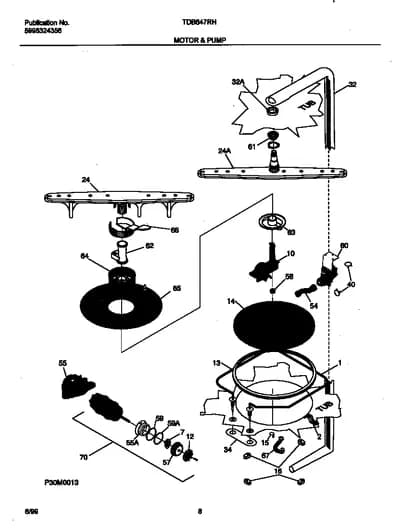

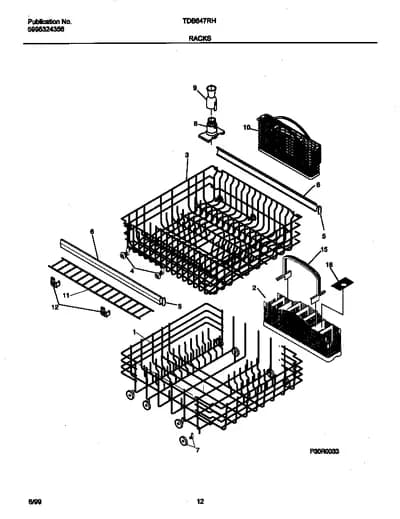

Parts Sections (6)
Diagram

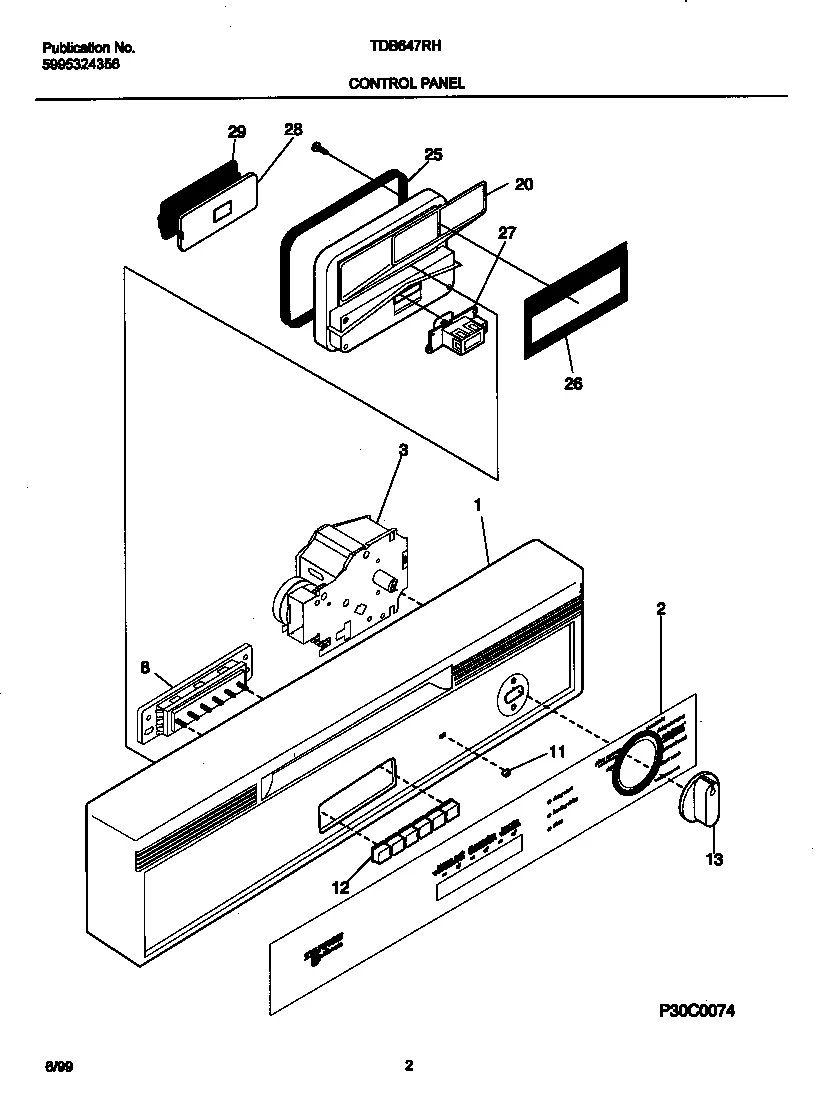

CONTROL PANEL
Parts in CONTROL PANEL
19 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 154368103replaces 154222603 PANEL-CONTROL, BLACK | - |
| 2 | – | 154358603 INSERT-CONTROL PNL,BLACK | - |
| 3 | | 154295701NLA TIMER | Discontinued |
| 8 | | SWITCH-SELECTOR, 6 BUTTON | - |
| 11 | | LENS-RED (2) | - |
| 12 | – | 154253703 PUSHBUTTON, BLACK, (6) | - |
| 13 | | KNOB-TIMER, BLACK | - |
| 20 | | 154283701NLA VAPOR WELDMENT ASSY | Discontinued |
| 25 | | 154303901NLA GASKET-VENT | Discontinued |
| 26 |  | 154229201NLA SEAL-CHAMBER | Discontinued |

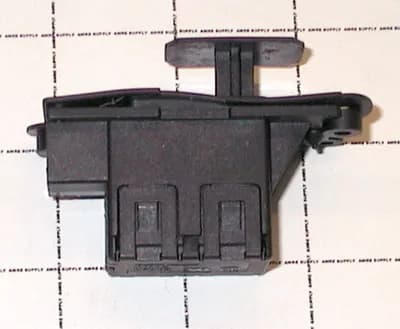

| 27 |  | Actuator,wax | - |
| 28 | | VALVE-VENT | - |
| 29 |  | GASKET-VALVE | - |
| *64440 | – | 154131203 SHIELD-TIMER (NON-ILLUSTRATED) | - |
| *64441 | | SCREW-TIMER, THREAD ROLLING, (2) (NOT ILLUSTRATED) | - |
| *64442 | | SHIELD-SWITCH | - |
| *64443 |  | 154779601replaces 5303318719 SCREW,(3) ,TIMER MTG. | $1.95 ApplianceParts Pro |
| *64444 | – | 154360501 HARNESS-WIRING | - |
| *64445 | | Screw,No.8-10 ,3/8 phillips | - |
