Model
Tappan TDB652RBR0
Dishwasher, Built-In, 24 Inch
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TDB652RBR0Dishwasher, Built-In, 24 Inch
7 diagrams142 parts
Parts Sections (7)

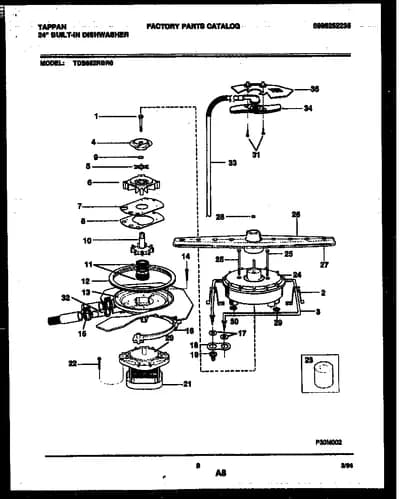

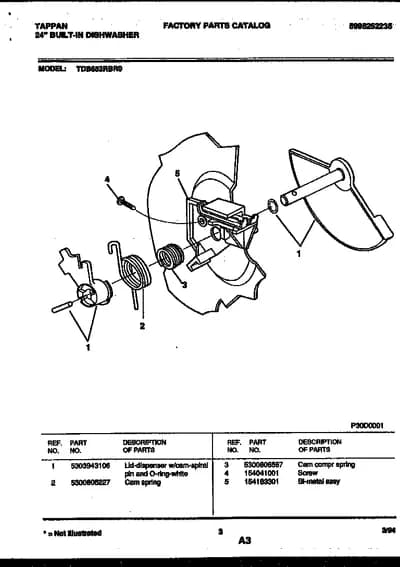

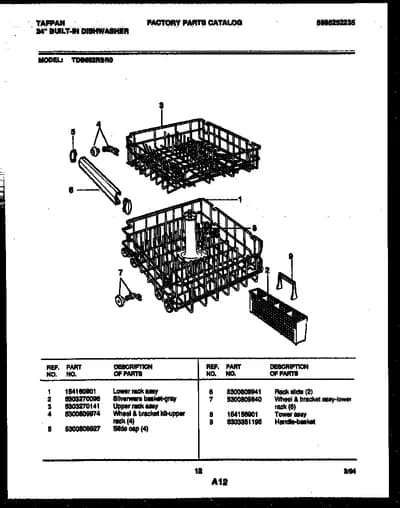

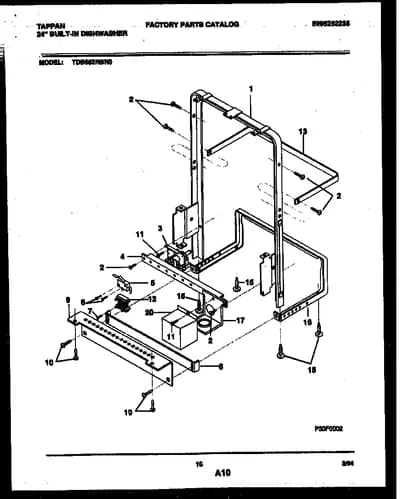

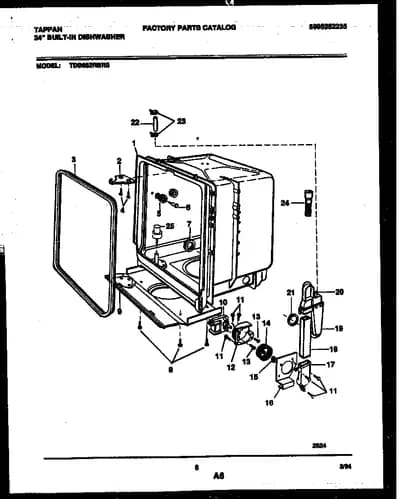

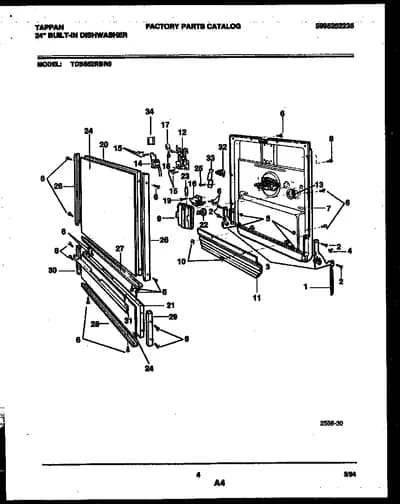

Diagram

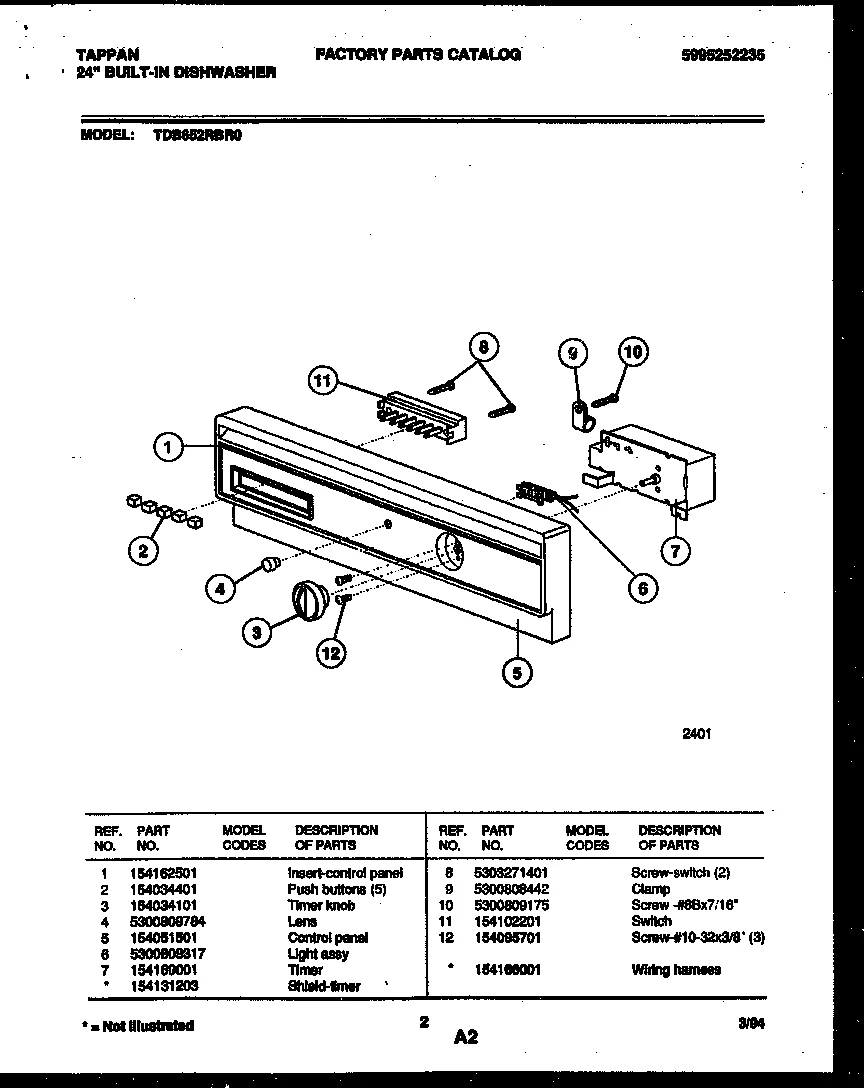

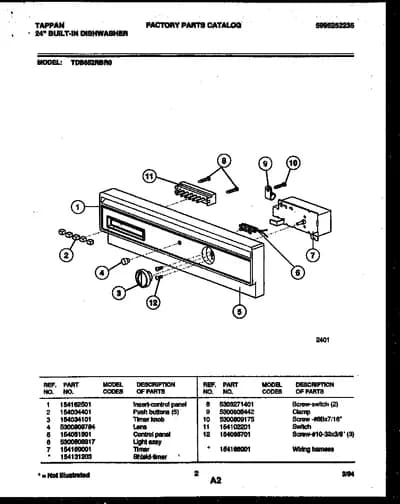

CONSOLE AND CONTROL PARTS
Parts in CONSOLE AND CONTROL PARTS
14 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 154162501 INSERT-CONTROL PANEL | - |
| 2 |  | PUSH BUTTONS-BLACK (8) | - |
| 3 | | 154034101NLA TIMER KNOB-BLACK | Discontinued |
| 4 | | LENS-LIGHT, AMBER | - |
| 5 | – | 154051501 CONTROL PANEL-BLACK | - |
| 6 | | LIGHT ASSEMBLY-PILOT | - |
| 7 | | TIMER | - |
| 7A | – | 154131203 SHIELD-TIMER (NON-ILLUSTRATED) | - |
| 8 | | 154095701replaces 5303271401 SCREW-TIMER GROUND (NON-ILLUSTRATED) | - |
| 9 |  | 240396801replaces 5300808442 CLAMP (2) (NON-ILLUSTRATED) | $14.76 ApplianceParts Pro |
| 10 | | SCREW 8B X 7/16`` | - |
| 11 | | SWITCH | - |
| 12 | | SCREW-TIMER, THREAD ROLLING, (2) (NOT ILLUSTRATED) | - |
| *96940 | | WIRING HARNESS | - |
