Model
Tappan TEB794CBSB
Wall Oven, Micro Combo
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TEB794CBSBWall Oven, Micro Combo
10 diagrams149 parts
Parts Sections (10)
Diagram

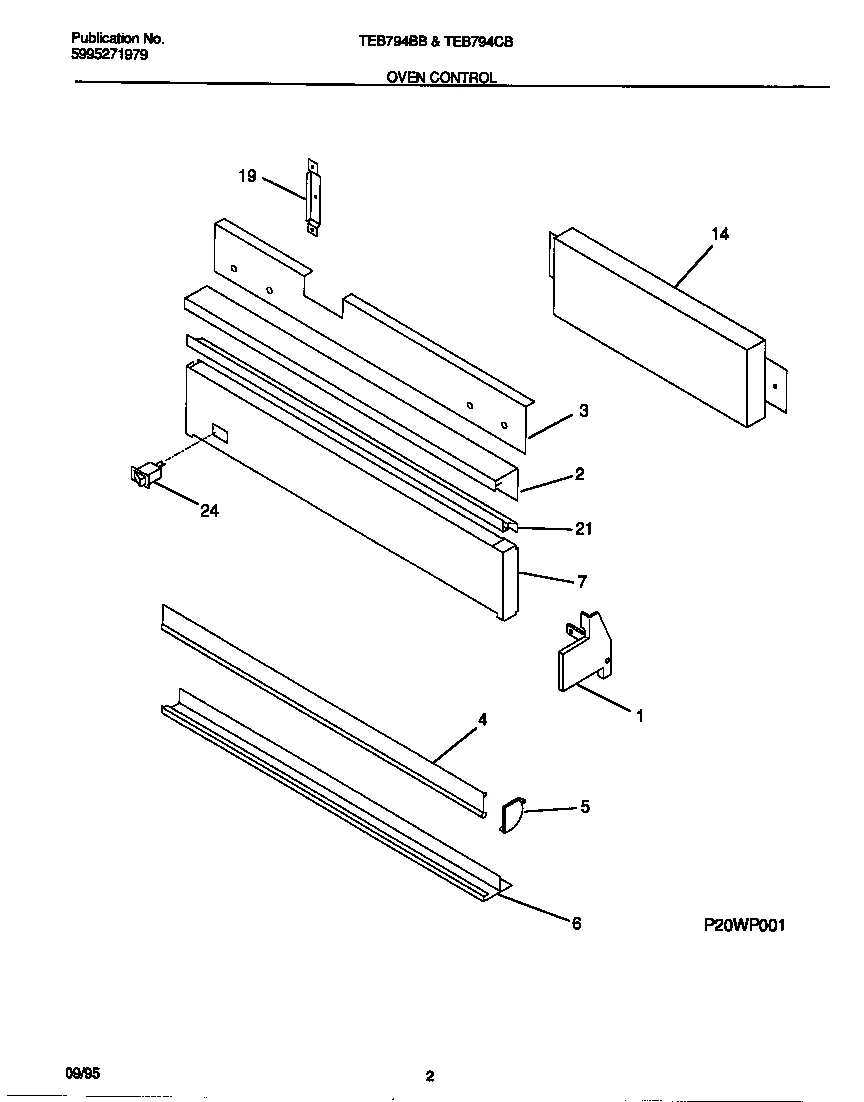

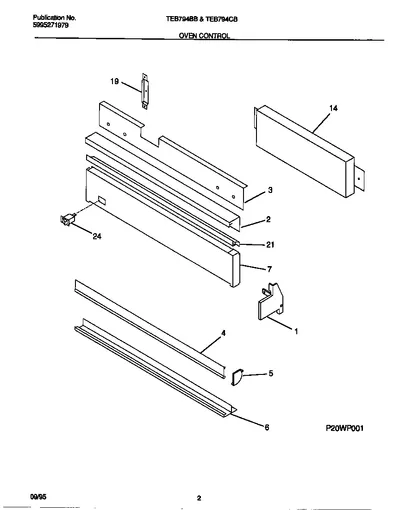

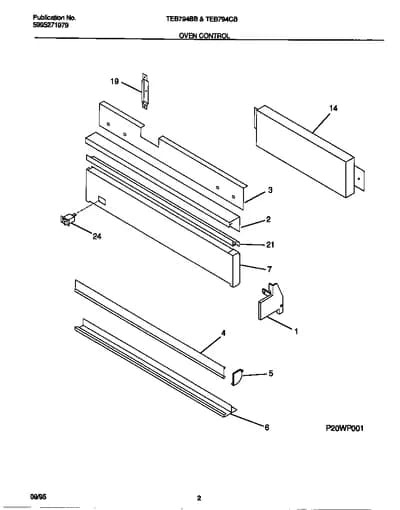

OVEN CONTROL PANEL
Parts in OVEN CONTROL PANEL
14 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 5303306754 END CAP-LH-BLACK | - |
| 1 | – | 5303306755 END CAP - RH - WHITE (NON-ILLUSTRATED) | - |
| 2 | – | 5303306751 TRIM - TOP - WHITE | - |
| 3 | – | 5303306901 TRIM, OVEN VENT | - |
| 4 | – | 5303306750 DOOR, VENT-WHITE (NOT ILLUSTRATED) | - |
| 5A | – | 5303306672 END TRIM - VENT - WHITE - RH | - |
| 5B | – | 5303306747 END TRIM - VENT - WHITE - LH (NON-ILLUSTRATED) | - |
| 6 | – | 5303306819 TRIM, BOTTOM | - |
| 7 | – | 5303307204 PANEL-CONTROL | - |
| 14 | – | 5303307201 CONTROLS, ELECTRONIC | - |
| 19 | – | 5303306694 CONTROLS, ELECTRONIC | - |
| 21 | – | 5303306693 TRIM, CONTROL (2) | - |
| 24 | – | 5303306690 SWITCH, ROCKER | - |
| *85920 | – | 5303306820 SCREW (2) (NON-ILLUSTRATED) | - |
