Diagram

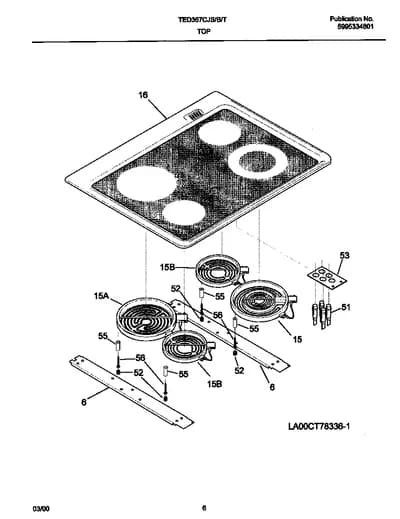

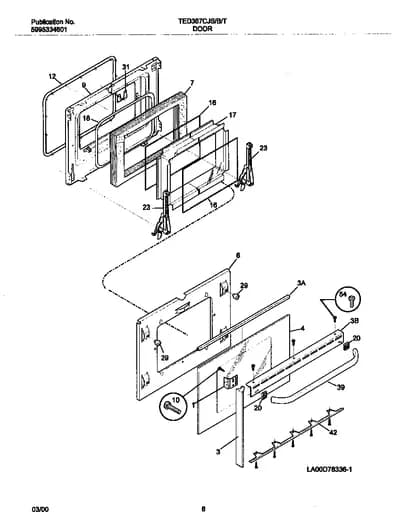

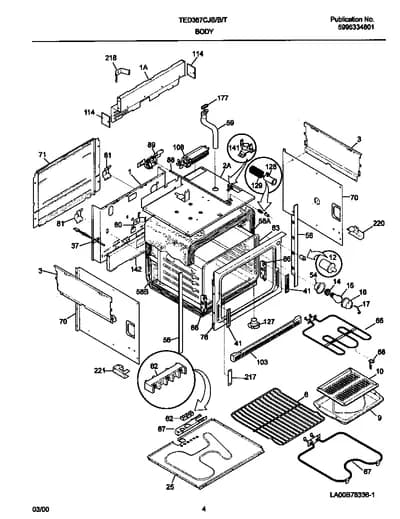

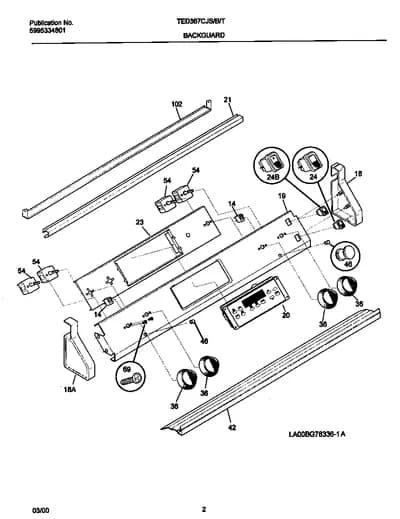

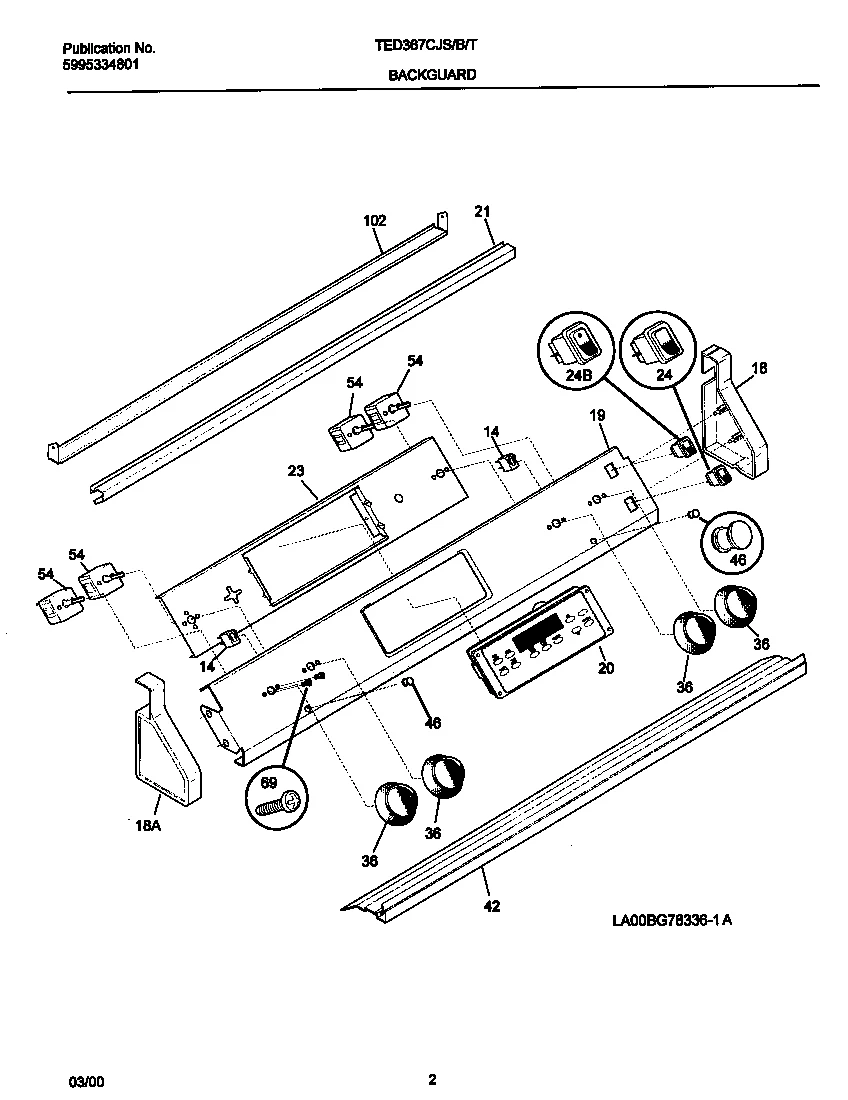

CONTROL PANEL
Parts in CONTROL PANEL
24 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 14 |  | 5303051533NLA LIGHT/LAMP, INDICATOR, 125V, (2) | Discontinued |
| 18 | | 5303300160NLA END CAP, BLACK, RH | Discontinued |
| 18 | | END CAP, BLACK, LH | Discontinued |
| 19 | – | 318182601 PANEL-CONTROL | - |
| 20 | – | 318012949 CLOCK/TIMER,ELECTRONIC | - |
| 21 | | Trim,backguard ,black ,top | - |
| 23 | | 318015020NLA BRACKET-CLOCK MTG | Discontinued |
| 24 |  | 316083100replaces 316086903 SWITCH-ROCKER,DUAL ELEMENT ,BLACK | $57.57 Parts Dr |
| 24 |  | 5304527841replaces 316005602 SWITCH-LIGHT/LAMP, ROCKER TYPE, BLACK, (2) | $6.16 Part Advantage |
| 36 | | Knob,control ,black | - |
| 42 |  | Trim,backguard ,black ,bottom | - |
| 46 |  | 318044511replaces 318044510 LENS-INDICATOR LIGHT | $10.49 ApplianceParts Pro |
| 54 |  | 318120500NLA SWITCH-SURFACE UNIT, (4) | Discontinued |
| 69 |  | 5303288565replaces 5303323134 SCREW, SWITCH MTG., 8-32 X 3/16, (6) (NOT ILLUSTRATED) | $2.70 RepairClinic |
| 102 | | BRACKET-MOUNTING | - |
| *17400 |  | Screw,6 x 0.375 ,(4) | - |
| *17401 | – | 3205110 CLIP, PLATE CONNECTOR (NOT ILLUSTRATED) | - |
| *17402 |  | Screw,10-24 x 0.500 ,probe,thrm brkt ,shield,drwr,box | $12.95 ApplianceParts Pro |
| *17403 |  | 131243700replaces 08016432 SCREW, TRUSS HEAD, 8-18 X 3/8, (4) (NOT ILLUSTRATED) | $1.96 Part Advantage |
| *17404 |  | SCREW, 8 X 1/2 (NOT ILLUSTRATED) | $22.95 ApplianceParts Pro |
| *17405 |  | SCREW, 8-18 X 1/2 (NOT ILLUSTRATED) | $10.70 ApplianceParts Pro |
| *17406 | – | 5303311124 SCREW-THERMOSTAT, (2) (NOT ILLUSTRATED) | - |
| *17407 |  | 5304480396replaces 5303311306 Screw,8-18 x 0.375 | $8.56 ApplianceParts Pro |
| *17408 | – | 5303323145 NUT | - |
