Model
Tappan TEF240PHD1
Range/Oven, Electric, Freestanding, 24 Inch
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TEF240PHD1Range/Oven, Electric, Freestanding, 24 Inch
4 diagrams80 parts
Parts Sections (4)
Diagram

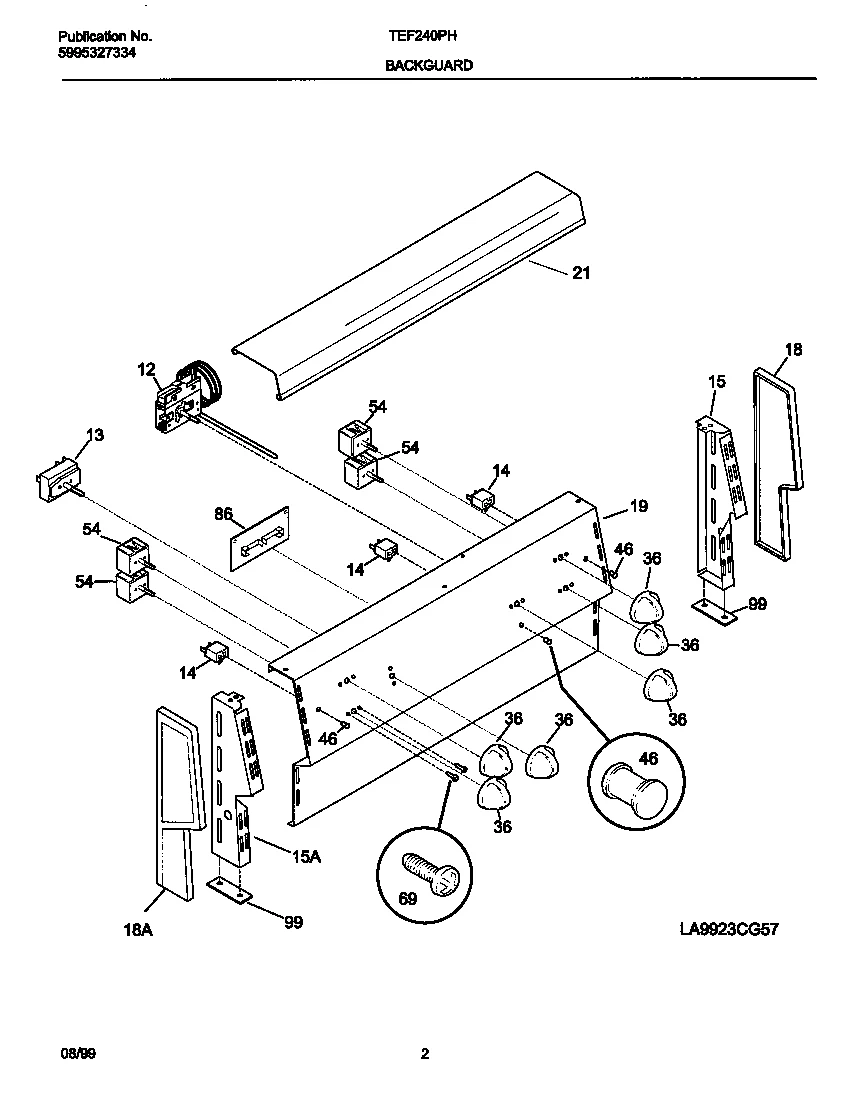

BACKGUARD
Parts in BACKGUARD
18 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 12 |  | THERMOSTAT-OVEN | - |
| 13 |  | 318082300NLA SWITCH-SELECTOR | Discontinued |
| 14 | | LIGHT-INDICATOR, HOT SURFACE | - |
| 15 | | Bracket,end cap mtg. ,RH | - |
| 15 | | Bracket,end cap mtg. ,LH | - |
| 18 | | 318254599replaces 5303304541 END BACKSPLASH-LH | - |
| 18 | | 5303304540NLA END BACKSPLASH-RH | Discontinued |
| 19 | – | 318005413 PANEL-CONTROL,METAL | - |
| 21 | – | 318051203 TRIM-CANOPY/SHIELD,ALMOND | - |
| 36 | | Knob,control ,black | - |
| 46 | | 5308006417NLA LENS-LIGHT/LAMP, INDICATOR, RED, (2) | Discontinued |
| 54 |  | 318120500NLA SWITCH-SURFACE UNIT, (4) | Discontinued |
| 69 |  | 5303288565replaces 5303323134 SCREW, SWITCH MTG., 8-32 X 3/16, (6) (NOT ILLUSTRATED) | $2.70 RepairClinic |
| 86 | – | 318111200 PLATE-CONNECTING | - |
| 99 |  | SPACER-END CAP (NOT ILLUSTRATED) | - |
| *30280 | | 154079601replaces 3201885 NUT (NOT ILLUSTRATED) | - |
| *30281 |  | SCREW, 8 X 1/2 (NOT ILLUSTRATED) | $22.95 ApplianceParts Pro |
| *30282 |  | Screw,10-24 x 0.625 | - |
