Model
Tappan TEF242BW1
Range/Oven, Electric, Freestanding, 24 Inch
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TEF242BW1Range/Oven, Electric, Freestanding, 24 Inch
4 diagrams80 parts
Parts Sections (4)

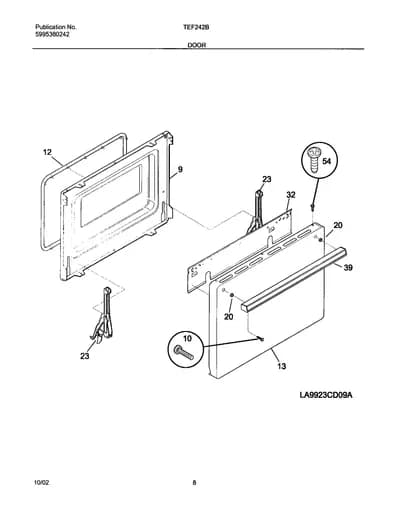

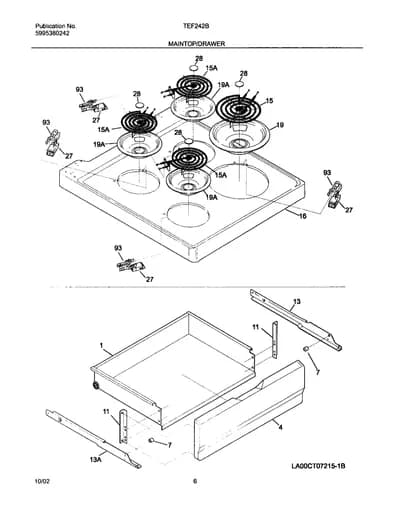

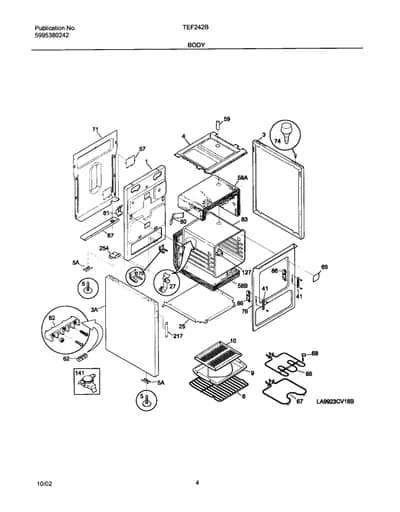

Diagram

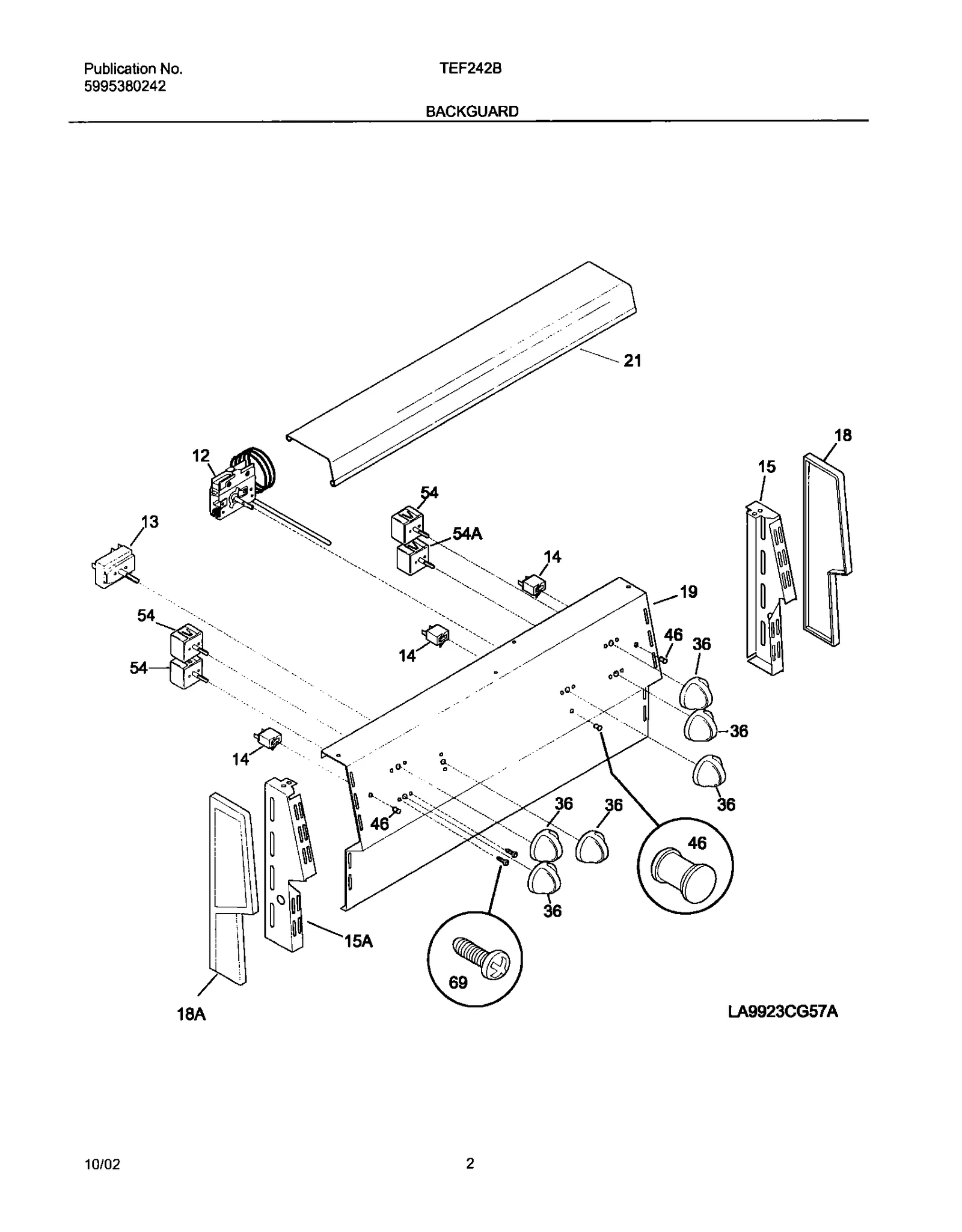

BACKGUARD
Parts in BACKGUARD
16 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 12 |  | CONTROL THERMOSTAT.63 | $202.46 Part Advantage |
| 13 |  | 318057910NLA Switch-selector | Discontinued |
| 14 |  | LIGHT-INDICATOR, HOT SURFACE | - |
| 15 | | Bracket,end cap mtg. ,RH | - |
| 15A | | Bracket,end cap mtg. ,LH | - |
| 18 | | 5303304540NLA END BACKSPLASH-RH | Discontinued |
| 18A | | 318254599replaces 5303304541 END BACKSPLASH-LH | - |
| 19 | | Panel,control ,white | - |
| 21 | | 318051201NLA Trim,canopy/shield ,black | Discontinued |
| 36 | | Knob,control ,black | - |
| 46 |  | 318044511replaces 318044510 LENS-INDICATOR LIGHT | $10.49 ApplianceParts Pro |
| 54 |  | 318293810replaces 318220000 Switch,surface unit ,small | $59.08 Parts Dr |
| 54A |  | 318293811replaces 318220001 Switch,surface unit ,large | $57.02 Parts Dr |
| 69 |  | 5303288565replaces 5303323134 SCREW, SWITCH MTG., 8-32 X 3/16, (6) (NOT ILLUSTRATED) | $2.70 RepairClinic |
| NI |  | 131243700replaces 08016432 SCREW, TRUSS HEAD, 8-18 X 3/8, (4) (NOT ILLUSTRATED) | $1.96 Part Advantage |
| NI |  | SCREW, 8 X 1/2 (NOT ILLUSTRATED) | $22.95 ApplianceParts Pro |
