Model
Tappan TEF317AWC
Range/Oven, Electric, Freestanding, 30 Inch
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TEF317AWCRange/Oven, Electric, Freestanding, 30 Inch
4 diagrams105 parts

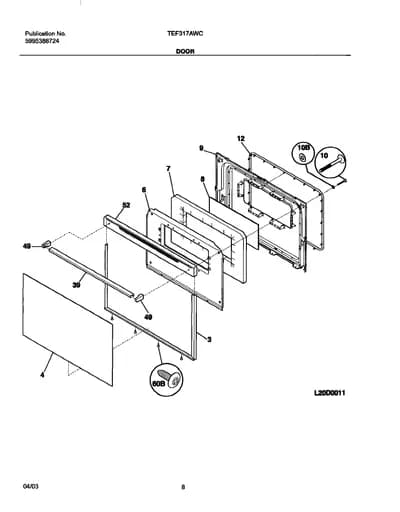

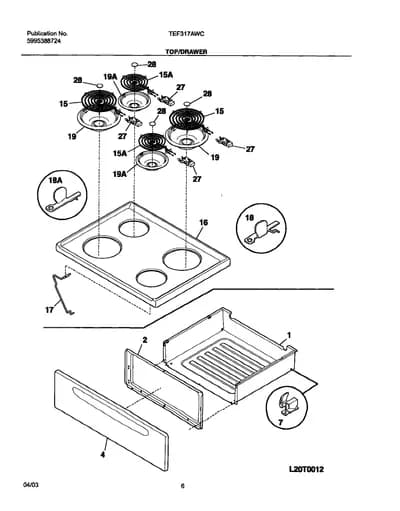

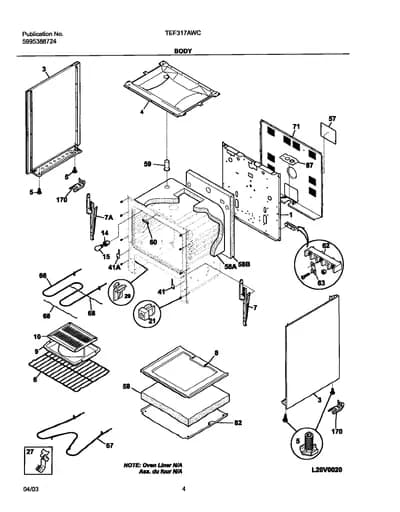

Parts Sections (4)
Diagram

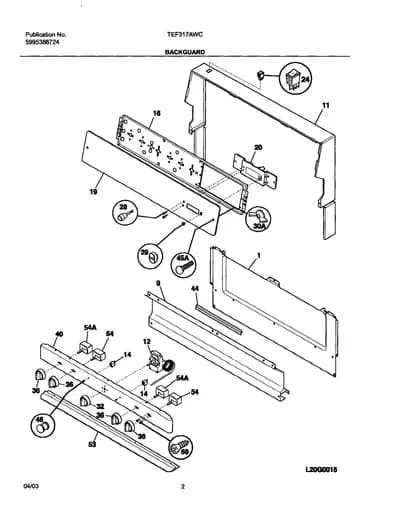

BACKGUARD
Parts in BACKGUARD
26 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | SHIELD, BACKGUARD, REAR WALL | - |
| 9 | | Trim-splasher,white ,lower | - |
| 11 | – | 316083715 Trim,wrapper ,black | - |
| 12 | | 316032409NLA Thermostat | Discontinued |
| 14 |  | LIGHT/LAMP, INDICATOR, 250 V (NOT ILLUSTRATED) | $45.42 Parts Dr |
| 16 | – | 316042602 PLATE, INSTRUMENT MTG | - |
| 19 | | Panel,backguard ,black | - |
| 20 | | 316113200NLA CLOCK-TIMER | Discontinued |
| 24 |  | 5304527841replaces 316246001 Switch,rocker ,black ,oven light | $6.16 Part Advantage |
| 28 | | Push Button,clock set ,black ,(2) | - |
| 29 | | BUTTON-SELECTOR, CLOCK/TIMER, BLACK | - |
| 30A | – | 316064300 Nut,nylon | - |
| 32 |  | Knob,thermostat ,black | $59.32 PartSelect |
| 36 |  | Knob,control ,black | $49.03 Parts Dr |
| 40 | | Panel,manifold ,black | - |
| 44 | – | 3131468 BACKET - BACKGUARD (NON-ILLUSTRATED) | - |
| 45A | | Bolt,fastener ,nylon ,black | - |
| 46 |  | 318228310replaces 316040201 LENS-LIGHT/LAMP, INDICATOR, RED, (4) | $6.54 Part Advantage |
| 53 | | SHIELD, HEAT, EXTRUSION | - |
| 54 |  | 5303935086replaces 5303051540 SWITCH, SURFACE UNIT, SMALL (2) | $25.83 Part Advantage |
| 54A | | 5303935086replaces 5301313767 SWITCH, SURFACE UNIT, LARGE (2) | $25.83 Part Advantage |
| 69 |  | Screw,truss sqdr ,8-32 x 3/16 ,switch mtg | $2.70 RepairClinic |
| NI | | CLIP-BACKGUARD (NON-ILLUSTRATED) | - |
| NI |  | Screw,8-18 x 0.5 ,chrome | $8.20 Part Advantage |
| NI | | 316021109replaces 316021110 Screw,8-18 x 0.5 ,black | $8.20 Part Advantage |
| NI |  | 131243700replaces 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome | $1.96 Part Advantage |
