Model
Tappan TEF326FBA
Range/Oven, Electric, Freestanding, 30 Inch
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TEF326FBARange/Oven, Electric, Freestanding, 30 Inch
4 diagrams94 parts
Parts Sections (4)
Diagram

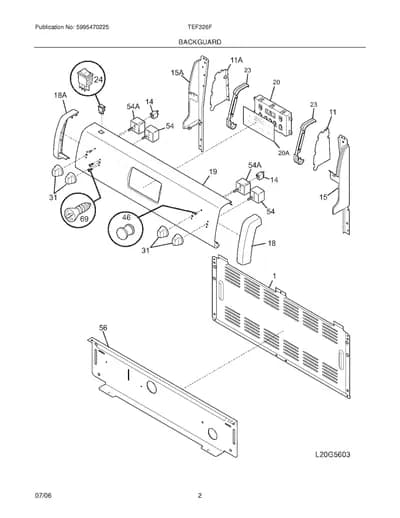

BACKGUARD
Parts in BACKGUARD
18 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | Shield,backguard ,rear wall | - |
| 11 | | Shield,end cap ,RH | - |
| 11A | | Shield,end cap ,LH | - |
| 14 |  | Light/Lamp,indicator ,black ,125 V | $31.81 Parts Dr |
| 15 |  | Support,backguard ,black ,RH | - |
| 15A |  | Support,backguard ,black ,LH | - |
| 18 | | End Cap,black ,RH | - |
| 18A | | 316240905NLA End Cap,black ,LH | Discontinued |
| 19 | | 316246670NLA Panel,backguard ,black | Discontinued |
| 20 |  | 5304518660replaces 316455400 CLOCK/TIMER, ELECTRONIC, ES100 | $63.99 Part Advantage |
| 20A |  | Overlay,clock ,black | $31.53 Parts Dr |
| 24 |  | 5304527841replaces 316448700 Switch,rocker ,black ,oven light | $6.16 Part Advantage |
| 31 |  | KNOB-CONTROL, INFINITE SW, BLACK | $50.40 ApplianceParts Pro |
| 46 |  | 318228310replaces 316040201 LENS-LIGHT/LAMP, INDICATOR, RED, (4) | $6.54 Part Advantage |
| 54 |  | Switch,infinite ,small element | $42.55 Part Advantage |
| 54A |  | Switch,infinite ,large element | $22.25 Part Advantage |
| 56 |  | 316234045replaces 316234013 Shield,backguard ,black ,inner | - |
| 69 |  | Screw,truss sqdr ,8-32 x 3/16 ,switch mtg | $2.70 RepairClinic |
