Model
Tappan TEF350SCWC
Range/Oven, Electric, Freestanding, 30 Inch
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TEF350SCWCRange/Oven, Electric, Freestanding, 30 Inch
4 diagrams105 parts

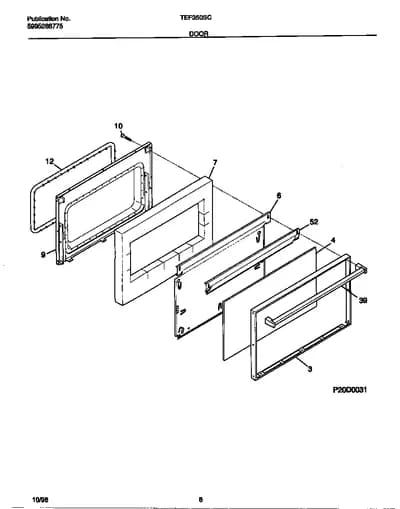

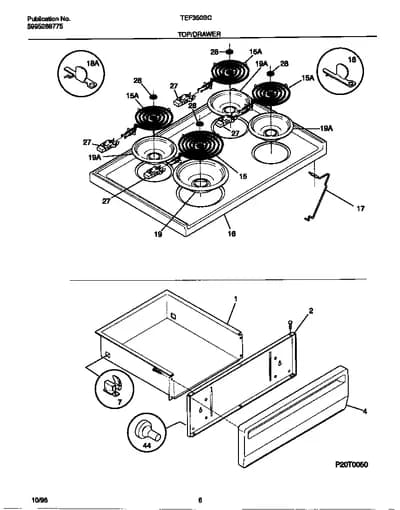

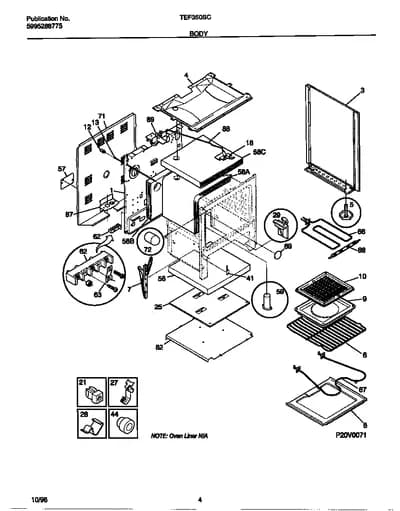

Parts Sections (4)
Diagram

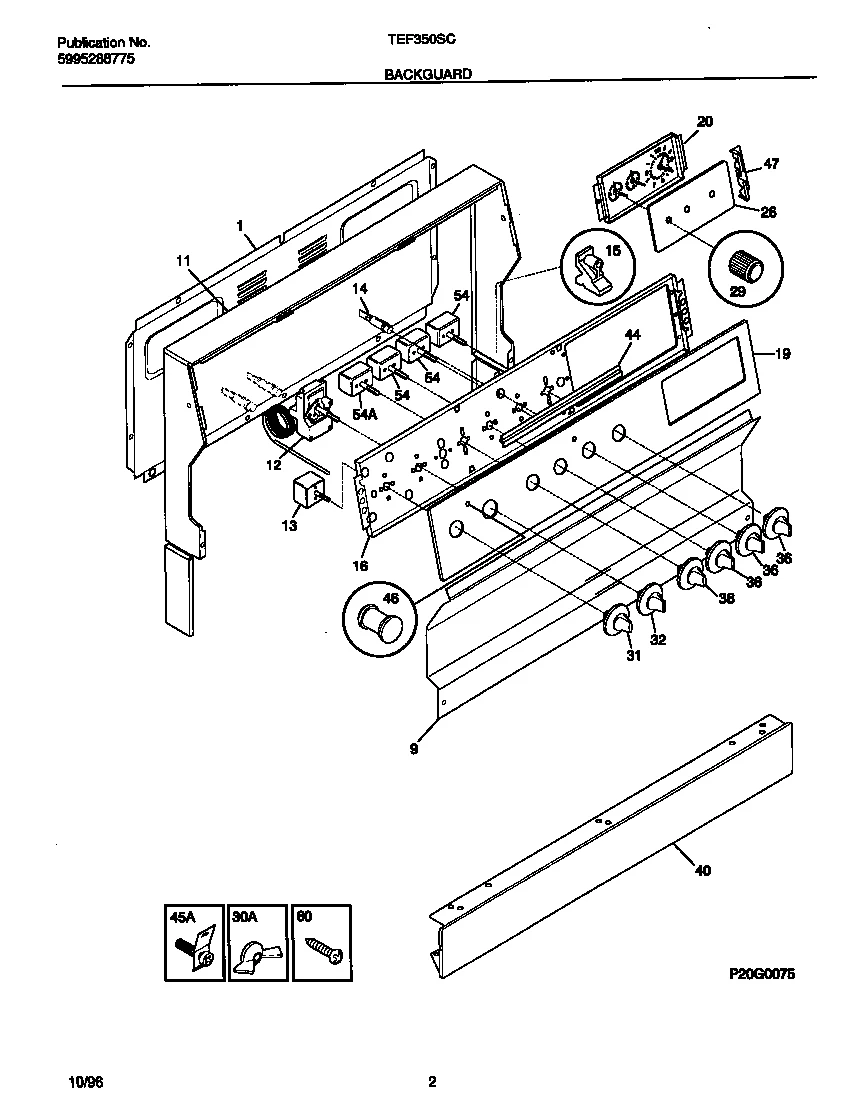

BACKGUARD
Parts in BACKGUARD
26 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 5303289640replaces 3131123 SHIELD REAR WALL BIG (NON-ILLUSTRATED) | - |
| 9 | | TRIM-LOWER SPLASHER-WHITE | - |
| 11 | | Trim,wrapper ,black | - |
| 12 | | THERMOSTAT-OVEN | - |
| 13 |  | SWITCH-SELECTOR | - |
| 14 | | 3201726NLA LIGHT/LAMP, INDICATOR, CLEAR, 250 V, CLEAN (NON-ILLUSTRATED) | Discontinued |
| 15 | | 5303131237NLA LIGHT/LAMP, INDICATOR, RED, LOCK | Discontinued |
| 16 | – | 316042602 PLATE, INSTRUMENT MTG | - |
| 19 | – | 316034116 PANEL-CONTROL, METAL, BLACK | - |
| 20 | | CLOCK/TIMER, ANALOG 3 STEM | - |
| 26 | | LENS-CLOCK, GLASS | - |
| 29 | | 316029000NLA KNOB-CLOCK, (3) | Discontinued |
| 30 | – | 316064300 Nut,nylon | - |
| 31 | | KNOB-SELECTOR, (6) POS | - |
| 32 | – | 316087239 KNOB-THERMOSTAT | - |
| 36 | – | 316087240 KNOB-CONTROL, BLACK | - |
| 40 | | 316064009replaces 316062329 PANEL, MANIFOLD, BLACK | - |
| 44 | – | 3131468 BACKET - BACKGUARD (NON-ILLUSTRATED) | - |
| 45 | | Bolt,fastener ,nylon ,black | - |
| 46 | | LENS-LIGHT/LAMP,INDICATOR ,RED | - |
| 47 | – | 3201700 RETAINER, CLOCK GLASS, (2) | - |
| 54 |  | 5303935086replaces 5303285143 SWITCH-TOP ELEMENT LG (2) | $25.83 Part Advantage |
| 54 | | 5303935086replaces 5303285142 SWITCH-TOP ELEMENT SM (2) | $25.83 Part Advantage |
| 60 |  | 316021109replaces 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black | $8.20 Part Advantage |
| *53760 | | CLIP-BACKGUARD (NON-ILLUSTRATED) | - |
| *53761 | | SCREW, TRUSS HEAD, 8-18 X 1/2 10-16 X 1/2 (NON-ILLUSTRATED) | - |
