Model
Tappan TEF351DSB
Range/Oven, Electric, Freestanding, 30 Inch
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TEF351DSBRange/Oven, Electric, Freestanding, 30 Inch
4 diagrams105 parts
Parts Sections (4)
Diagram

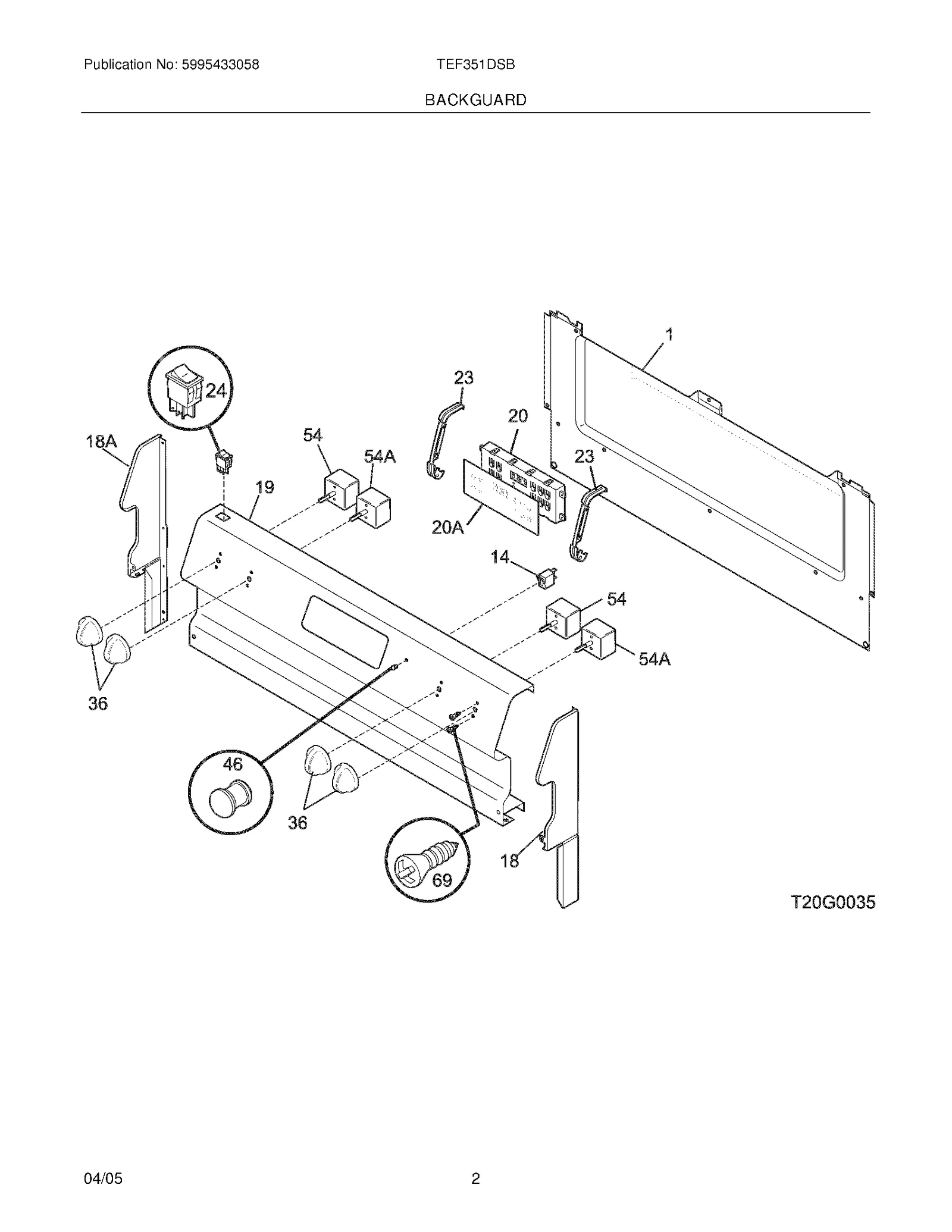

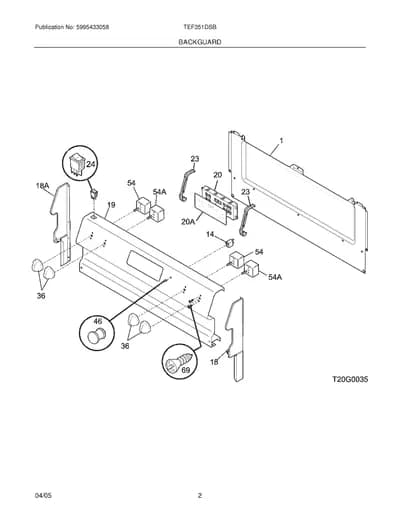

BACKGUARD
Parts in BACKGUARD
18 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | SHIELD, BACKGUARD, REAR WALL | - |
| 14 |  | Light/Lamp,indicator ,black ,125 V | $31.81 Parts Dr |
| 18 | | END CAP (WHITE) (RH) | - |
| 18A |  | END CAP (WHITE) (LH) | $75.37 ApplianceParts Pro |
| 19 | – | 316263352 Panel,backguard ,white | - |
| 20 | | Clock/Timer,electronic ,ES200 | - |
| 20A | | Overlay,clock ,white | - |
| 23 | – | 316217500 Bracket,clock mtg ,(2) | - |
| 24 |  | 5304527842replaces 316246000 Switch,rocker ,white ,oven light | $6.16 Part Advantage |
| 36 |  | KNOB-CONTROL, INFINITE SW, WHITE, (4) | $36.54 Parts Dr |
| 46 |  | 318228310replaces 316040201 LENS-LIGHT/LAMP, INDICATOR, RED, (4) | $6.54 Part Advantage |
| 54 |  | 316436000replaces 316021500 Switch,infinite ,small element | $42.55 Part Advantage |
| 54A |  | 316436001replaces 316021501 Switch,infinite ,large element | $22.25 Part Advantage |
| 69 |  | Screw,truss sqdr ,8-32 x 3/16 ,switch mtg | $2.70 RepairClinic |
| NI |  | 316021109replaces 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black | $8.20 Part Advantage |
| NI | | 316021109replaces 316021110 Screw,8-18 x 0.5 ,black | $8.20 Part Advantage |
| NI | | Screw,8-18 x 0.5 ,chrome | $8.20 Part Advantage |
| NI |  | 131243700replaces 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome | $1.96 Part Advantage |
