Model
Tappan TEF352BHWA
Range/Oven, Electric, Freestanding, 30 Inch
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TEF352BHWARange/Oven, Electric, Freestanding, 30 Inch
4 diagrams110 parts

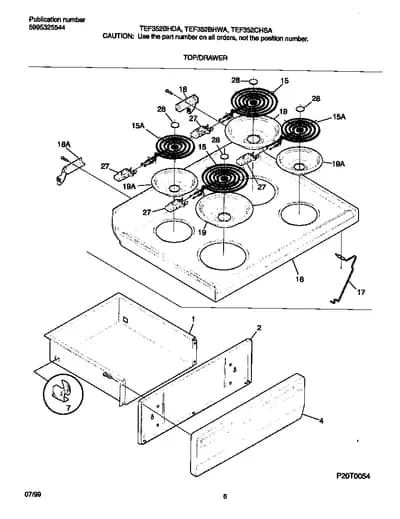

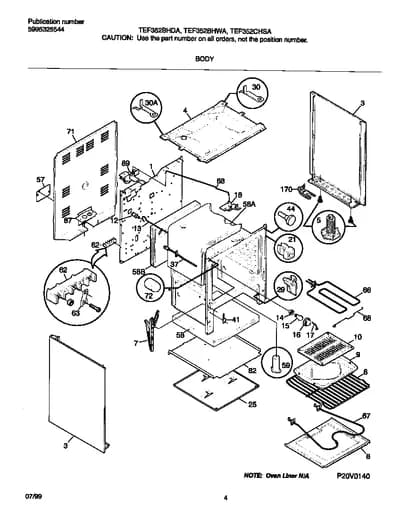

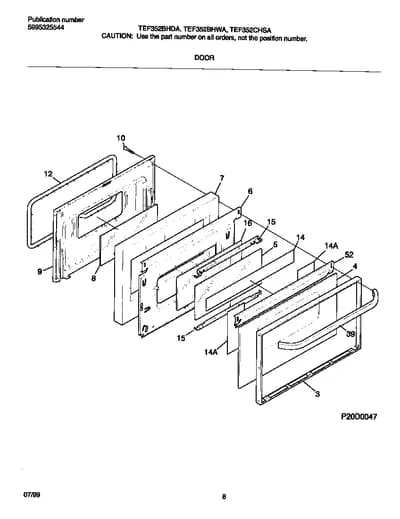

Parts Sections (4)
Diagram

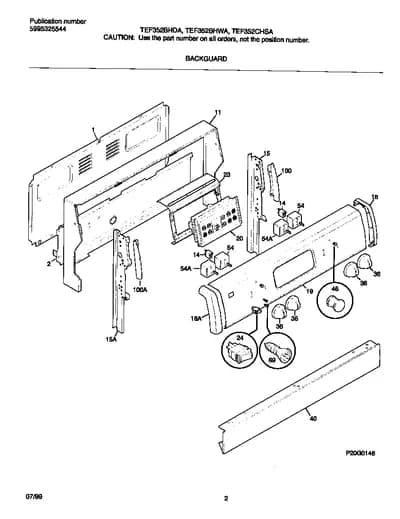

BACKGUARD
Parts in BACKGUARD
27 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 316081600replaces 316081601 Shield-backguard,painted ,black ,rear wall | - |
| 2 | – | 316015907 Shield,backguard ,black ,inner | - |
| 11 | | TRIM-WRAPPER,TEXTURED ,BLACK | - |
| 14 |  | 316022503replaces 316022504 LIGHT-INDICATOR,250V | $45.42 Parts Dr |
| 15 | | Support,backguard ,LH | - |
| 15 | | SUPPORT-BACKGUARD, RH | - |
| 18 |  | 5303935174replaces 316115214 END CAP,RH | - |
| 18 | | 5303935174replaces 316115215 END CAP,LH | - |
| 19 | | PANEL-CONTROL,METAL | - |
| 20 | | 316101001NLA CLOCK/TIMER, ELECTRONIC | Discontinued |
| 23 | – | 316115101 BRACKET TIMER | - |
| 24 |  | 5304527841replaces 316118100 Switch,oven light ,black ,rocker | $6.16 Part Advantage |
| 36 |  | KNOB-CONTROL, INFINITE SW, BLACK | $50.40 ApplianceParts Pro |
| 40 | | PANEL-MANIFOLD,BLACK | - |
| 46 |  | 318228310replaces 316040201 LENS-LIGHT/LAMP, INDICATOR, RED, (4) | $6.54 Part Advantage |
| 54 |  | 316436000replaces 316021500 Switch,infinite ,small element | $42.55 Part Advantage |
| 54 |  | 316436001replaces 316021501 Switch,infinite ,large element | $22.25 Part Advantage |
| 100A | – | 316128300 SHIELD-BACKGUARD,RH | - |
| 100B | – | 316128301 SHIELD-BACKGUARD,LH | - |
| *86480 | | SHIELD-OVEN DOOR, BLACK, TOP | - |
| *86481 |  | 131243700replaces 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome | $1.96 Part Advantage |
| *86482 |  | 316021109replaces 316021110 Screw,8-18 x 0.5 ,black | $8.20 Part Advantage |
| *86484 | | 316085600NLA INSULATOR-SHIELD THERMOSTT | Discontinued |
| *86485 |  | Template, Anti-tip bracket | - |
| *86486 | | 5304501948replaces 5303292005 SCREW-SWITCH MTG, 8-32 X 5/32, (2) (NOT ILLUSTRATED) | - |
| *86488 | | OVERLAY-CLOCK | - |
| *86489 | | 316021109replaces 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black | $8.20 Part Advantage |
