Model
Tappan TEF352CHTA
Range/Oven, Electric, Freestanding, 30 Inch
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TEF352CHTARange/Oven, Electric, Freestanding, 30 Inch
4 diagrams114 parts

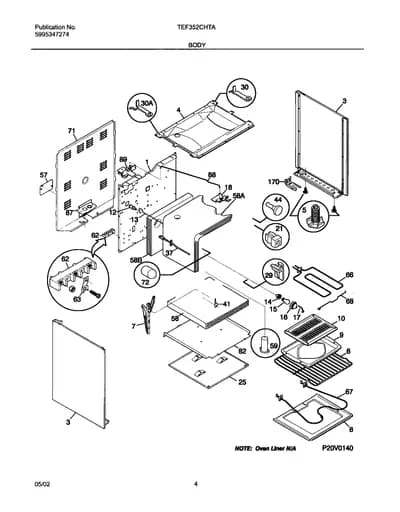

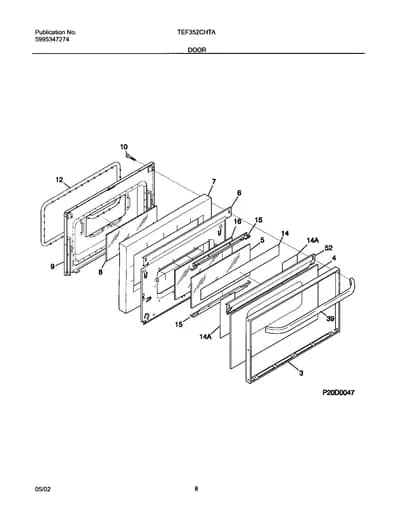

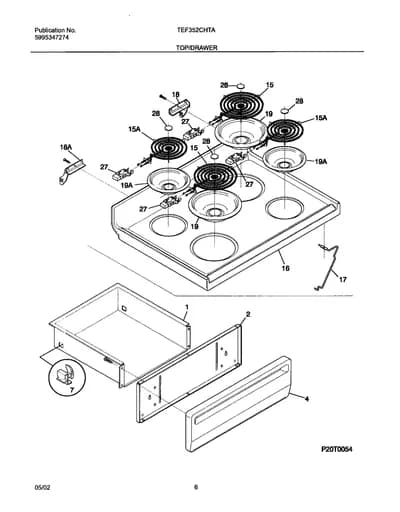

Parts Sections (4)
Diagram

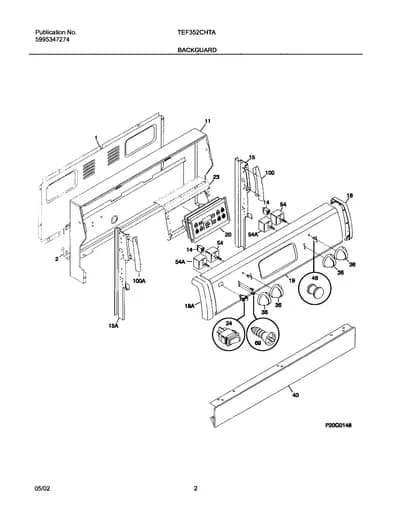

BACKGUARD
Parts in BACKGUARD
24 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | Shield,backguard ,galv steel ,rear wall | - |
| 2 | – | 316015907 Shield,backguard ,black ,inner | - |
| 11 | | Trim-wrapper,textured ,almond | - |
| 14 |  | LIGHT/LAMP, INDICATOR, 250 V (NOT ILLUSTRATED) | $45.42 Parts Dr |
| 15 | | SUPPORT-BACKGUARD, RH | - |
| 15A | | Support,backguard ,LH | - |
| 18 | | 5303935173NLA End Cap,almond ,RH & LH | Discontinued |
| 19 | – | 316123614 PANEL CONTROL,ALMOND | - |
| 20 | | 316101001NLA CLOCK/TIMER, ELECTRONIC | Discontinued |
| 20A | – | 316101526 OVERLAY-TL ALM, SEE ITEM 20 | - |
| 23 | – | 316131501 BRACKET-TIMER TL CONTROL,23 | - |
| 24 | | 316118102NLA Switch,oven light ,almond ,rocker | Discontinued |
| 36 | | KNOB-CONTROL, INFINITE SW, ALMOND, (4) | - |
| 40 | | PANEL-MANIFOLD, ALMOND | - |
| 46 |  | 318228310replaces 316040201 LENS-LIGHT/LAMP, INDICATOR, RED, (4) | $6.54 Part Advantage |
| 54 |  | 316436000replaces 316021500 Switch,infinite ,small element | $42.55 Part Advantage |
| 54A |  | 316436001replaces 316021501 Switch,infinite ,large element | $22.25 Part Advantage |
| 69 | | 5304501948replaces 5303292005 SCREW-SWITCH MTG, 8-32 X 5/32, (2) (NOT ILLUSTRATED) | - |
| 100 | – | 316128301 SHIELD-BACKGUARD,LH | - |
| 100 | – | 316128300 SHIELD-BACKGUARD,RH | - |
| NI | – | 316021124 Screw,truss hd ,8-18 x 0.375 ,almond | - |
| NI |  | 316021109replaces 316021110 Screw,8-18 x 0.5 ,black | $8.20 Part Advantage |
| NI |  | 131243700replaces 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome | $1.96 Part Advantage |
| NI | | 316021109replaces 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black | $8.20 Part Advantage |
