Model
Tappan TEF353AWC
Range/Oven, Electric, Freestanding, 30 Inch
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TEF353AWCRange/Oven, Electric, Freestanding, 30 Inch
4 diagrams113 parts
Parts Sections (4)
Diagram

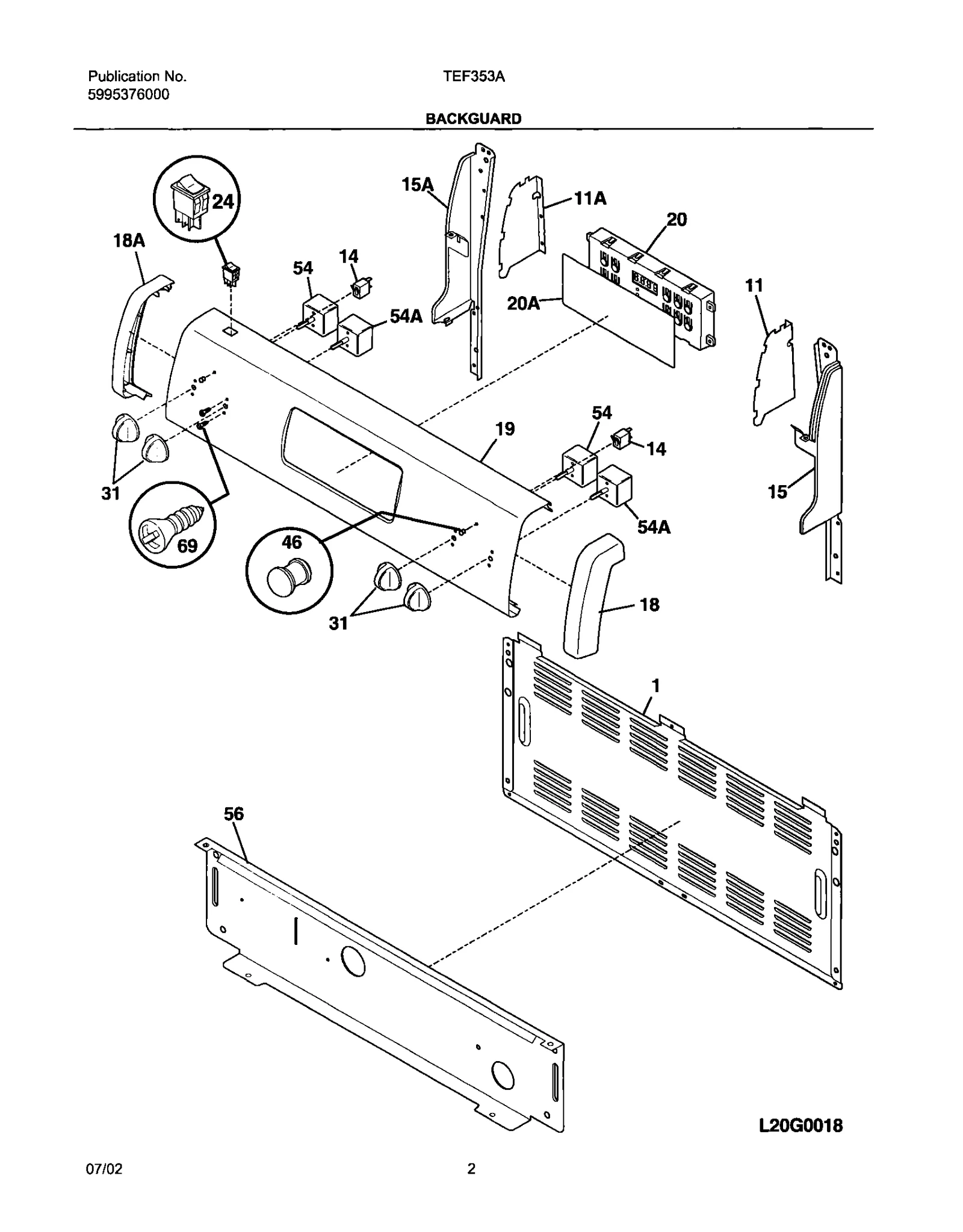

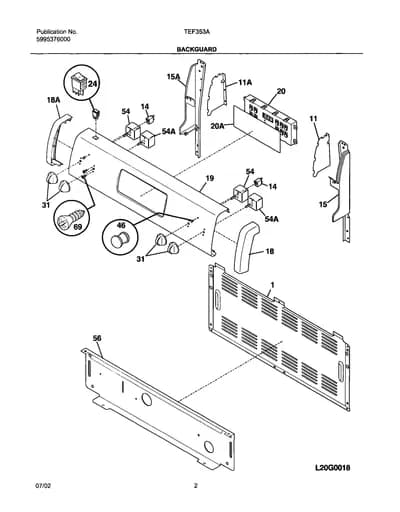

BACKGUARD
Parts in BACKGUARD
20 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | Shield,backguard ,rear wall | - |
| 11 | | Shield,end cap ,RH | - |
| 11A | | Shield,end cap ,LH | - |
| 14 |  | Light/Lamp,indicator ,black ,125 V | $31.81 Parts Dr |
| 15 |  | Support,backguard ,black ,RH | - |
| 15A |  | Support,backguard ,black ,LH | - |
| 18 | | End Cap,black ,RH | - |
| 18A | | 316240905NLA End Cap,black ,LH | Discontinued |
| 19 | | Panel,backguard ,black | - |
| 20 | | Clock/Timer,electronic | - |
| 20A | | Overlay,clock ,black | Discontinued |
| 24 |  | 5304527841replaces 316246001 Switch,rocker ,black ,oven light | $6.16 Part Advantage |
| 31 |  | KNOB-CONTROL, INFINITE SW, BLACK | $50.40 ApplianceParts Pro |
| 46 |  | 318228310replaces 316040201 LENS-LIGHT/LAMP, INDICATOR, RED, (4) | $6.54 Part Advantage |
| 54 |  | 316436000replaces 316021500 Switch,infinite ,small element | $42.55 Part Advantage |
| 54A |  | 316436001replaces 316021501 Switch,infinite ,large element | $22.25 Part Advantage |
| 56 |  | 316234045replaces 316234003 Shield,backguard ,black ,inner | - |
| 69 |  | Screw,truss sqdr ,8-32 x 3/16 ,switch mtg | $2.70 RepairClinic |
| NI |  | 316021109replaces 316021110 Screw,8-18 x 0.5 ,black | $8.20 Part Advantage |
| NI |  | 131243700replaces 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome | $1.96 Part Advantage |
