Model
Tappan TEF355BFDA
Range/Oven, Electric, Freestanding, 30 Inch

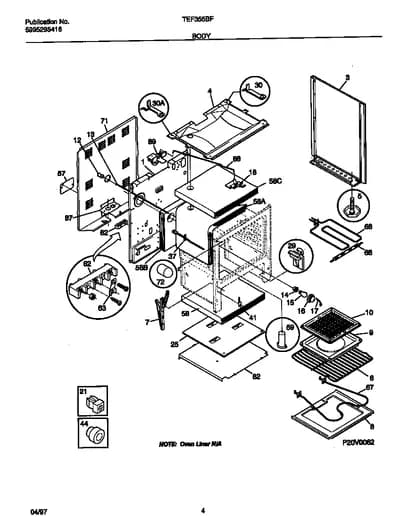

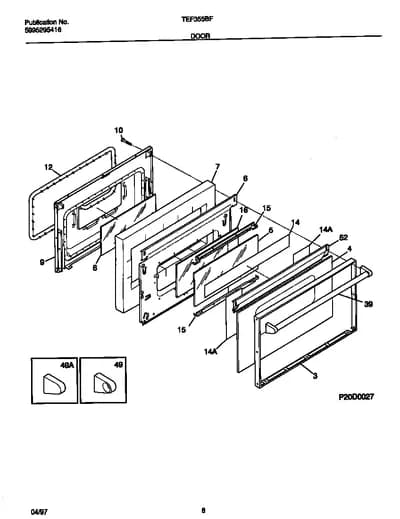

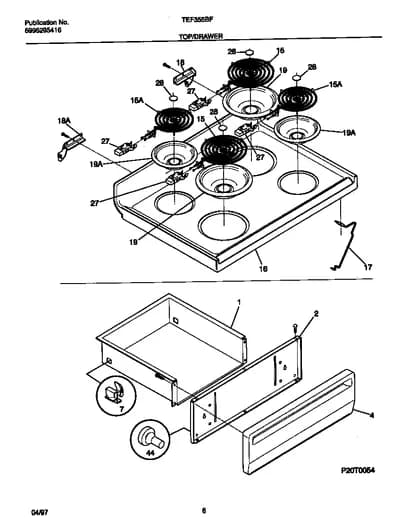

Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TEF355BFDARange/Oven, Electric, Freestanding, 30 Inch
4 diagrams109 parts
Parts Sections (4)
Diagram

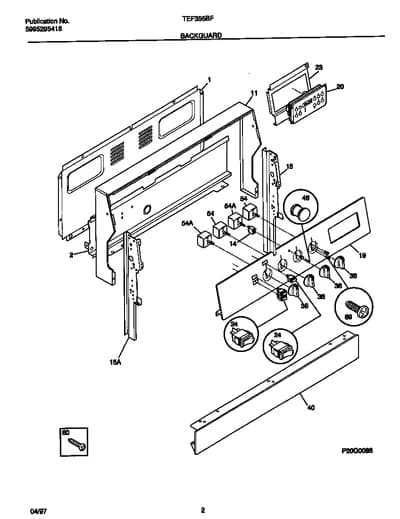

BACKGUARD
Parts in BACKGUARD
19 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 316081600replaces 316081601 Shield-backguard,painted ,black ,rear wall | - |
| 2 | – | 316015907 Shield,backguard ,black ,inner | - |
| 11 | – | 316061841 TRIM-WRAPPER, BLACK | - |
| 14 |  | LIGHT/LAMP, INDICATOR, 250 V (NOT ILLUSTRATED) | $45.42 Parts Dr |
| 15 | | Support,backguard ,LH | - |
| 15 | | SUPPORT-BACKGUARD, RH | - |
| 19 | | PANEL-CONTROL, METAL | - |
| 20A | | 316101001NLA CLOCK/TIMER, ELECTRONIC | Discontinued |
| 20B |  | OVERLAY-CLOCK (NOT ILLUSTRATED) | Discontinued |
| 23 | – | 316100400 BRACKET-CLOCK MTG | - |
| 24 |  | 5304527841replaces 316005602 SWITCH-LIGHT/LAMP, ROCKER TYPE, BLACK, (2) | $6.16 Part Advantage |
| 36 | | KNOB-CONTROL, BLACK, 4 | $42.74 ApplianceParts Pro |
| 40 | | 316064009replaces 316062329 PANEL, MANIFOLD, BLACK | - |
| 46 |  | 318228310replaces 316040201 LENS-LIGHT/LAMP, INDICATOR, RED, (4) | $6.54 Part Advantage |
| 54 |  | 316436000replaces 316021500 Switch,infinite ,small element | $42.55 Part Advantage |
| 54 |  | 316436001replaces 316021501 Switch,infinite ,large element | $22.25 Part Advantage |
| 60 |  | 316021109replaces 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black | $8.20 Part Advantage |
| 69 | | 5304501948replaces 5303292005 SCREW-SWITCH MTG, 8-32 X 5/32, (2) (NOT ILLUSTRATED) | - |
| *82360 |  | 131243700replaces 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome | $1.96 Part Advantage |
