Model
Tappan TEF362BBBE
Range/Oven, Electric, Freestanding, 30 Inch
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TEF362BBBERange/Oven, Electric, Freestanding, 30 Inch
4 diagrams132 parts
Parts Sections (4)

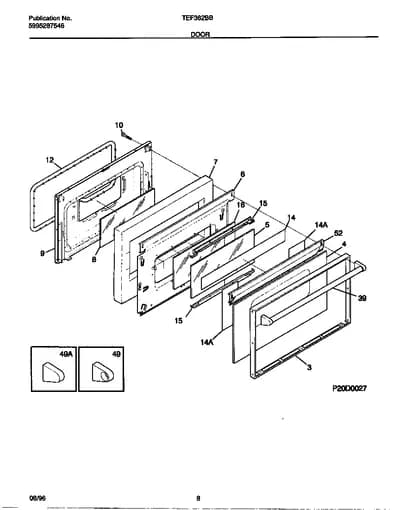

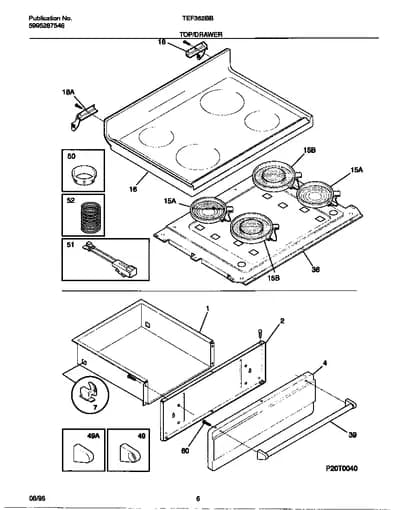

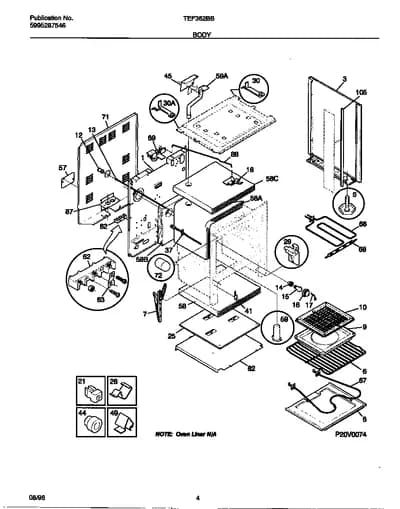

Diagram

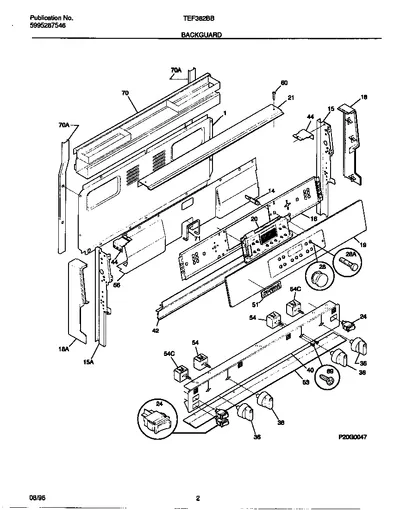

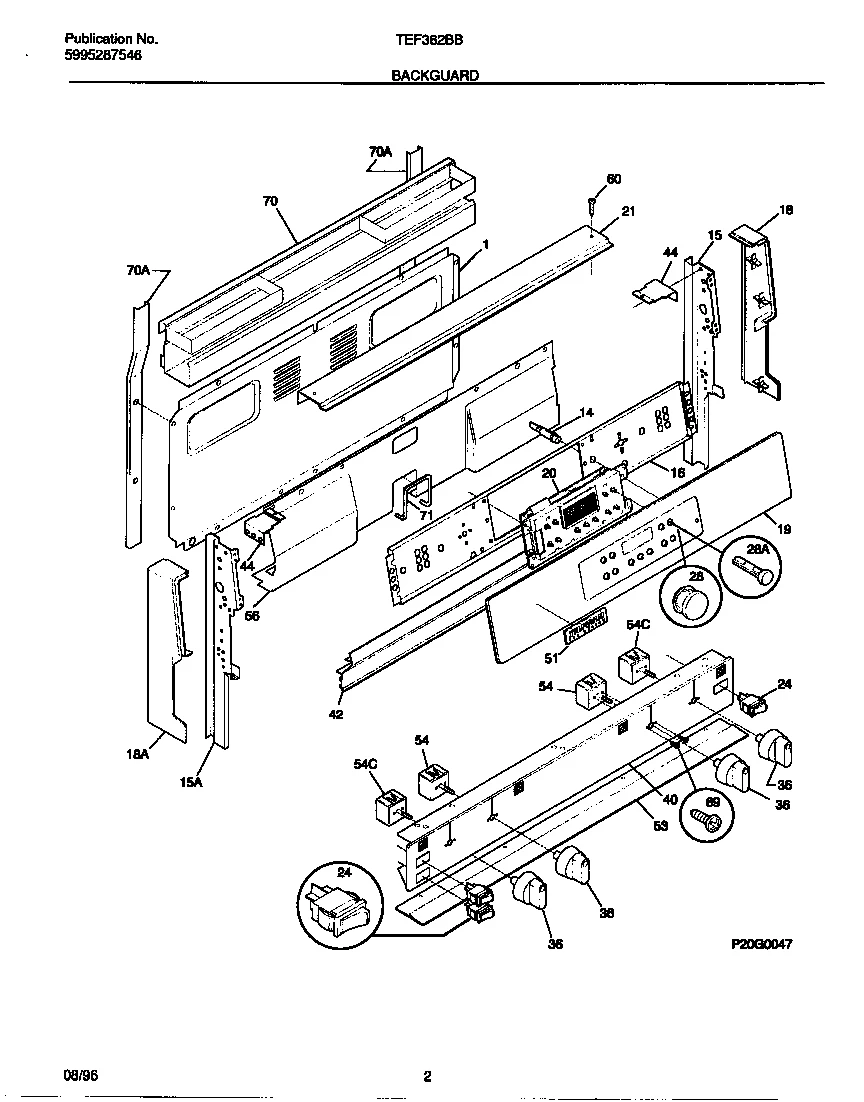

BACKGUARD
Parts in BACKGUARD
35 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 316081600replaces 316081601 Shield-backguard,painted ,black ,rear wall | - |
| 14 | | 3201726NLA LIGHT/LAMP, INDICATOR, CLEAR, 250 V, CLEAN (NON-ILLUSTRATED) | Discontinued |
| 15 | – | 316023110 SUPPORT-BACKGROUND, RH | - |
| 15 | | 316023109replaces 316023111 SUPPORT-BACKGUARD, LH | - |
| 16 | – | 316042605 PLATE, INSTRUMENT MTG, BLACK | - |
| 18 |  | END CAP, BLACK, LH | $35.58 RepairClinic |
| 18 |  | END CAP, BLACK, RH | - |
| 19 | – | 316028325 PANEL-CONTROL, GLASS | - |
| 19 | – | 5303272836 CLIP-BACKGROUND (NON-ILLUSTRATED) | - |
| 20 | | 316080100NLA CLOCK/TIMER, ELECTRONIC | Discontinued |
| 21 | – | 316039204 TRIM-CANOPY/SHIELD, BLACK | - |
| 24 | | SWITCH-ROCKER, BLACK | - |
| 28 | | PUSH BUTTON, BLACK, CLOCK/TIMER/EOC | - |
| 28 | | 316080600NLA PUSH BUTTON-SHAFT, CLOCK/TIMER/EOC, BLACK (NOT ILLUSTRATED) | Discontinued |
| 36 | | 5304492249replaces 3018008 SHIELD-INF SW S/U (2) (NON-ILLUSTRATED) | - |
| 36 | | KNOB-CONTROL, 4 | - |
| 40 | – | 316062348 PANEL-MANIFOLD | - |
| 42 | – | 5303272839 EXTRUSION-DEFLECTOR | - |
| 44 | – | 5303272831 BRACKET-SUPPORT B/G (2) | - |
| 51 | – | 316074200 NAMEPLATE, TAPPAN | - |
| 51 | | LIGHT-INDICATOR | - |
| 53 | | SHIELD-HEAT, EXTRUSION | - |
| 54 |  | 5304528972replaces 316049800 SWITCH-INFINITE, DUAL ELEMENT, (2) | $25.83 Part Advantage |
| 54 |  | 316436000replaces 316021500 Switch,infinite ,small element | $42.55 Part Advantage |
| 56 | – | 316074904 DEFLECTOR-FLUE, BLACK | - |
| 60 |  | 316021109replaces 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black | $8.20 Part Advantage |
| 69 | | 5304501948replaces 5303292005 SCREW-SWITCH MTG, 8-32 X 5/32, (2) (NOT ILLUSTRATED) | - |
| 70 | | SUPPORT, SPICE RACK | - |
| 70 | | 316069700NLA RACK-SPICE, STAINLESS | Discontinued |
| 71 | – | 316071901 GASKET-EDGE, DEFLECTOR B/G | - |
| *76800 | | 316035700NLA LENS-LIGHT/LAMP, INDICATOR (NON-ILLUSTRATED) | Discontinued |
| *76801 |  | 131243700replaces 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome | $1.96 Part Advantage |
| *76802 | – | 316078000 TERMINAL-SHIELD | - |
| *76803 | | 5303288574NLA SCREW, PLAS. TR HD SQDR, 8-10 X 3/8, (6) (NON-ILLUSTRATED) | Discontinued |
| *76804 | – | 5303290288 FASTENER | - |
