Model
Tappan TEF364ASB
Range/Oven, Electric, Freestanding, 30 Inch
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelTappan
TEF364ASBRange/Oven, Electric, Freestanding, 30 Inch
4 diagrams119 parts
Parts Sections (4)
Diagram

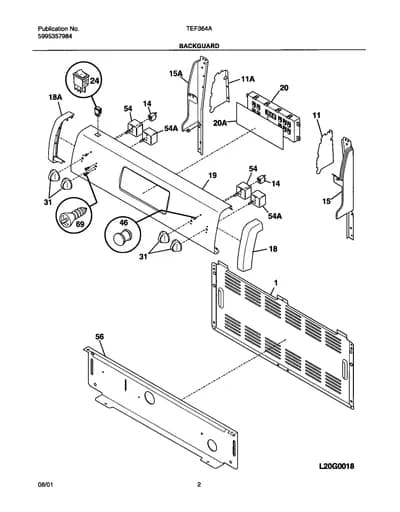

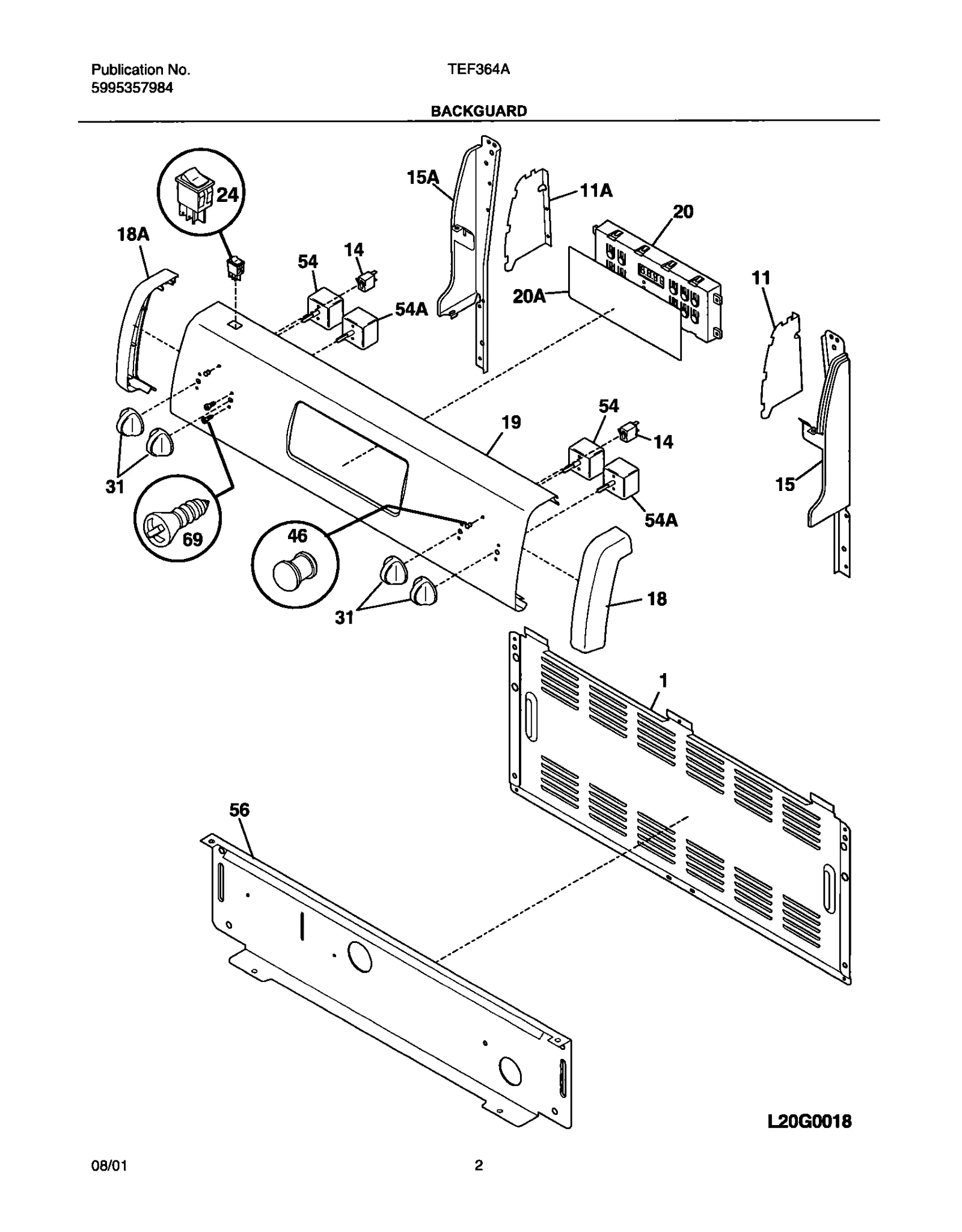

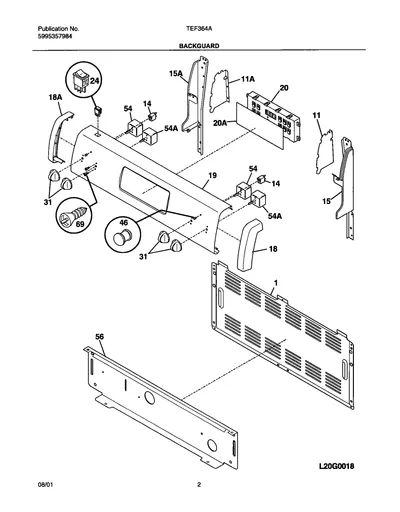

BACKGUARD
Parts in BACKGUARD
21 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | Shield,backguard ,rear wall | - |
| 11 | | Shield,end cap ,RH | - |
| 11A | | Shield,end cap ,LH | - |
| 14 |  | LIGHT/LAMP, INDICATOR, 250 V (NOT ILLUSTRATED) | $45.42 Parts Dr |
| 15 | | 316220214replaces 316220202 Support,backguard ,white ,RH | - |
| 15A |  | 316220215replaces 316220203 Support,backguard ,white ,LH | - |
| 18 | | 316240900NLA End Cap,white ,RH | Discontinued |
| 18A | | End Cap,white ,LH | - |
| 19 | | 316244412NLA Panel,backguard ,white | Discontinued |
| 20 | | 316207522replaces 316222902 Clock/timer,electronic | - |
| 20A | | Overlay,clock ,white | - |
| 24 |  | 5304527842replaces 316246000 Switch,rocker ,white ,oven light | $6.16 Part Advantage |
| 31 |  | KNOB-CONTROL, INFINITE SW, WHITE, (4) | $36.54 Parts Dr |
| 46 |  | 318228310replaces 316040201 LENS-LIGHT/LAMP, INDICATOR, RED, (4) | $6.54 Part Advantage |
| 54 |  | 316436000replaces 316021500 Switch,infinite ,small element | $42.55 Part Advantage |
| 54A |  | 316436001replaces 316021501 Switch,infinite ,large element | $22.25 Part Advantage |
| 56 | | Shield,backguard ,white ,inner | - |
| 69 |  | Screw,truss sqdr ,8-32 x 3/16 ,switch mtg | $2.70 RepairClinic |
| NI |  | 316021109replaces 316021110 Screw,8-18 x 0.5 ,black | $8.20 Part Advantage |
| NI |  | 131243700replaces 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome | $1.96 Part Advantage |
| NI | | Screw,8-18 x 0.5 ,chrome | $8.20 Part Advantage |
